ViPR Controller : Discovery failed for Storage System ECS
Summary: When an ECS storage system is added to ViPR, the discovery of the system fails.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
This is a new ViPR implementation.

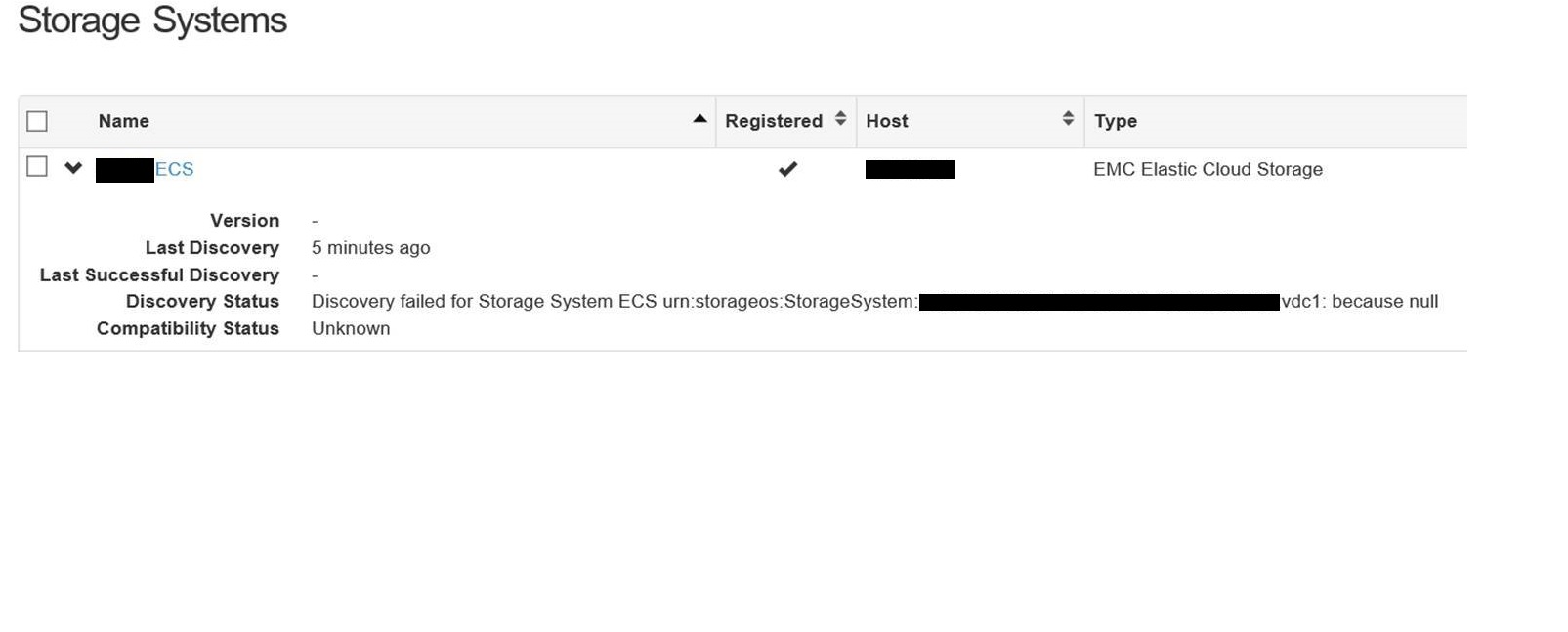

After adding an Elastic Cloud Storage system to VIPR, the discovery of the ECS fails.
ViPR UI Error:
"Discovery failed for Storage System ECS urn:storageos:StorageSystem:4290412e-d8f2-40f3-8ad4-67783bfa4d78:vdc1: because null"
After adding an Elastic Cloud Storage system to VIPR, the discovery of the ECS fails.
ViPR UI Error:
"Discovery failed for Storage System ECS urn:storageos:StorageSystem:4290412e-d8f2-40f3-8ad4-67783bfa4d78:vdc1: because null"
Cause

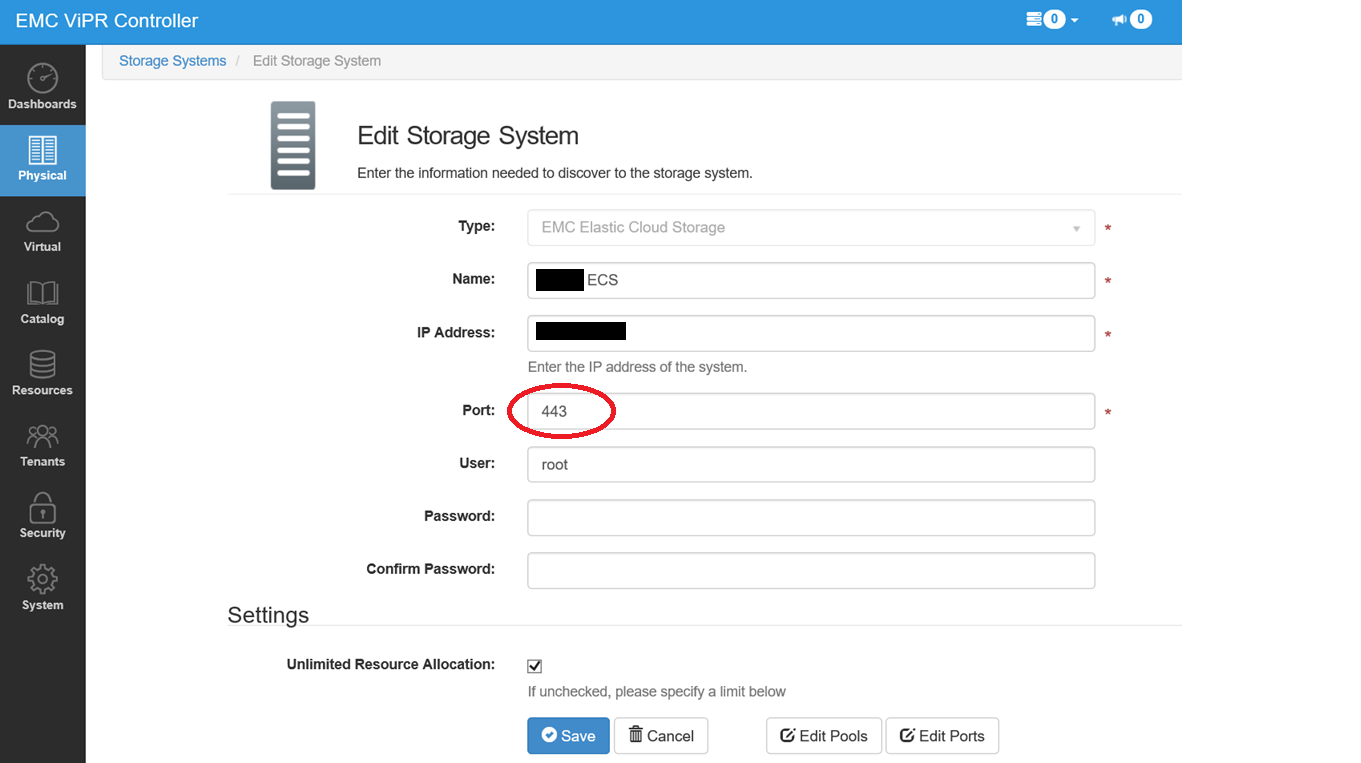

When adding the ECS to ViPR, the incorrect Port number (443) was inputted.
Resolution
The Port 4443 should be used when adding an Elastic Cloud Storage to ViPR.
Additional Information
ViPR Log
vipr3 vipr3 controllersvc 2017-07-24 10:01:37,651 [148|ecs|Discovery|10.10.10.10|2dc7d333-2f1f-4ca9-970e-55c0fceb9851] INFO Operation.java (line 169) Setting operation to error due to an exception -Untranslated message (locale=en_US, bundle=Discovery failed for Storage System ECS urn:storageos:StorageSystem:4290412e-d8f2-40f3-8ad4-67783bfa4d78:vdc1: because null, key=null, arguments=null)
vipr3 vipr3 controllersvc 2017-07-24 10:01:37,651 [148|ecs|Discovery|10.10.10.10|2dc7d333-2f1f-4ca9-970e-55c0fceb9851] INFO Operation.java (line 171) Caused by: {}
com.emc.storageos.plugins.metering.ecs.ECSCollectionException: Untranslated message (locale=en_US, bundle=Discovery failed for Storage System ECS urn:storageos:StorageSystem:4290412e-d8f2-40f3-8ad4-67783bfa4d78:vdc1: because null, key=null, arguments=null)at com.emc.storageos.volumecontroller.impl.plugins.ECSCommunicationInterface.discover(ECSCommunicationInterface.java:287)
vipr3 vipr3 controllersvc 2017-07-24 10:01:37,651 [148|ecs|Discovery|10.10.10.10|2dc7d333-2f1f-4ca9-970e-55c0fceb9851] INFO Operation.java (line 169) Setting operation to error due to an exception -Untranslated message (locale=en_US, bundle=Discovery failed for Storage System ECS urn:storageos:StorageSystem:4290412e-d8f2-40f3-8ad4-67783bfa4d78:vdc1: because null, key=null, arguments=null)
vipr3 vipr3 controllersvc 2017-07-24 10:01:37,651 [148|ecs|Discovery|10.10.10.10|2dc7d333-2f1f-4ca9-970e-55c0fceb9851] INFO Operation.java (line 171) Caused by: {}
com.emc.storageos.plugins.metering.ecs.ECSCollectionException: Untranslated message (locale=en_US, bundle=Discovery failed for Storage System ECS urn:storageos:StorageSystem:4290412e-d8f2-40f3-8ad4-67783bfa4d78:vdc1: because null, key=null, arguments=null)at com.emc.storageos.volumecontroller.impl.plugins.ECSCommunicationInterface.discover(ECSCommunicationInterface.java:287)
Article Properties
Article Number: 000171597
Article Type: Solution
Last Modified: 20 Oct 2025
Version: 4
