PowerEdge：配备标准散热器的服务器的空闲 CPU 温度较高
摘要: 当服务器处于空闲状态时，CPU 可能被认为很热。
本文适用于
本文不适用于
本文并非针对某种特定的产品。
本文并非包含所有产品版本。
症状
当作系统 （OS） 处于空闲状态时，配置了较低功率处理器的服务器可能看起来很热。
原因
标准散热器不具有与高性能散热器相同的冷却特性。这就是为什么它们被严格限制为低功率处理器的原因。
解决方案
这是正常现象。
功率较低的 CPU 附带标准散热器。高性能散热器不适用于具有较低功率 CPU 的系统。
安装和服务手册 （ISM） 概述了基于功率的 CPU 到散热器。
所有标准散热器都旨在在高负载下为处理器提供足够的散热。
预计在空闲期间会遇到更高的温度。这不是故障或缺陷。
空闲状态下的处理器温度可能未达到 CPU 目标温度，无法在这些空闲时间触发高风扇输出。CPU 温度在规格范围内。
如果习惯于使用高功率 CPU 和高性能散热器，这可能被认为很高。这些 CPU 温度在规格范围内。
这适用于所有 AMD 和英特尔处理器，无论型号如何。
如果冷却是一个问题，可以在 iDRAC UI 中修改散热响应和风扇调整。
- 散热配置文件优化 -允许多个设置。最大性能可在空闲时提供更高的风扇速度。
- 风扇速率偏移 - 允许在基准风扇速率的基础上增加风扇速率（按偏移百分比值）。
- 阈 值- 可以使用此选项设置最低风扇速率。

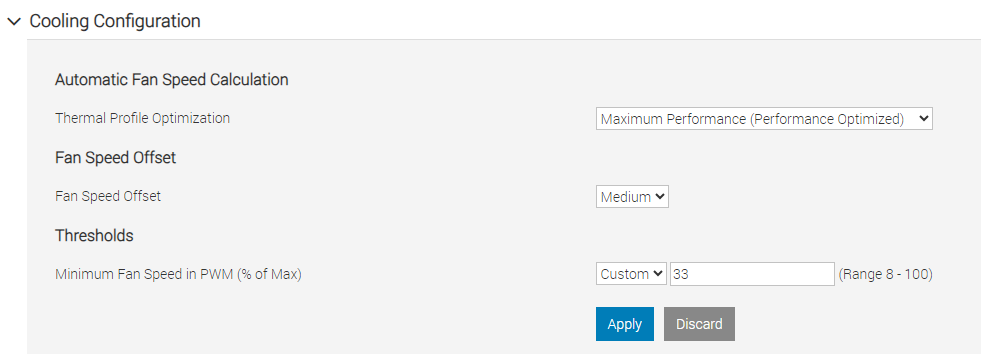

图 2：冷却配置
这些选项允许用户自定义调整冷却，以降低空闲时处理器感知到的高温。有关更多信息，请参阅 iDRAC9 用户指南，了解如何使用 iDRAC Web 界面修改散热设置。
受影响的产品
AX-640, ax-650, AX-6515, AX-740XD, AX-750, AX-7525, AX-760, Dell EMC XC Core XC450, Dell EMC XC Core XC650, Dell EMC XC Core XC6520, Dell EMC XC Core XC740xd2, Dell EMC XC Core XC750, Dell EMC XC Core XC750xa, Dell EMC XC Series XC640 Appliance
, Dell EMC XC Core XC640 System, Dell XC Core XC660, Dell XC Core XC660xs, Dell EMC XC Series XC740xd Appliance, Dell EMC XC Core XC740xd System, Dell XC Core XC760, Dell XC Core XC760xa, Dell XC Core XC7625, Dell EMC XC Series XC940 Appliance, Dell EMC XC Core XC940 System, Storage Spaces Direct R440 Ready Node, Storage Spaces Direct R640 Ready Node, Storage Spaces Direct R740xd Ready Node, Storage Spaces Direct R740xd2 Ready node, OEMR XL R470, OEMR XL R570, OEMR XL R670, OEMR XL R770, OEMR R240, OEMR R250, OEMR XE R250, OEMR R260, OEMR XE R260, OEMR R340, OEMR R350, OEMR XE R350, OEMR R360, OEMR XE R360, OEMR R440, OEMR R450, OEMR R540, OEMR R550, OEMR R5500, OEMR R640, OEMR XL R640, OEMR R6415, OEMR R650, OEMR R650xs, OEMR R6515, OEMR R6525, OEMR R660, OEMR XL R660, OEMR R660xs, OEMR R6615, OEMR R6625, OEMR R740, OEMR XL R740, OEMR R740xd, OEMR XL R740xd, OEMR R740xd2, OEMR R7415, OEMR R7425, OEMR R750, OEMR R750xa, OEMR R750xs, OEMR R7515, OEMR R7525, OEMR R760, OEMR R760xa, OEMR R760XD2, OEMR XL R760, OEMR R760xs, OEMR R7615, OEMR R7625, OEMR R840, OEMR R860, OEMR R940, OEMR R940xa, OEMR R960, OEMR T140, OEMR T150, OEMR T340, OEMR T350, OEMR T360, OEMR T440, OEMR T550, OEMR T560, OEMR T640, OEMR XL T640, OEMR XL R240, OEMR XL R340, OEMR XL R660xs, OEMR XL R6615, OEMR XL R6625, OEMR XL R6715, OEMR XL R6725, OEMR XL R760xs, OEMR XL R7615, OEMR XL R7625, OEMR XL R7715, OEMR XL R7725, PowerEdge HS5610, PowerEdge HS5620, PowerEdge R240, PowerEdge R250, PowerEdge R260, PowerEdge R340, PowerEdge R350, PowerEdge R360, PowerEdge R440, PowerEdge R450, PowerEdge R470, PowerEdge R540, PowerEdge R550, PowerEdge R570, PowerEdge R640, PowerEdge R6415, PowerEdge R650, PowerEdge R650xs, PowerEdge R6515, PowerEdge R6525, PowerEdge R660, PowerEdge R660xs, PowerEdge R6615, PowerEdge R6625, PowerEdge R670, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R750, PowerEdge R750XA, PowerEdge R750xs, PowerEdge R7515, PowerEdge R7525, PowerEdge R760, PowerEdge R760XA, PowerEdge R760xd2, PowerEdge R760xs, PowerEdge R7615, PowerEdge R7625, PowerEdge R770, PowerEdge R7715, PowerEdge R7725, PowerEdge R840, PowerEdge R860, PowerEdge R940, PowerEdge R940xa, PowerEdge R960, PowerEdge T140, PowerEdge T150, PowerEdge T160, PowerEdge T340, PowerEdge T350, PowerEdge T360, PowerEdge T440, PowerEdge T550, PowerEdge T560, PowerEdge T640, PowerEdge XE2420, PowerEdge XE7100, PowerEdge XE7420, PowerEdge XE7440, PowerEdge XE7740, PowerEdge XE7745, PowerEdge XE8545, PowerEdge XE8640, PowerEdge XE9640, PowerEdge XE9680, PowerEdge XE9680L, PowerEdge XE9685L, PowerFlex appliance R650, PowerFlex appliance R6525, PowerFlex appliance R660, PowerFlex appliance R6625, Powerflex appliance R750, PowerFlex appliance R760, PowerFlex appliance R7625, PowerFlex custom node R650, PowerFlex custom node R6525, PowerFlex custom node R660, PowerFlex custom node R6625, PowerFlex custom node R750, PowerFlex custom node R760, PowerFlex custom node R7625, PowerFlex custom node R860, VxFlex Ready Node R640, VxFlex Ready Node R740xd, Dell EMC vSAN R440 Ready Node, Dell EMC vSAN R640 Ready Node, Dell EMC vSAN R6415 Ready Node, Dell EMC vSAN R650 Ready Node, Dell EMC vSAN R6515 Ready Node, vSAN Ready Node R660, Dell vSAN R6615 Ready Node, Dell EMC vSAN R740 Ready Node, Dell EMC vSAN R740xd Ready Node, Dell EMC vSAN R750 Ready Node, Dell EMC vSAN R7515 Ready Node, Dell EMC vSAN R760 Ready Node, Dell vSAN R7615 Ready Node, Dell vSAN Ready Node R7625, Dell EMC vSAN R840 Ready Node, Dell EMC vSAN T350 Ready Node, PowerFlex appliance R640, PowerFlex appliance R740XD, PowerFlex appliance R7525, PowerFlex appliance R840, VxFlex Ready Node R840, Dell EMC XC Core XC7525
...
