PowerEdge：配備標準散熱器的伺服器閒置 CPU 溫度較高
摘要: 伺服器閒置時，可能會認為 CPU 很燙。
本文章適用於
本文章不適用於
本文無關於任何特定產品。
本文未識別所有產品版本。
症狀
當作業系統 （OS） 閒置時，配置低瓦數處理器的伺服器可能會看起來很熱。
原因
標準散熱器的散熱特性不如高效能散熱器。這就是為什麼它們嚴格限制在低瓦數的處理器上。
解析度
此為設計運作方式。
較低瓦數 CPU 會隨附標準散熱器。高效能散熱器不適用於具備低瓦數 CPU 的系統。
安裝與維修手冊 （ISM） 根據瓦數列出 CPU 至散熱器的輪廓。
所有標準散熱器的設計均可在負載沉重時，為處理器提供足夠的散熱能力。
預計在空閒時間會遇到更高的溫度。這不是故障或缺陷。
閒置時的處理器溫度可能無法達到 CPU 目標溫度，以在閒置期間觸發高風扇輸出。CPU 溫度符合規格。
如果習慣使用高瓦數 CPU 和高效能散熱器，則可能會認為此瓦數很高。這些 CPU 溫度符合規格。
這適用於所有 AMD 和 Intel 處理器，無論其型號為何。
如果考慮散熱，可在 iDRAC UI 中修改散熱回應和風扇調整。
- 散熱設定檔最佳化 -允許多個設置。最大效能可在閒置時提供更高的風扇速度。
- 風扇速度偏移 - 可讓風扇速度比基準風扇速度增加 （按偏移百分比值）。
- 閾值 - 可使用此選項設定最低風扇速度。

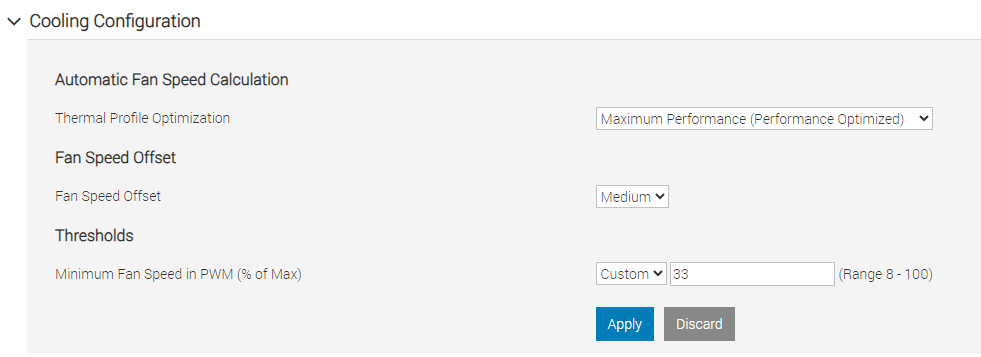

圖 2：散熱組態
這些選項可讓使用者自訂調整散熱，以降低處理器閒置時的高溫。如需詳細資訊，請參閱 iDRAC9 使用者指南，以瞭解如何使用 iDRAC Web 介面修改散熱設定。
