Highly efficient microserver in a shared-infrastructure chassis
Improve your hosting, performance, cooling and efficiency with up to 12 high-density PowerEdge™ C5220 microservers in a PowerEdge C5000 chassis.
Call for Pricing
Gallery
360° View
Video

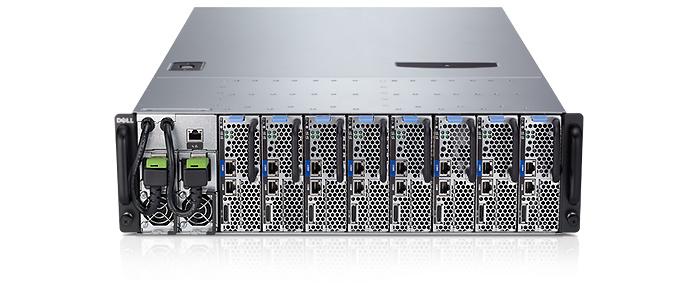

No compromising
Get everything you want without buying more than you need with the PowerEdge C5220 microserver. This scale-out, highly serviceable, hyperefficient microserver offers increased density to help save cost, energy, rack space and cabling.
Put your microserver to work
Each independent PowerEdge C5220 hot-plug server is mounted on a small sled that slides vertically into the 3U PowerEdge C5000 chassis. Up to 12 such nodes together provide up to four times the density of three traditional single-node 1U rack servers. The compact system is ideal for:- Hosting: Help maximise your productivity per square foot with high server-node density and a shared infrastructure that enables efficient cooling and cabling for cloud system infrastructure and dedicated, virtualised, shared, root-access or SQL hosting.
- Web 2.0: Fill your need for a web file, front-end, fast-loading web content server.
- CDN: Help amplify content delivery network (CDN) efficiency for media content storage and distribution, including audio, video, Javascript, and CSS and XML elements.
Cut, save and simplify
Take advantage of the PowerEdge C5220 microserver design to help build a cost-effective data centre that doesn't sacrifice performance. Shared fans and components help provide greater performance per watt than traditional 1U servers.
Cut costs
The PowerEdge C5220 packs up to 12 microservers in a 3U PowerEdge C5000 chassis, sharing power and cooling resources and using only a fraction of the cooling fans compared to a stack of 1U servers.
Save space
With up to 12 server nodes, the 3U PowerEdge C5000 chassis has four times the density of three traditional single-socket 1U servers stacked together, enabling more computing power per U of rack space.
Simplify servicing
Power supplies, interconnect and servers are all cold-aisle accessible, giving you the flexibility to raise the temperature of your data center and thus lower cooling costs.
Inside the PowerEdge C5220
You can see that the PowerEdge C5220 microserver and C5000 chassis are designed for efficiency. The 3U chassis features an optimised shared infrastructure designed to support up to 12 compact Intel®-powered microservers that are inserted on vertically mounted sleds. Each has a rich feature set that helps you get the job done while helping cut costs, save space and simplify serviceability.- Processor
Intel Xeon® E3-1200 processor with 2 or 4 cores supports up to 65W thermal design power (TDP) for the 12-sled microserver and up to 95W TDP for the 8-sled version. - Memory options
Four DIMM slots for up to 32GB DDR3 ECC UDIMM (1333 MHz); two DIMMs per channel - Drive options
- 2.5" SATA/SAS (max 4 per server)
- 3.5" SATA/SAS (max 2 per server)
- Mezzanine options
8-sled version only:- LSI® 2008 SAS
- Intel dual port 1GbE
- Intel dual port 10GbE NIC
Processor
- 1-socket, 2 or 4 cores per processor supporting up to 65W TDP for the 12-sled
1-socket, 2 or 4 cores per processor supporting up to 95W TDP for the 8-sled
Intel® Xeon™ E3-1200 series or Core i3-2120
Core i3-2120 & E3-1220L L2/L3 cache: 3MB, E3-12xx L2/L3 cache: 8MB
Operating System
- Novell® SUSE® Linux® Enterprise Server 11 SP1
Red Hat® Enterprise Linux 6.1
Windows® Server 2008 R2 Enterprise x64 SP1
Windows HPC Server 2008 R2 x64 SP1
Chipset
- Intel C204
Memory*
Storage
- Maximum internal storage: 4TB SATA or 6TB SAS
Drive Bays
- 4 x 2.5” or 2 x 3.5” hard drive options
2.5” SATA (7.2K RPM): 500GB
2.5” SAS (10K): 300GB, 600GB
2.5” SAS (15K): 146GB
3.5” SATA (7.2K RPM): 500GB, 1TB, 2TB
3.5” SAS (15K): 600GB
3.5” NL SAS (7.2K RPM): 3TB
Slots
- 1 x8 PCIe mezz card slot – only available on the 8-sled version
Drive Controllers
- Onboard Intel C204 or LSI® 2008 SAS (mezz card option)
RAID Controllers
- Intel C204 RAID: 0, 1, 5, 10, LSI 2008 SAS RAID: 0, 1, 1E, 10
Network Controller
- Embedded Intel 82580DB
Video Card
- Integrated AST2050 with 128MB RAM
Option: Y-cable features single VGA
Chassis
- 3u rack mount
Width: 44.8 cm (17.6 Inches)
Depth: 75 cm (29.5 Inches)
Weight: Minimum/ Maximum for 8 sled: 18.3 kg (40.34 lbs.), 45 kg (99.21 lbs.)
Minimum/ Maximum for 12 sled: 19.3 kg (42.55 lbs.), 51.22 kg (112.92 lbs.)
Ports
Option : Y-cable featuring 2 x USB ports
Management
- Services
(Availability varies by region. Please contact your sales representative for details.)
Infrastructure Consulting Services
Rack Integration (U.S. only, not available in China)
Onsite Deployment
Basic Support with Next Business Day response service
ProSupport with Next Business Day or Same Day 4 hour response service
Keep Your Hard Drive
Enterprise Wide Contract
Specialized Onsite Services
Server Management
Embedded BMC with IPMI 2.0 support with 1 x 10/100 Mbps RJ45 connector via the chassis (dedicated) or 1 x NIC port (shared) on the individual sled
Hypervisors (Optional)
Citrix® XenServer® 5.6
Microsoft® Server 2008 Hyper-V™
VMware® ESX 5.0
VMware ESXi 5.0
Regulatory
Connectivity
- Embedded Intel 82580DB
