Powerconnect 7048 stack witch SFP+ module

Question

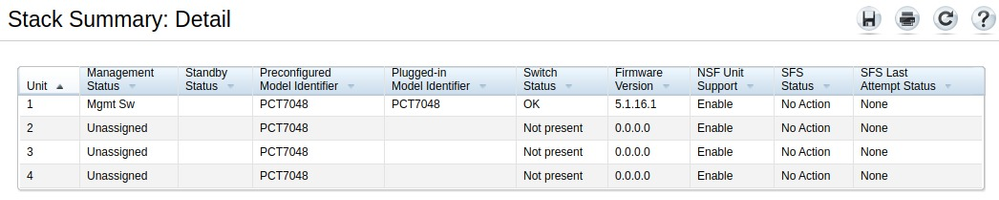

I have 4 Powerconnect 7048 with SFP+ rear modules and the cables connected as in the official documentation, but I can't stack, always having the message Unassigned.I did these steps:enconfshow switch stack-portsstackstack-port Tengigabitethernet X/1/1 stackstack-port Tengigabitethernet X/1/2 stackendcopy running-config startup-configreloadHow to make it work? Thanks

DELL-Josh Cr · Accepted Answer

Hi Kardeco,

Unfortunately, stacking is only supported on the CX-4 modules. Page 4 https://dell.to/3ufgqaT So you will need to use different modules from the SFP+ modules. Let us know if you have any additional questions.

DELL-Josh Cr · Accepted Answer

The part number for the stacking module is RNDV3. The part number for long cables is 10XNR. The part number for short cables is HFT7J.

Kardeco · Answer

Thank you Josh.Can you tell me the Part# of the CX4 and the cables (I need two short, and two long)?Thanks
