Problem with second power supply on PowerConnect 8132
Hello!
I have a great switch Dell PowerConnect 8132 with 2 power supply. But second (or left) not activated.
I'm rotate power supply one on over, no result. Both power supply is working (green light on back).

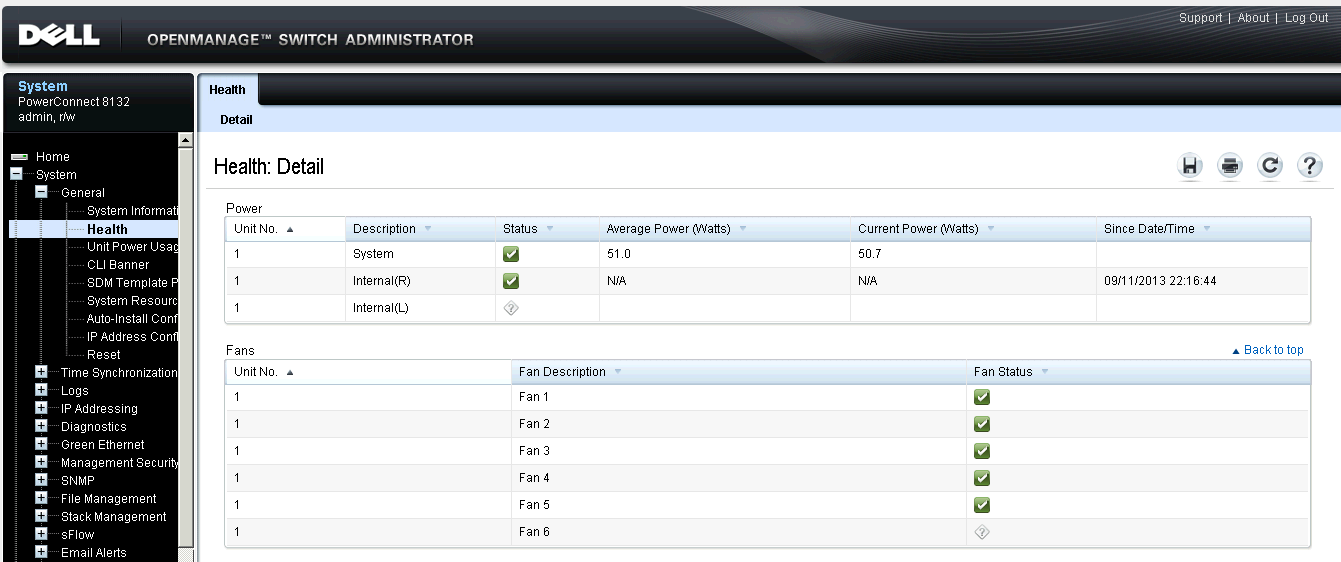

In picture you can see a problem.
I'm update firmware, now 5.1.1.7.
Maybe exist command or something to re-initialize\re-scan switch components ?
No Events found!
amfibrahii
6 Posts
0
September 12th, 2013 23:00
Thx for answer, Daniel
#show system
Unit Description Temperature Status
(Celsius)
---- ----------- ----------- ------
1 MAC 36 Good
1 CPU 34 Good
1 PHY (left side) 31 Good
1 PHY (right side) 32 Good
Fans:
Unit Description Status
--More-- or (q)uit
---- ----------- ------
1 Fan 1 OK
1 Fan 2 OK
1 Fan 3 OK
1 Fan 4 OK
1 Fan 5 OK
1 Fan 6 Not present
Power Supplies:
Unit Description Status Average Current Since
Power Power Date/Time
(Watts) (Watts)
---- ----------- ----------- ---------- -------- -------------------
1 System OK 41.4 41.6
1 Internal(R) OK N/A N/A 09/13/2013 12:54:56
1 Internal(L) Not present
USB Port Power Status:
----------------------
Device Not Present
bezdomnikov-ev
9 Posts
0
September 15th, 2013 09:00
Hello, Daniel!
Thank you for answer.
1. AC is fine.
2. We tried both variants- with and without UPS- same result.
3. Yes, we swapped cables, also swapped PSU, no result.
We called in ProSupport and on next week will deliver the new switch.
Thx.
