Optiplex 7090 micro third video connector

https://www.dell.com/en-us/shop/pfydresults/272225?page=2&categoryId=2999

I found this with Dell parts lookup, but the description is different from the model entered.

Hi @DELL-Chris M - Is the above part correct for adding an HDMI port to a 7090 Micro or how can the correct part be found?

I don't know. But what I wanted to post ...

Just because your machine might eventually end-up with 3 video ports (still using mostly on-board video-card-circuit)  ... I would not assume that all three can be used concurrently.

... unless you saw it explicitly mentioned somewhere in the official Dell manuals and/or documentation.

It's just a little micro-class system (basically a laptop without a built-in display).

Optiplex 7090 MFF Multiple display support matrix

brad has found this Part Y1XDH which is optional HDMI port c/w 7080 MFF and 7090 MFF.

This product is compatible with the following systems:

• OptiPlex 3070 MFF
• OptiPlex 3080 MFF
• OptiPlex 5060 MFF
• OptiPlex 5070 MFF
• OptiPlex 5080 MFF
• OptiPlex 5090 MFF
• OptiPlex 7000 MFF
• OptiPlex 7000 XE MFF
• OptiPlex 7060 MFF
• OptiPlex 7070 MFF
• OptiPlex 7080 MFF
• OptiPlex 7090 MFF

brad posted multiple display matrix is for discrete graphics card RX640 (1 DP, 2 mDP), which OP does not have, while Tesla was discussing integrated graphics (2 DP).

for 7090 Intel 11th gen cpu integrated UHD 750 graphics, max three display is supported.  you can connect three monitors, two to the 2 DP, third to optional video port.

• Processor Graphics  Intel UHD Graphics 750
• Graphics Video Max Memory64 GB
• 4K SupportYes, at 60Hz
• Max Resolution (HDMI) 4096x2160@60Hz
• Max Resolution (DP) 5120 x 3200 @60hz
• # of Displays Supported  3

Well I guess we'll see when the part shows up and I install it, but that's exactly the assumption I made. I can't imagine them offering an optional third monitor port that is either not going to work or is going to disable one of the other two when it does. ...

Like I said, we'll see when it gets installed. I'll report back.

If you order from Dell or other vendor, the part may not include 2x M3 3 mm screws you need to mount the port.  If you need the part number,

@redxps630 - So where did you pick up on matrix link I posted is for RX 640?  I ask because it only shows up if I tap on "discrete graphics."  And of course, tapping on "integrated graphics" shows another matrix.  Naturally, I thought the link I posted was for integrated graphics since form factor is micro.

It should not disable the other 2 ports.  Haven't heard of it yet.  Typically, the only scenario that disables onboard ports is if a graphics card is added in the larger systems - MT, DT, & SFF.

Intel Graphics for 11th Generation Intel® Processors (7090)

Graphics controllers support up to three streaming independent and simultaneous display combinations of DisplayPort*, eDP*, HDMI*, DVI, or Thunderbolt monitors.

PS for brad, the matrix you posted mentioned mDP, which is only on discrete gpu.

Hi, 0YPF8G in a 7020 (i5-14500) is capable to 5k (5120x1440)? There are only one version of 0YPF8G or many? If i bought a 7090's original 0YPF8G will reach 5k?

Thank's!

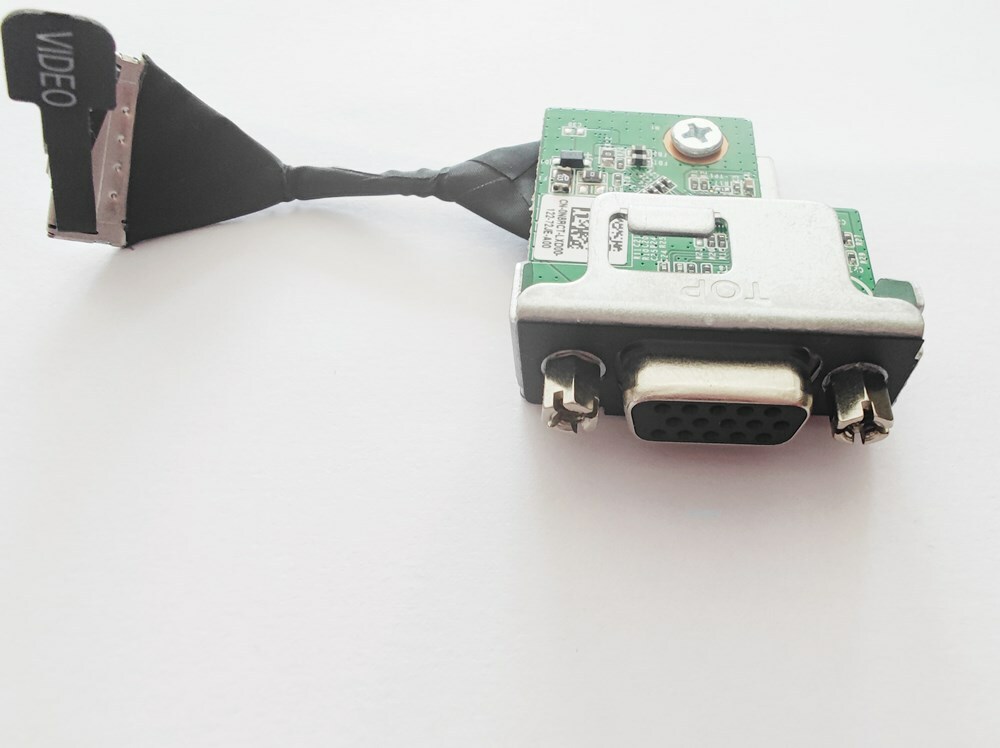

@redxps630​ thanks for the list, any other source to reconfirm N8RCT VGA port can work on a MFF 7090/7080 bec on eBay shows that part for MT and SFF models;
I bought by error 0R8N2K and won't connect to MB
