RAID 10 - three Hard Drive Failed
hi guys,

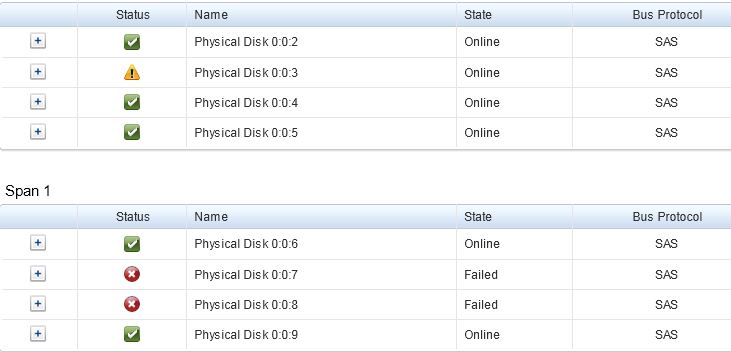

i have RAID 10 with total of 8 Hd, 1 out of 8 is predicted failed, also 2 of them are Failed, i can swap and rebuild the Predicted Failed Drive , but i am just worried with my other 2 Failed Drives, what are my chances of lose the RAID and Data ?i do have a full back of that drive, any suggestion,,
Thanks
0 events found
No Events found!
DELL-Josh Cr
Moderator
•
9.6K Posts
•
42.1K Points
0
January 31st, 2017 16:00
Hi,
Which model server is this? Which controller are you using? I would export the controller logs to make sure that disks 6 and 9 do not have any errors on them, if they don't check 7 and 8 for errors and if they don't rebuild them and if they do replace them. Then once they are online run a consistency check on the array and then offline drive 3 and replace it.
DELL-Josh Cr
Moderator
•
9.6K Posts
•
42.1K Points
0
February 2nd, 2017 09:00
That’s right.
DELL-Josh Cr
Moderator
•
9.6K Posts
•
42.1K Points
0
February 1st, 2017 15:00
Drive 7 and 8 just timed out, so you can rebuild them first.
shaikh_h1
3 Posts
0
February 1st, 2017 15:00
Good day sir,
Thank you so much for your response with regards to this matter,
our server is Dell Power Edge R510 ,with PERC H700, i am attaching the RAID Controllers logs capture today using Dset. Kindly take a look and advice.
[View:/cfs-file/__key/communityserver-discussions-components-files/906/ControllerTTYLog_5F00_Dell_5F00_PERC_5F00_H700_5F00_Integrated_5F00_Controller_5F00_0.rar:550:0]
shaikh_h1
3 Posts
0
February 2nd, 2017 09:00
Thanks you so much Sir,
just wanted to make sure one more thing ,I will bring the drive 7 to offline (if option is available) then swap out Drive 7 , let it rebuild and then do the same procedure with Drive 8 ?
Kindly reply.
Thanks.
