FAQ XPS 8960

XPS 8960 Service Manual

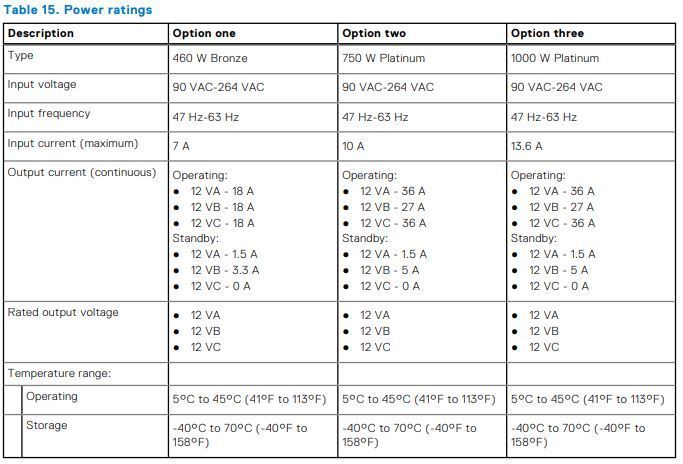

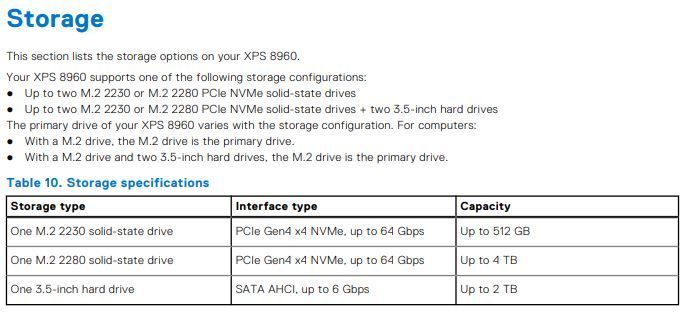

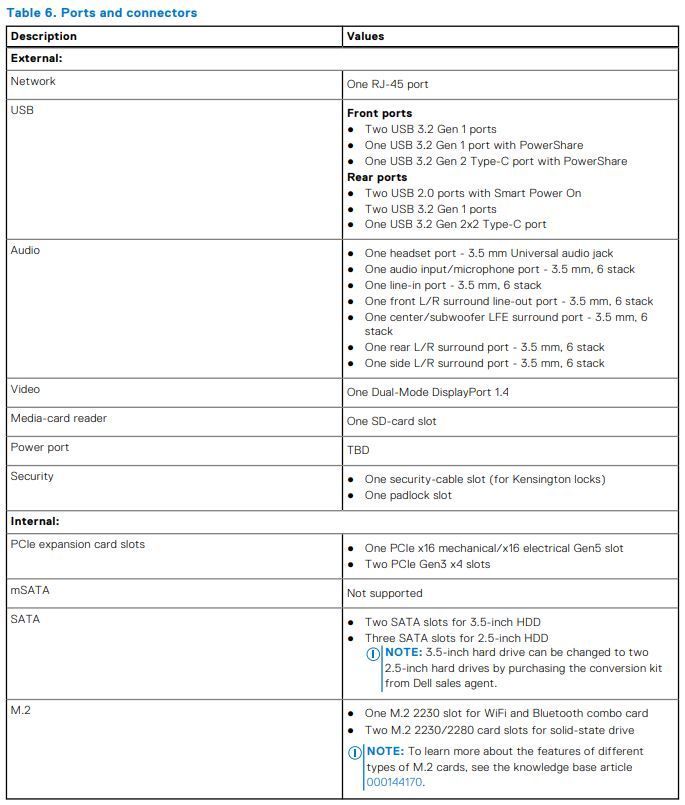

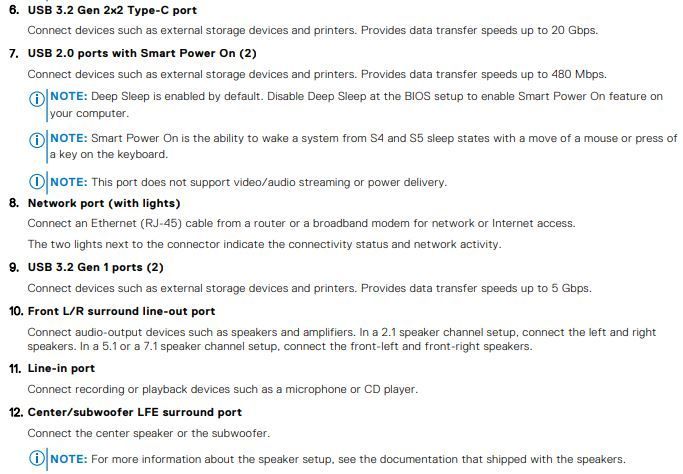

XPS 8960 Setup and Specifications

XPS 8960 sales specification sheet

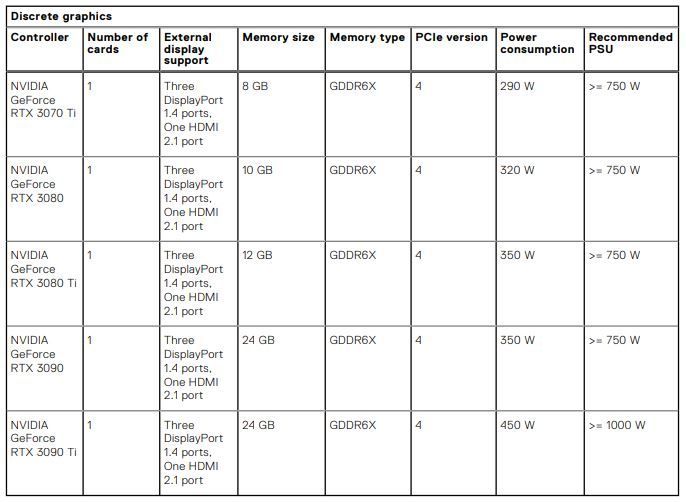

Validated OEM video cards =

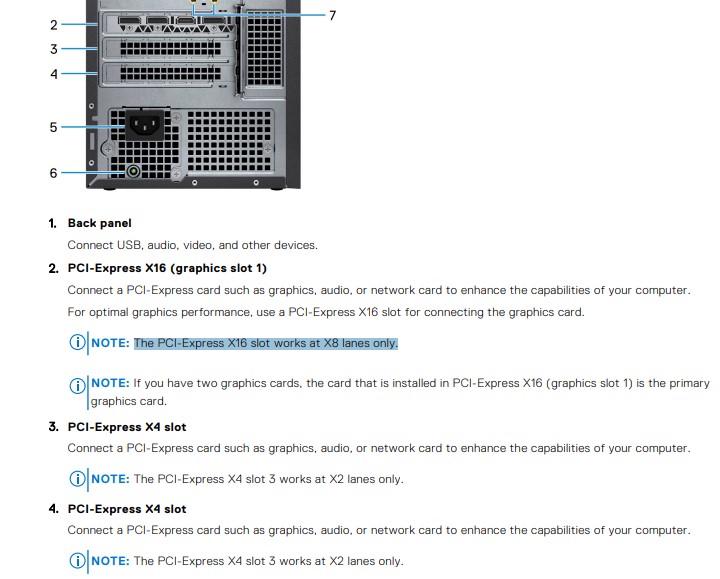

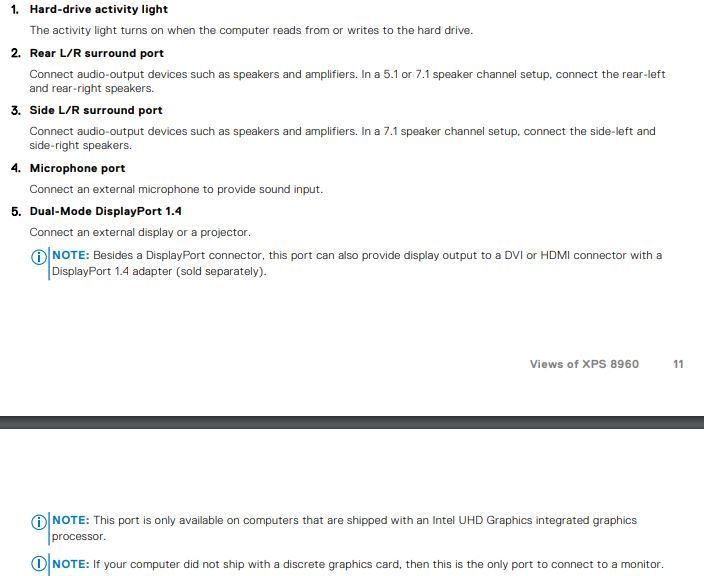

XPS 8960 Setup and Specifications PDF Page 11 =

G8V6C MSI Nvidia RTX 4090, 24GB GDDR6X, three fans
RRMCK MSI Nvidia RTX 4080, 16GB GDDR6X, three fans
TNWRD MSI Nvidia RTX 4070 Ti, V2, 16GB GDDR6X, three fans
CNV9G MSI Nvidia RTX 4070 Ti, 16GB GDDR6X, three fans
223P9 MSI Nvidia RTX 4070 Super, 16GB GDDR6X, three fans
HPPKD MSI Nvidia RTX 4070, 16GB GDDR6X, two fans
JJ5J7 MSI Nvidia RTX 3090 Ti 24GB GDDR6X, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
869P4 MSI Nvidia RTX 3090 24GB GDDR6X, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
MFKHD MSI Nvidia RTX 3080 Ti, 16GB GDDR6X, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
Y5K9F MSI Nvidia RTX 3080 LHR, 10GB GDDR6X, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
YNMXD MSI Nvidia RTX 3070 Ti, 8GB GDDR6, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
6N10C MSI Nvidia RTX 3070 8GB GDDR6, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
MTVG8 MSI Nvidia RTX 3060 Ti LHR, 8GB GDDR6, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
M49TT MSI Nvidia RTX 3060, 12GB GDDR6, M49TT (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
DKC8N MSI Nvidia RTX 3050, one fan (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
4WY5P ECS Nvidia GTX 1650 Super, one fan (DP/HDMI/DVI-I)

529XW MSI Intel DG2 ARC, two fans

DR1W0 MSI AMD RX 6900 XT, 16GB GDDR6, three fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
5KRF5 MSI AMD RX 6800 XT 16GB GDDR6, three fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
7RR0M MSI AMD RX 6700 XT Navi22, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
WNDM8 MSI AMD RX 6600 XT Navi23, one fan (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)
GJ6X7 MSI AMD RX 6500 XT, 4GB GDDR6, two fans (DP 1.4/DP 1.4/DP 1.4/HDMI 2.1)

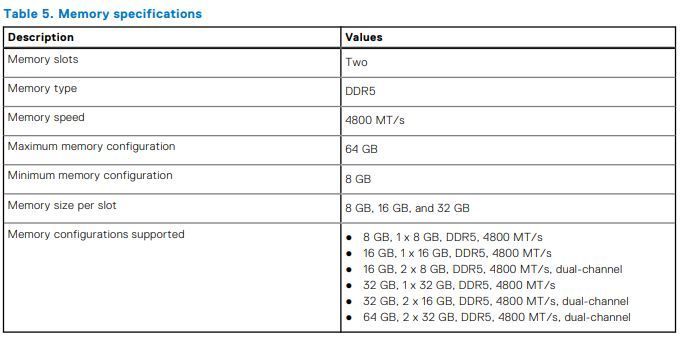

Validated OEM memory =

29NJ4 8GB, DDR5, 4800MHz, 1RX16, 1Gx64, Unbuffered, 288 pin, Single Rank, Non-ECC, Non-Encrypted
Hynix HMCG66MEBUA, HMCG66AEBUA
Micron MTC4C10163S1UC48BA1
Samsung M323R1GB4BB0-CQK

GDGT0 8GB, DDR5, 5600MHz, 1Gx64, Unbuffered, 288 pin, Single Rank, Non-ECC, Non-Encrypted
Adata AO2V56WC8W1-BH5S
Hynix HMCG66AGBUA
Kingston KGDGT0-HYA-I, KGDGT0-HYA-K, KGDGT0-MID-I, KGDGT0-MID-K
Micron MTC4C10163S1UC56BH1, MTC4C10163S1UC56BD1
Samsung M323R1GB4DB0-CWM, M323R1GB4PB0-CWM

K7G24 16GB, DDR5, 4800MHz, 1RX8, 2Gx64, Unbuffered, 288 pin, Single Rank, Non-ECC, Non-Encrypted
Hynix HMCG78MEBUA, HMCG78AEBUA
Kingston KK7G24-MIA-I
Micron MTC8C1084S1UC48BA1
Samsung M323R2GA3BB0-CQK

4N59R 16GB, DDR5, 5600MHz, 2Gx64, Unbuffered, 288 pin, Single Rank, Non-ECC, Non-Encrypted
Adata AO2V56WCSV1-BH0S, AO2V56WCSV1-BH9S
Hynix HMCG78AGBUA
Kingston K4N59R-HYA-I, K4N59R-HYA-K, K4N59R-MID-I, K4N59R-MID-K
Micron MTC8C1084S1UC56BH1, MTC8C1084S1UC56BD1
Samsung M323R2GA3DB0-CWM, M323R2GA3PB0-CWM, M323R2GA3EB0-CWM

WMMC0 32GB, DDR5, 4800MHz, 2RX8, Unbuffered, 288 pin, Dual Rank, Non-ECC, Non-Encrypted
Hynix HMCG88MEBUA, HMCG88AEBUA
Micron MTC16C2085S1UC48BA1
Samsung M323R4GA3BB0-CQK

8D9M0 32GB, DDR5, 5600MHz, Unbuffered, 288 pin, Dual Rank, Non-ECC, Non-Encrypted
Hynix HMCG88AGBUA
Micron MTC16C2085S1UC56BH1, MTC16C2085S1UC56BD1
Samsung M323R4GA3PB0-CWM, M323R4GA3EB0-CWM, M323R4GA3DB0-CWM

Validated OEM CPU =

915FC i9-14900K
26C04 i9-14900
21R78 i9-13900KF
25V1M i9-13900K
5XYPY i9-13900
M55HY i7-14700K
8DC0P i7-14700
DTF6F i7-13700KF
FW0C2 i7-13700F
H5WRC i7-13700K
VJFWR i7-13700
T0XNJ i5-14600
XY0CG i5-13600K
R08N6 i5-13600
TN62H i5-13500
3M6CJ i5-13400
