Data Domain: External key manager key-rotation failed to create key

Summary: External key manager key rotation failed to create key (warning EVT-ENCRYPTION-00008) occurs when the file system is down. It also occurs if Storage Management Service (SMS) or Key Management Interoperability Protocol daemon (KMIPD) processes are down, or if the external manager is unreachable. Resolve by manually creating a new encryption key using Command-Line Interface (CLI) or User Interface (UI) and verify that the next rotation date is updated. ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Key rotation failure indicators

When a key rotation policy is active, the system attempts to rotate encryption keys at the defined interval.

The filesys encryption key-manager show command displays the next scheduled rotation date.



Example:

# filesys encryption key-manager show
The current key-manager configuration is:
Key Manager:                                Enabled
Server Type:                                CipherTrust
Server:                                     xx.xxx.xx.xxx
Port:                                       5696
Status:                                     Online
Key-class:                                  test_doc
KMIP-user:                                  user1
Key rotation period:                        1 weeks
Last key rotation date:                     01:01:12 12/14 2022
Next key rotation date:                     01:01:00 12/21 2022
The system generates the following alert when automatic rotation does not succeed:

WARNING Filesystem EVT-ENCRYPTION-00008: External key manager key rotation failed to create key
  • Alert EVT-ENCRYPTION-00008 appears in system logs.
  • The encryption key is not created at the scheduled time.
  • The next key rotation date remains unchanged after the missed rotation.

Cause

Reasons for key rotation failure

The system logs warning EVT-ENCRYPTION-00008 when the external key manager cannot create a new key.

  • The file system is down at the scheduled rotation time.
  • The services SMS or kmipd are not running during rotation.
  • The external key manager cannot be reached from the appliance.
WARNING:  Automatic key rotation stops when any of these conditions occur.


Resolution


Rotate the encryption key manually or wait for the next Key rotation date.

Example:  Using command line




 # filesys encryption key-manager keys create
This command requires authorization by a user having a 'security' role.
Please present credentials for such a user below.
        Username: secadmin
        Password:
New encryption key was successfully created.

sysadmin@ddve4# filesys encryption key-manager show
The current key-manager configuration is:
Key Manager:                                Enabled
Server Type:                                CipherTrust
Server:                                     xx.xxx.xx.xxx
Port:                                       5696
Status:                                     Online
Key-class:                                  test_doc
KMIP-user:                                  user1
Key rotation period:                        1 weeks
Last key rotation date:                     20:27:47 12/20 2022
Next key rotation date:                     01:01:00 12/27 2022

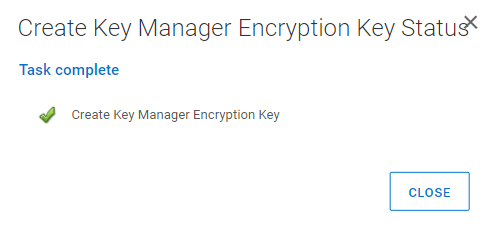

   Note:  The next key rotation period is updated appropriately. If manual key creation is not tried, then key rotation will be retried at the next set interval. Example: Using UI Log in to PowerProtect DD System Manager UI Go to "Data Management => File system => DD ENCRYPION => Key Manager Encryption Keys." Select "Add" Enter security username and password. Select "CREATE"




    Graphical user interface, text, application  Description automatically generated Graphical user interface, text, application  Description automatically generated
