Avamar: Proxy Deployment Manager nie wdraża proxy

Summary: Proxy Deployment Manager (PDM) nie wdraża proxy z komunikatem o błędzie "Failed with HTTP error code: 400", "Prośba wysłana przez klienta była niepoprawna składniowo."

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Proxy Deployment Manager nie wdraża proxy z komunikatem o błędzie "Failed with HTTP error code : 400", "The request sent by the client was syntactically incorrect”.

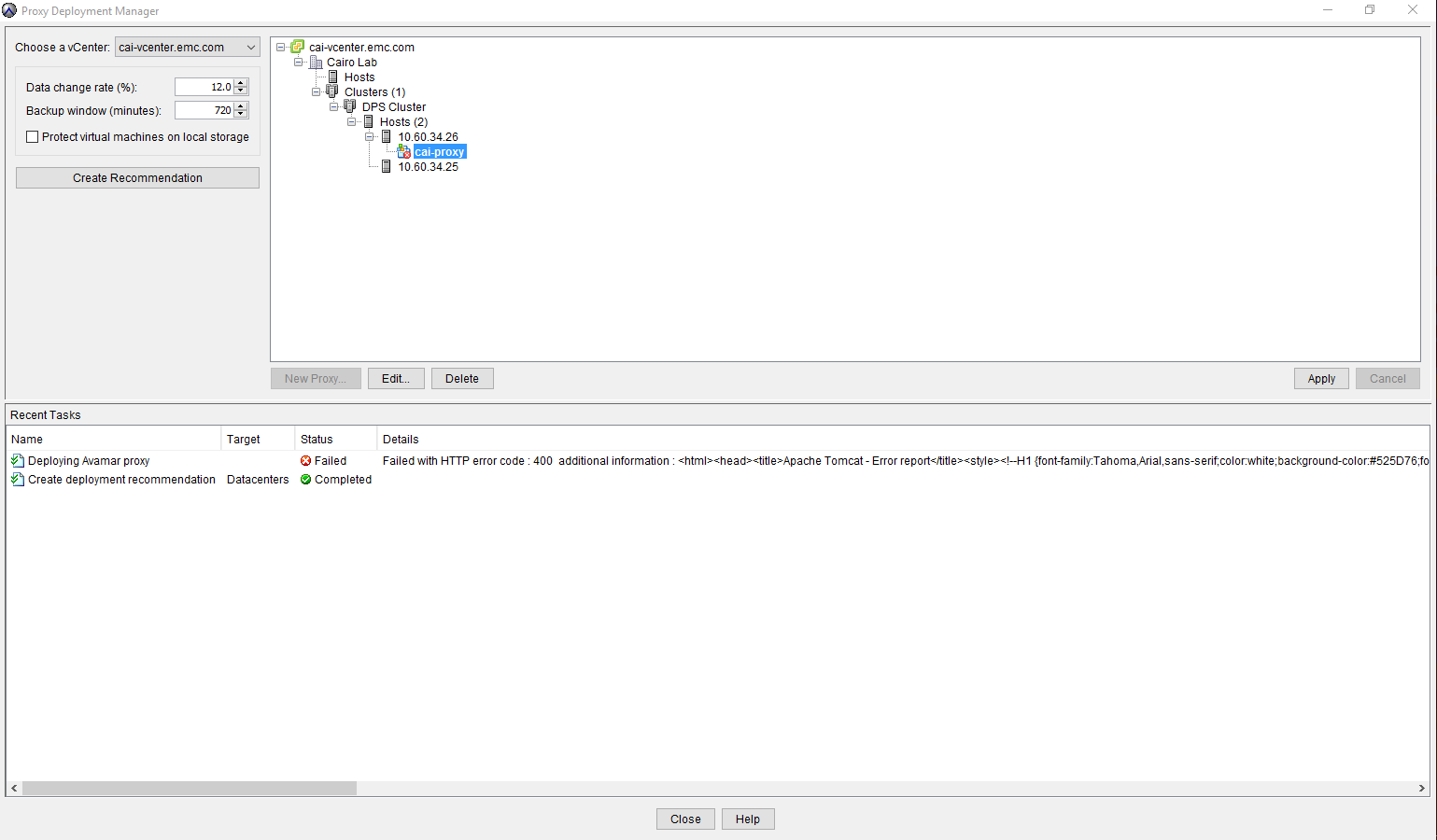

Zrzut ekranu przedstawiający komunikat o błędzie proxy


Z pliku dziennika Avamar MCS /usr/local/avamar/var/mc/server_log/mcserver.log.0, patrz poniższe ostrzeżenia:

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{
.
.
.
.
.
.
10/10-10:23:26.00489 com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 400
  additional information : <html><head><title>Apache Tomcat - Error report</title><style><!--H1 {font-family:Tahoma,Arial,s
ans-serif;color:white;background-color:#525D76;font-size:22px;} H2 {font-family:Tahoma,Arial,sans-serif;color:white;backgro
und-color:#525D76;font-size:16px;} H3 {font-family:Tahoma,Arial,sans-serif;color:white;background-color:#525D76;font-size:1
4px;} BODY {font-family:Tahoma,Arial,sans-serif;color:black;background-color:white;} B {font-family:Tahoma,Arial,sans-serif
;color:white;background-color:#525D76;} P {font-family:Tahoma,Arial,sans-serif;background:white;color:black;font-size:12px;
}A {color : black;}A.name {color : black;}HR {color : #525D76;}--></style> </head><body><h1>HTTP Status 400 - </h1><HR size
="1" noshade="noshade"><p><b>type</b> Status report</p><p><b>message</b> <u></u></p><p><b>description</b> <u>The request sent by the client was syntactically incorrect.</u></p><HR size="1" noshade="noshade"><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.updateRecommendation(ProxyDeploymentManagerService.java:185)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.deployProxy(ProxyDeploymentManagerService.java:206)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.j
ava:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy22.deployProxy(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.deployProxy(ProxyDeploymentManagerServiceContext.java:45)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)
10/10-10:23:28.00157 com.avamar.mc.cr.bcConnection.readClientMessage

Cause

Wyniki PDM tworzą rekomendację, w której pobierana jest hierarchia serwera vCenter (centra danych, klastry, hosty, magazyny danych i sieci). Jest on przechowywany w danych wyjściowych w formacie JSON zapisanych w pliku o nazwie, którą można znaleźć we wspomnianym wcześniej dzienniku MCS (mcserver.log.*). Ten plik JSON może znajdować się w obszarze /usr/local/avamar/var/vcs/dm/recommendations/.

10/10-10:23:26.00489 com.avamar.mc.pdm.ProxyDeploymentManagerService.logFailure
WARNING: uri=https://localhost:8543/deploymanager/recommend/7e259e93-2f04-4e73-90fb-a65ea889784c, header=X-CustomTicket=71b
e6487-c250-40a7-a2c1-5ee99753f2bd, body={"vcenter":"*******","user":"******","datacenters":[{

Jeden ze zwirtualizowanych komponentów serwera vCenter (w tym przypadku sieci) miał nieprawidłowy znak UTF-8, co spowodowało niepowodzenie wdrożenia proxy.

/usr/local/avamar/var/vcs/dm/recommendations/7e259e93-2f04-4e73-90fb-a65ea889784c.json

{"name":"Publica  o","mor":{"type":"Network","val":"network-73"}

Resolution

Ten problem spowodowała nazwa sieci z nieprawidłowym znakiem UTF-8 w żądaniu. Nadaj kontu Avamar w vCenter rolę braku dostępu na tym poziomie sieci lub zmień jego nazwę, usuwając nieprawidłową nazwę inną niż UTF-8.
