ViPR SRM - ECS Replication Groups Bootstrap progress(%) report display 100%, but has an orange/major alert.
Summary: Bootstrap progress(%)'s value is 100, the status should be normal, but report display orange alarm.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Report: Report Library-->emc ecs--> Inventory-->Replication Groups
Bootstrap progress(%)'s value is 100, the status should be normal, but report display orange alarm.
Cause
By default, the thresholds are incorrectly set.
Resolution

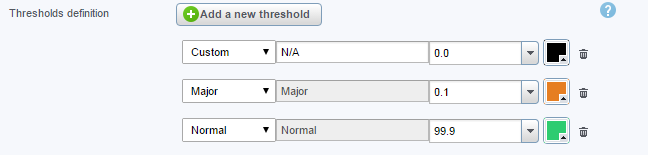

The thresholds are defined by the following:
Thresholds define Severity ranges. Ranges are defined by their lower boundary value, their upper boundary being defined by the next value in the Threshold sequence.
Hence the Major threshold will show as any value from 0.1 to 100 (the next value) in order to show 100% as green, we would have to change the Normal value to 99.9.
This would make sure that any value from 0.1 to 99.9 would be a major alert while a value of 100 would show as green and Normal
Thresholds define Severity ranges. Ranges are defined by their lower boundary value, their upper boundary being defined by the next value in the Threshold sequence.
Hence the Major threshold will show as any value from 0.1 to 100 (the next value) in order to show 100% as green, we would have to change the Normal value to 99.9.
This would make sure that any value from 0.1 to 99.9 would be a major alert while a value of 100 would show as green and Normal
