Basic SNMP (Simple Network Management Protocol) configuration on Dell EMC Networking X series switches.

Summary: Basic SNMP configuration on Dell X series switches.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content


Instructions

This article explains the step by step procedure of configuring SNMP on Dell EMC Networking X series switches.

Procedure


1. Login to Dell X series switch using web browser.
2. Navigate to Network Administration and select SNMP Monitoring.

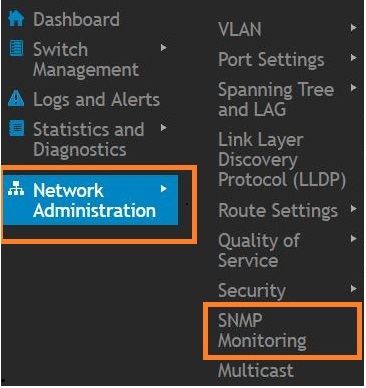

    HOW12619_en_US__1Xseries-SNMPCap_2



3. In SNMP monitoring, navigate to Global Parameters and then click Edit.

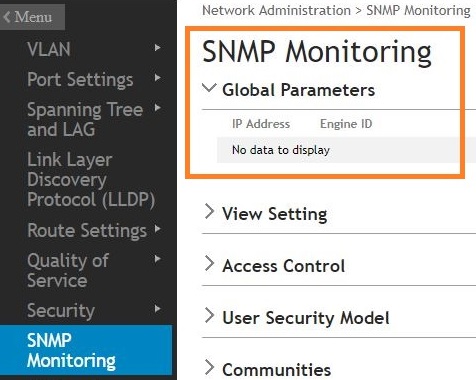

     HOW12619_en_US__2XseriesSNMP-Cap_3

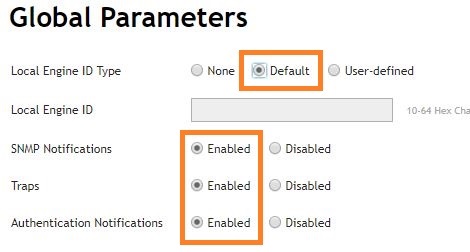

4. Click gear icon. For Local Engine ID Type, select Default and choose Enabled for all items then confirm > OK.



  HOW12619_en_US__3Xseries-SNMPCap_4

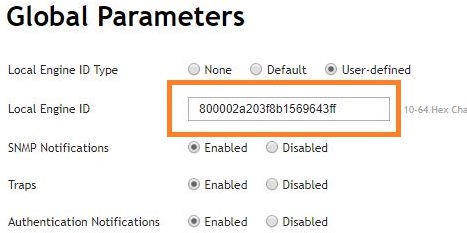

5. Click the gear icon again. Copy the Engine ID to your clipboard and hit Cancel.



   HOW12619_en_US__4Xseries-SNMPCap_5



6. Click Add on edit global parameters, for Supported IP Format, select IPv4. For IP Address, enter the IP address of the SNMP server. For Local Engine ID, paste the Engine ID from your clipboard. Confirm > OK.

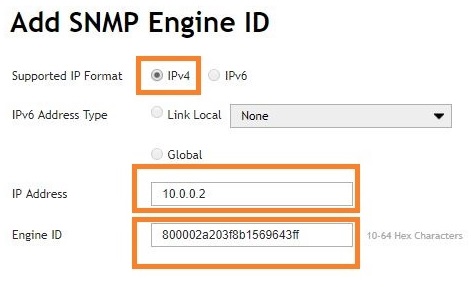

    HOW12619_en_US__5Xseries-SNMPCap_6

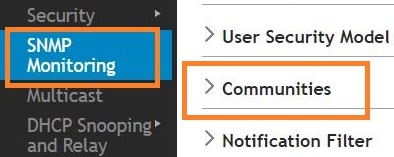

7. Navigate to SNMP Monitoring > Communities. Edit communities and then Add.



     HOW12619_en_US__6Xseries-SNMPCap_7



8. For Supported IP Format, select IPv4. For SNMP Management Station, choose All. Enter a community string in Community String.

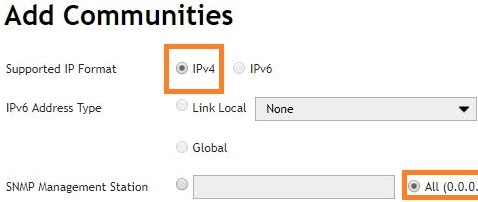

    HOW12619_en_US__7Xseries-SNMPCap_8

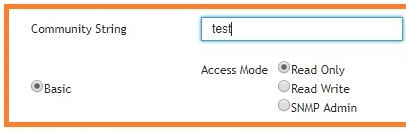

9. Select Basic for the Access Mode. Select Read-Only and set the View Name as Default. Confirm > OK.

Note- We can choose the SNMP community string to be public or private. If you use a community string other than public or private, add it to the SNMP server.
