Avamar: Bare Metal Recovery failed with Get Critical Volume Results Error (HPE ProLiant DL380 Gen10 Server)

Summary: Avamar: Bare Metal Recovery (BMR) failed with Get Critical Volume Results Error (HPE ProLiant DL380 Gen10 Server)

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

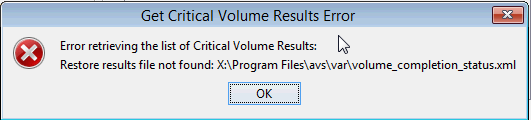

Avamar Bare Metal Recovery (BMR) failied with an error when trying to retrieve the list of critical volume results:

"Error retrieving the list of Critical Volume Results"

kA2f1000000KBblCAG_3_0

Environment
Server model: HPE ProLiant DL380 Gen10 Server
OS: Windows Server 2016 Standard
Firmware: UEFI
Avamar BMR wizard: Avamar_Windows_BMR_Wizard_x64_WinPE10-7.4.101-58.iso and AvamarWindowsBMRWizard_x64_WinPE10-7.5.101-101.iso

Cause

The server had an internal MicroSD card slot which was recognized as DISK 0 by the Avamar BMR wizard (WinPE).
BMR failed by this behavior.

kA2f1000000KBblCAG_1_0

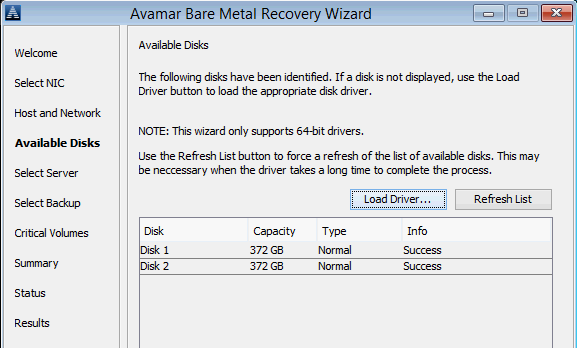

Disk LUNs ware recognized from DISK 1 by Avamar BMR wizard (WinPE).

Resolution

  • Disable the MicroSD card slot in the server's settings.
  • The disk LUN should then be recognized as DISK 0 and Avamar BMR will complete successfully.
