NetWorker: Sådan konfigureres NetWorker til brug af SNMP

• net-snmp-agent-libs
• net-snmp-libs
• net-SNMP

root@networker-mc:~# cat /etc/snmp/snmptrapd.conf
# Example configuration file for snmptrapd
#
# No traps are handled by default, you must edit this file!
#
authCommunity   log,execute,net public

For SNMPv3 se: NetWorker SNMPV3-konfiguration


5. Start snmptrapd på SNMP-modtagerens vært:

# snmptrapd -f -C -c /etc/snmp/snmptrapd.conf -Lf /var/log/snmptrap.log -M /usr/share/snmp/mibs -m NETWORKER-MIB &

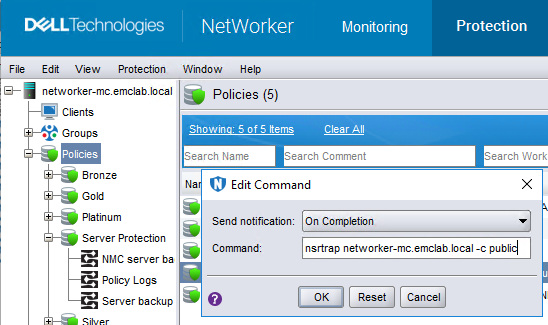

6. Konfigurer NetWorker-job til at sende SNMP-trap

Bemærk;

• Konfiguration af sikkerhedskopiering på handlingsniveau understøtter kun SNMPv2
• Konfiguration af sikkerhedskopiering på politikniveau understøtter både SNMPv2 og v3

For SNMP v2: /usr/sbin/nsrtrap <snmp-modtager IP> -c community-streng

7. Du kan også konfigurere "SNMP Notification request" under fanen Server på NMC. Se venligst den vedhæftede manual.

8. du kan hale loggen / var / log / snmptrap.log for at se, om SNMP sendes til job.

root@networker-mc:~# tail -n 71 /var/log/snmptrap.log
2024-03-05 13:02:58 networker-mc.emclab.local [UDP: [192.168.25.10]:58200->[192.168.25.10]:162]:
SNMPv2-SMI::mib-2.1.3.0 = Timeticks: (301267624) 34 days, 20:51:16.24   SNMPv2-SMI::snmpModules.1.1.4.1.0 = OID: NETWORKER-MIB::nwServerNotification    SNMPv2-SMI::mib-2.1.1.0 = STRING: "--- Server Backup Action Report ---
Policy name:Server Protection
Workflow name:Server backup
Action name:Server db backup
Action status:succeeded
Action start time:03/05/24 13:02:33
Action duration:0 hours 0 minutes 25 seconds
--- Successful Server Backup Save Sets ---
        3353828926/1709661758 networker-mc.emclab.local: index:networker-mc.emclab.local level=1, 53 MB, 62 files
        ...(removed for brevity)...
        3152502350/1709661774 networker-mc.emclab.local: bootstrap level=full, 9668 KB, 294 files
--- Bootstrap backup report ---
      date     time       ssid        volume            device                      access info
  02/05/2024 10:00:24 AM  3485530120  ddveBootstrap.002 ddve.emclab.local_Bootstrap ddve.emclab.local:/networker-mc/Bootstrap
...(removed for brevity)...
  03/05/2024 01:02:54 PM  3152502350  ddveBootstrap.002 ddve.emclab.local_Bootstrap ddve.emclab.local:/networker-mc/Bootstrap
--- Failed Server Backup Save Sets ---
        none"
2024-03-05 13:02:59 networker-mc.emclab.local [UDP: [192.168.25.10]:45415->[192.168.25.10]:162]:
SNMPv2-SMI::mib-2.1.3.0 = Timeticks: (301267768) 34 days, 20:51:17.68   SNMPv2-SMI::snmpModules.1.1.4.1.0 = OID: NETWORKER-MIB::nwServerNotification    SNMPv2-SMI::mib-2.1.1.0 = STRING: "---Summary notification report---
Policy name:Server Protection
        Workflow name:Server backup, Workflow status:succeeded, Workflow start time:03/05/24 13:02:32, Duration:0 hours 0 minutes 27 seconds
                Action name:Server db backup, Action status:succeeded, Action start time:03/05/24 13:02:33, Duration:0 hours 0 minutes 25 seconds
                Action name:Expiration, Action status:succeeded, Action start time:03/05/24 13:02:58, Duration:0 hours 0 minutes 1 seconds"
root@networker-mc:~#
