Dell Unity: Recommended maximum sustained IOPs per drive type

Summary: This article explains the maximum recommended sustained Input-Output Operations per Second (IOPs) per drive type on Dell Unity arrays.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

Recommended Maximum Sustained IOPS Per Drive

  • SAS Flash 2 or 3 > 20,000 IOPS
  • SAS 15K > 350 IOPS
  • SAS 10K > 250 IOPS
  • NL-SAS > 150 IOPS

Newer SAS Flash drives (such as SAS Flash 3) are typically used in all‑flash pools. Earlier generations (for example, SAS Flash 2) are more commonly associated with mixed‑tier pools and FAST VP or FAST Cache configurations. See the Unity Best Practices Guide for more information.

Recommended Maximum Sustained IOPS Per Drive

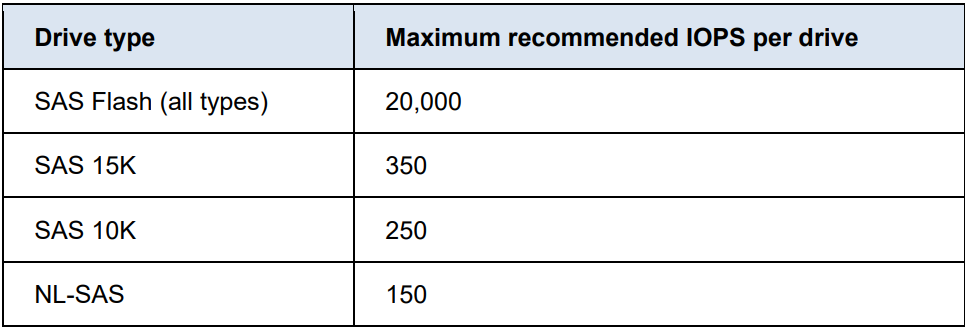

Figure 1.  Maximum IOPS Recommendation Table

Affected Products

Dell EMC Unity Family
