VxRail: How to perform remote auxiliary power drain of a node through the iDRAC
Summary: How to perform remote auxiliary power drain of a node through the iDRAC.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
To perform remote auxiliary drain of the node through the iDRAC, follow the steps below:
- Put the host into maintenance mode in the vCenter web client.

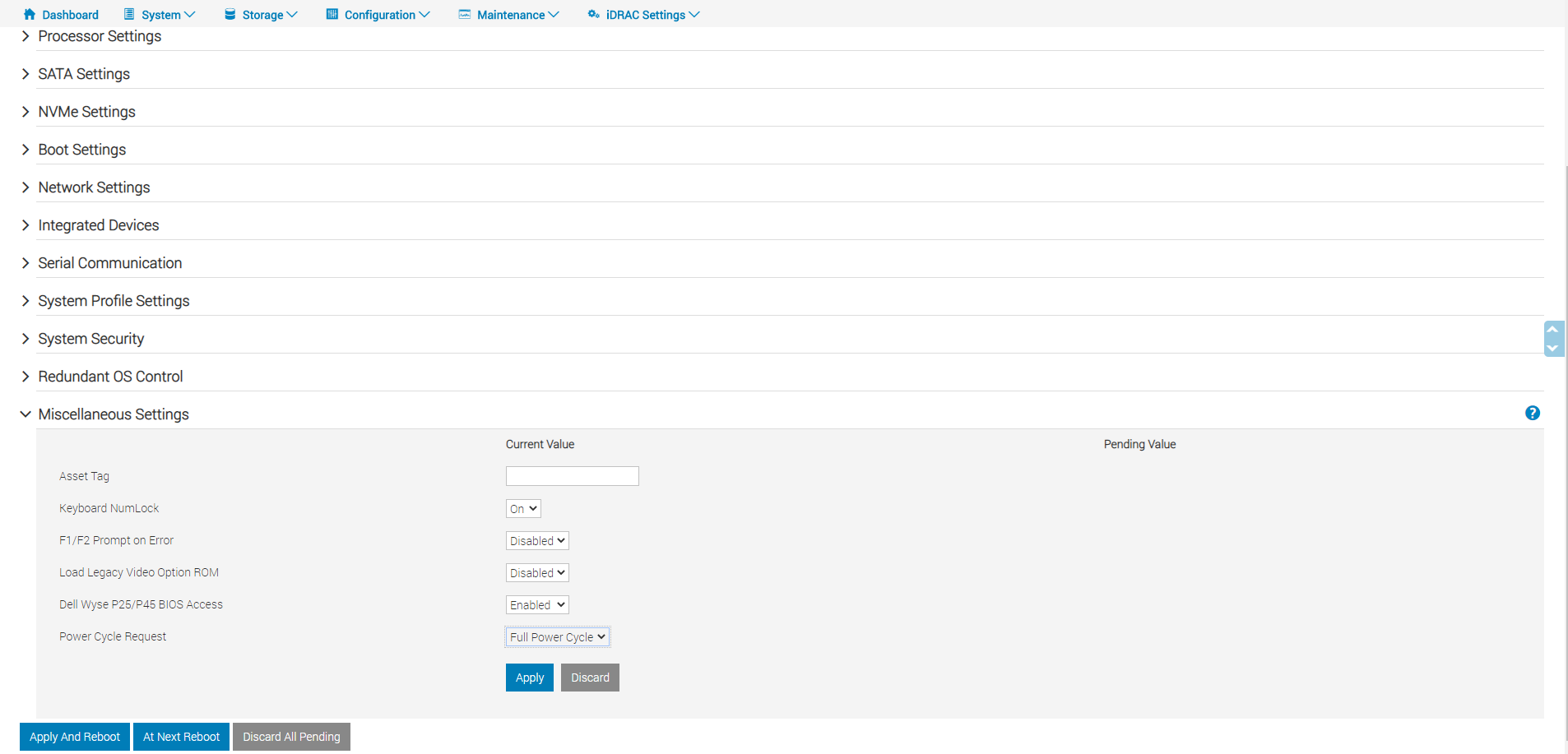

- Navigate to "Configuration > BIOS settings > Miscellaneous Settings" (screenshot below)
- Under "Power Cycle Request" choose Full Power Cycle from the drop-down and click the Apply button.
- Then choose the appropriate option from the bottom of the page to Initiate a reboot and perform the remote auxiliary drain. (If you chose the "At Next Reboot" option you must manually reboot the node before it performs the operation)
For additional information, see the article iDRAC9 Virtual Power Cycle: Remotely power cycle Dell EMC PowerEdge Servers
Additional Information
Connectivity to the iDRAC is lost for a short period once the reset begins and can log back in once it is complete.
Affected Products
VxRail, VxRail G Series Nodes, VxRail D Series Nodes, VxRail D560, VxRail D560F, VxRail E Series Nodes, VxRail E460, VxRail E560, VxRail E560F, VxRail E560N, VxRail E660, VxRail E660F, VxRail E660N, VxRail E665, VxRail E665F, VxRail E665N
, VxRail G560, VxRail G560F, VxRail P Series Nodes, VxRail P470, VxRail P570, VxRail P570F, VxRail P580N, VxRail P670F, VxRail P670N, VxRail P675F, VxRail P675N, VxRail S Series Nodes, VxRail S470, VxRail S570, VxRail S670, VxRail V Series Nodes, VxRail V470, VxRail V570, VxRail V570F, VXRAIL V670F, VxRail VD-4510C, VxRail VD-4520C, VxRail VD Series Nodes, VxRail VE-660, VxRail VE-6615, VxRail VP-760, VxRail VP-7625
...
