PowerFlex: get_info logs from Gateway fails when the file system on which the /tmp resides is created with ftype 0

Summary: Collecting get_info logs from Gateways Fails with Error: The logs file in node x.x.x.x was not found running command.LogCollectionCommand.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.

Symptoms

Getinfo log collection from the Gateway fails with below error:
(scaleio.log from Gateway)

[executor-4] INFO  c.e.s.s.i.s.i.c.LIANodeConnection - downloadInfo called on UnknownSystemNode[nodeName=4640301440918548081,nodeIPs=[192.168.180.x, 192.168.190.x],credentials=<null>].
[executor-4] INFO  c.e.s.s.i.s.i.c.LIANodeConnection - getLogFilePathByUniqueFlowId called on UnknownSystemNode[nodeName=4640301440918548081,nodeIPs=[192.168.180.x, 192.168.190.x],credentials=<null>]. uniqueFlowId: getInfoDump
[executor-4] ERROR c.e.s.s.d.i.c.LogCollectionCommand - Error The logs file in node 192.168.180.x,192.168.190.x wasnt found executing command .LogCollectionCommand (retry) : com.emc.s3g.scaleio.im.services.installation.connectors.LIANodeConnection.getLogs(LIANodeConnection.java:1850)
com.emc.s3g.scaleio.im.services.installation.connectors.LIANodeConnection.downloadInfo(LIANodeConnection.java:1522)

Log in to the ScaleIO node on which the get_info log collection in failing. In trace logs, LIA is unable to find any relevant files under the directory, though the getinfo file was created:

# ls -l

total 50508
-rw-------. 1 root root 51717813 Oct 16 03:57 getInfoDump.tgz
# date
Fri Oct 16 03:57:01 CDT 2020

* /opt/emc/scaleio/lia/logs/trc.0 logs from LIA folder or node 192.168.180.x **
7f17ac10bdb0:liaNet_RecvRequest:00351: 10 minutes since last login
7f17ac10bdb0:liaNet_RecvRequest:01112: GET LOG FILES START
7f17ac10bdb0:liaCmd_GetLogFilesHelper:01239: Number of files 0     <<<-----------
7f17ac10bdb0:liaNet_RecvRequest:01145: GET LOG FILES END

Cause

LIA code uses "Directory Entry" in order to locate the getInfoDump.tgz created as part of the collection. LIA uses a certain function called "readdir()" in order to get the content of the directory.

Once LIA calls "readdir()," it expects to get the field "d_type." This field indicates if "getInfoDump.tgz" is a regular file ("DT_REG"). Not all file systems support d_type

In cases where the file system created does not support "d_type," the returned value once the "readdir()" function call is: "DT_UNKNOWN" and LIA finds zero number of files in the directory.

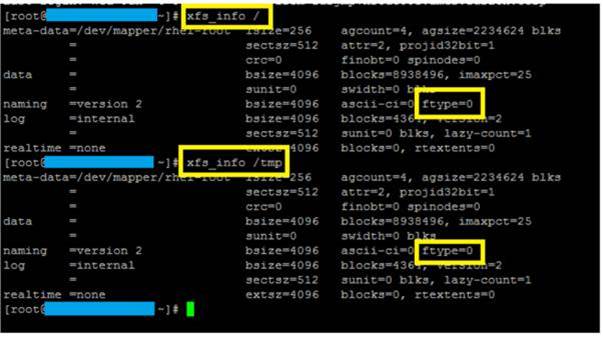

If you have an XFS file system created, run the below command to check for the ftype=0:

screenshot of command output

Resolution

This is addressed in PowerFlex v3.6.

Workaround:
Ensure that the file system created where /tmp resides is Btrfs, ext2, ext3, and ext4.
For the XFS file system, ensure that the file system is created with "ftype=1"

Affected Products

PowerFlex Software, VxFlex Product Family

Products

PowerFlex rack, VxFlex Ready Nodes, VxFlex Product Family, VxFlex Ready Node, VxFlex Ready Node R640, VxFlex Ready Node R740xd
