OpenManage Integration for VMware vCenter：使用 NFS 共享进行更新。

Summary: 本文介绍如何使用网络文件共享 （NFS） 更新 Dell EMC OpenManage Integration for VMware vCenter 设备。

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

NFS 最初是在 OMIVV 5.2 中的 Dell EMC OpenManage Integration for VMware vCenter 上引入的。该过程记录在用户指南中，例如，OMIVV 5.3 用户指南第 20 页： https://dl.dell.com/topicspdf/openmanage-integration-vmware-vcenter_install-guide3_en-us.pdf 和安装指南第 38 页 https://dl.dell.com/topicspdf/openmanage-integration-vmware-vcenter_install-guide3_en-us.pdf：

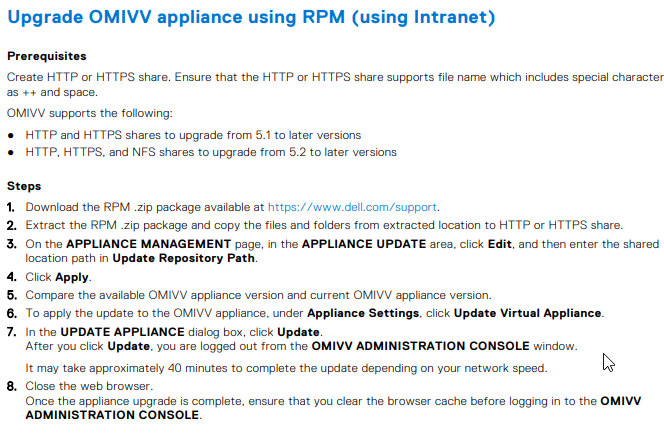

使用 RPM 升级 OMIVV 设备（使用 Intranet）


使用 NFS 的分步过程指南：

  1. 下载 RPM .zip程序包，网址： https://www.dell.com/support。

直接链接（例如，仅用于 OMIVV 5.3）。如果要升级到 5.4，请使用戴尔支持网站浏览相应的链接。
https://dl.dell.com/FOLDER07152222M/1/OpenManage_Integration.x86_64-5.3.0-yumRepo_A00.zip


  1. 提取 RPM .zip包，并将文件和文件夹从提取的位置复制到 HTTP、HTTPS 或 NFS 共享。

  2. 在设备管理页面的设备更新区域中，单击编辑，然后在更新存储库路径中输入共享位置路径。


NFS 语法应采用以下格式：

<ip>:/<share>/<path>

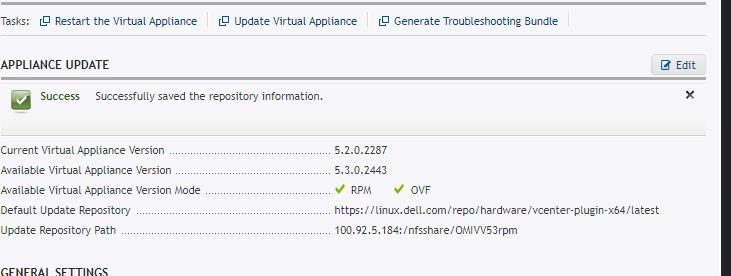

设备更新

  1. 单击 Apply。

  2. 将可用 OMIVV 设备版本与当前 OMIVV 设备版本进行比较。

  3. 要将更新应用到 OMIVV 设备，请在 设备设置下，单击 更新虚拟设备。

  4. 在更新设备对话框中，单击更新。单击更新后，您会从 OMIVV 管理控制台窗口注销。完成更新可能需要大约 40 分钟，具体取决于您的网络速度。

  5. 关闭 Web 浏览器。一体机升级完成后，请确保先清除浏览器高速缓存，然后再登录 OMIVV 管理控制台。




NFS 共享要求和建议：

安装指南第 38 页提供了有关数据库“备份和还原”选项的 NFS 要求： https://dl.dell.com/topicspdf/openmanage-integration-vmware-vcenter_install-guide3_en-us.pdf：

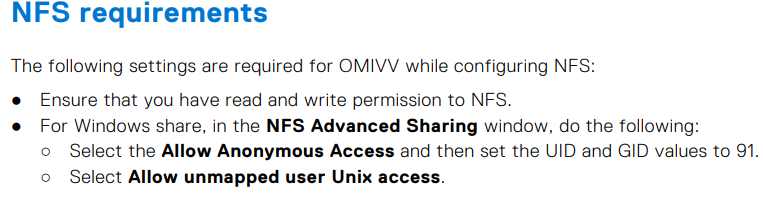

NFS 要求

根据这些信息，我们可以推断出以下内容：

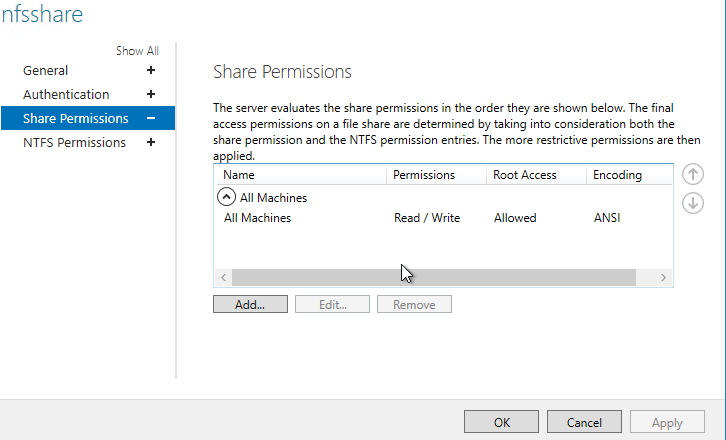

共享权限：

可以设置为“所有计算机”，也可以指定 OMIVV IP 地址并允许读取或读写。
NFS 共享

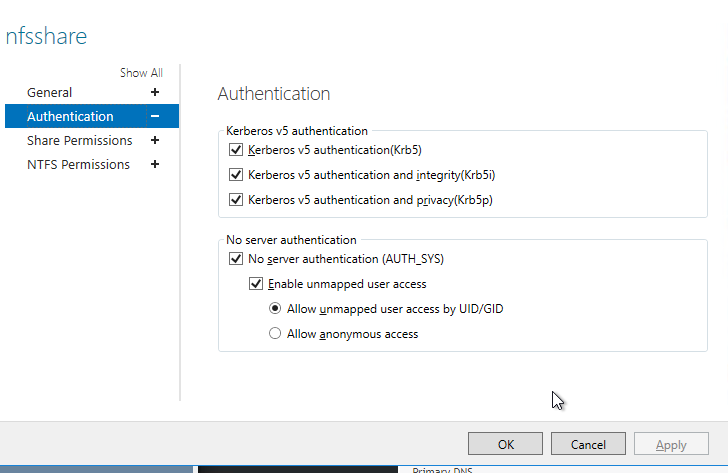

NFS 身份验证（Microsoft Windows 示例）：

“Enable unmapped user access”和 access by UID/GID。

NFS 共享


NTFS 权限


OMIVV Web 控制台界面不允许为数据库的备份/还原或设备更新选项指定用户 ID，因此需要“所有人”才能被允许访问（至少读取访问权限）：

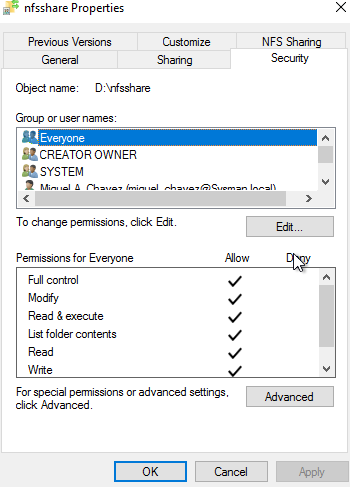

NFS 共享属性



附录：

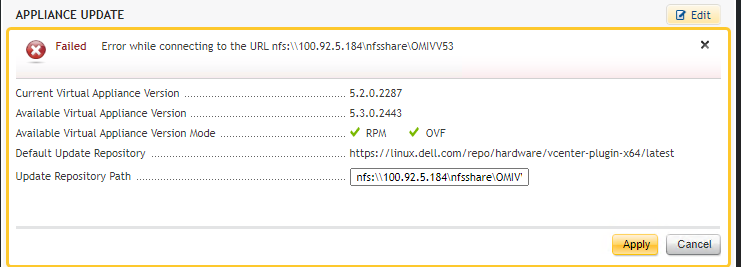

示例语法不正确。
设备更新

HTTP 示例：

HTTP 示例
