PowerEdge：如何在 Red Hat Linux 中确定 PCI-e 卡的总线速度
Summary: 本文提供了有关如何在 Red Hat Enterprise Linux （RHEL） 中确定 PCI-E 卡的 PCI-E 总线速度的信息
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
提醒：以下命令应该是 Linux作系统的本机命令，可以从任何位置运行。命令区分大小写。您可能必须按照”> filename.txt" 将文本输出到文件以供审阅。例如： lspci > filename.txt

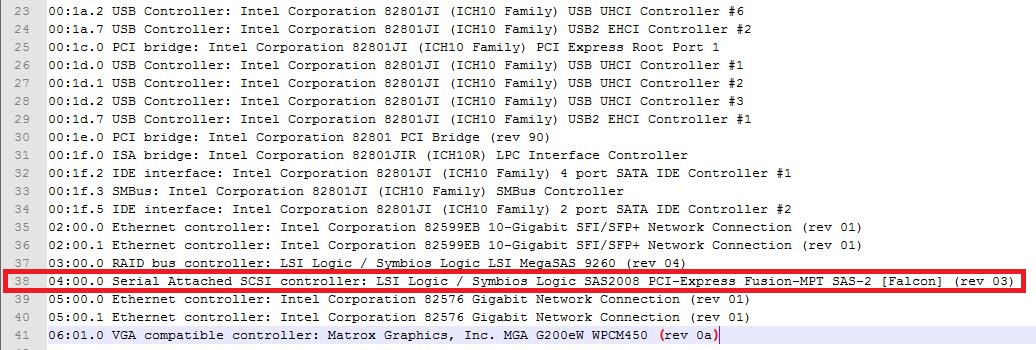

- 首先，让我们通过运行以下命令来确定相关设备的总线地址：
lspci
- 我们可以看到一个 LSI RAID 控制器，但该控制器不是 RAID 控制器，因此这是不正确的设备。唯一的其他 LSI 设备被列为具有总线地址”
04:00.0”提醒：我们还可以看到列出了其他设备，例如 Intel 82599EB 10 GB NIC。您可以使用其 LUN ID 查看此双端口 NIC 上的两个端口.0或.1 - 此时，我们有两个选项：

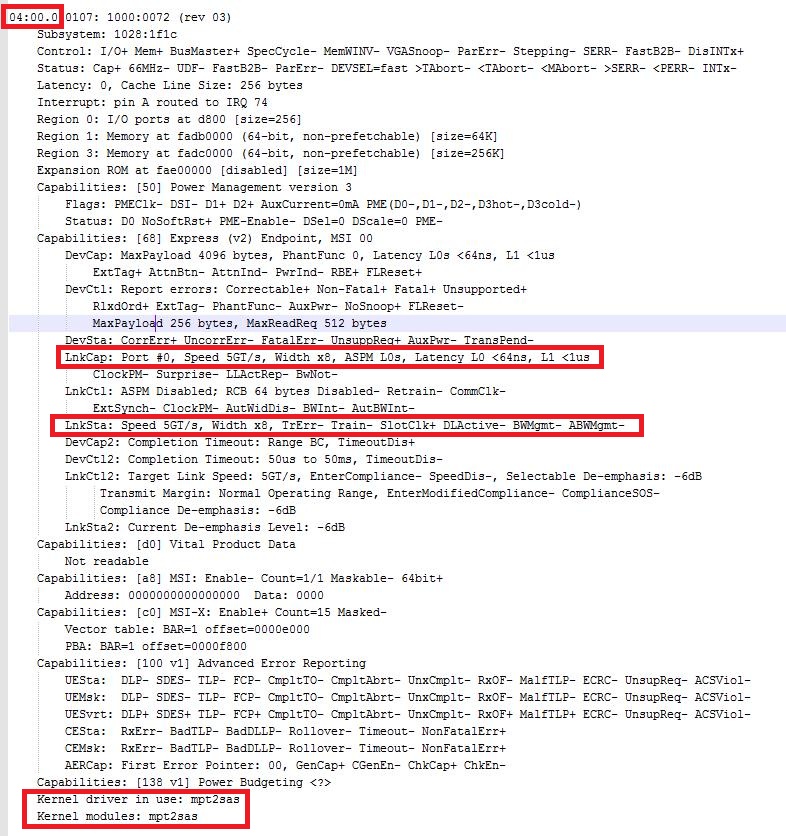

运行命令lspci -nv并在其中搜索我们的公交车地址，在本例中为”04:00.0”
提醒：我们可以看到”LnkCap“替换为”Width x8“和”LnkSta“替换为”Width x8“由此我们可以看到，该设备的协商速度为 8 倍。 - 或者我们可以运行命令

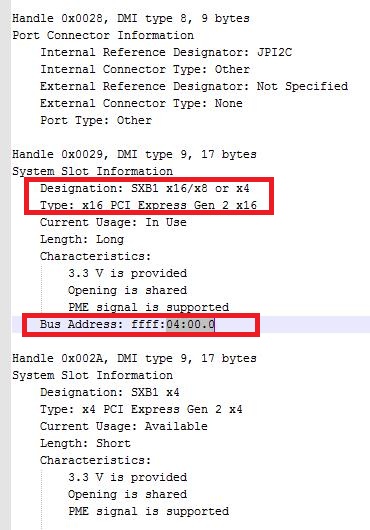

dmidecode并在其中搜索我们的公交车地址，在本例中为”04:00.0”
提醒：我们可以在“Designation”下看到插槽类型接受x16,x8, or x4。从“Type”中，我们可以看到插槽的长度为x16。
