PowerFlex: Release Matrix and Supported Upgrade Path
Summary: This article shows the PowerFlex release matrix, and guidance on how to correlate the various packages.
Instructions
- PowerFlex Release Matrix
Recommended versions are shown in bold and are trusted releases that are evaluated against quality criteria. Recommended versions are set at the third digit of the PowerFlex Manager software, and may be different based on the PowerFlex Generation. Gen 2 is based on the PowerFlex dual-parity erasure coding protection scheme, the new storage architecture available in PowerFlex 5.x and higher. Gen 1 storage design leverages mirroring-based data protection model. More on Minimum, Recommended, and Latest Code Versions for Dell Technologies Servers, Storage, and Networking products
Prior to upgrading refer to
PowerFlex System Configuration Reporter (SCR) is highly recommended. SCR provides comprehensive configuration reporting, health assessment, and upgrade readiness checks. SCR 4.9 is the latest version and is available via SolVe Online.
The matrix below covers: PowerFlex Manager (PFxM) and PowerFlex Core software versions, and the Intelligence Catalog (IC) and Release Certification Matrix (RCM) package versions.
The supported upgrade paths are summarized in the next section.
|
PFxM |
Core | IC | RCM | vSphere | Release
Date |
Recommended | Notes |
| 5.1.0.2 | 5.1.0.2 | 51.391.02 | 3.9.1.2 | 8.0 | 11 Aug 2026 |
Gen2: Aug 2026 to present |
Gen2 Release Notes |
| 4.5.6.0 | 51.384.02 | 3.8.4.2 | 8.0 |
Gen1 Release Notes |
|||
| 5.1.0.1 | 5.1.0.1 | 51.391.01 | 3.9.1.1 | 8.0 | 10 Jun 2026 |
Gen2: Jun 2026 to Aug 2026 |
Gen2 Release Notes |
| 4.5.5.2 | 51.384.01 | 3.8.4.1 | 8.0 |
Gen1 Release Notes |
|||
| 5.0.0.0 | 5.0.0.0 | 50.390.00 | 3.9.0.0 | 8.0 | 25 Mar 2026 |
PowerFlex Gen2 (SAE) Release Notes |
|
| 4.8.0.1 | 4.5.5.1 | 48.383.02 | 3.8.3.2 | 8.0 | 24 Apr 2026 | Gen1: May 2026 to present | Release Notes |
| 48.378.02 | 3.7.8.2 | 7.0 | |||||
| 4.8.0.0 | 4.5.5.0 | 48.383.01 | 3.8.3.0 | 8.0 | 05 Dec 2025 | Gen1: Dec 2025 to May 2026 | Release Notes |
| 48.378.01 | 3.7.8.0 | 7.0 | |||||
|
4.6.2.1 |
4.5.4.0 | 46.382.00 | 3.8.2.0 | 8.0 | 03 Jul 2025 | ||
| 46.377.00 | 3.7.7.0 | 7.0 | |||||
| 4.6.2.0 | 4.5.4.0 | 46.382.00 | 3.8.2.0 | 8.0 | 28 Apr 2025 | ||
| 46.377.00 | 3.7.7.0 | 7.0 | |||||
| 4.6.1.0 | 4.5.3.0 | 46.381.00 | 3.8.1.0 | 8.0 | 27 Nov 2024 | ||
| 46.376.00 | 3.7.6.0 | 7.0 | |||||
| 4.6.0.1 | 4.5.2.1 | 46.380.01 | 3.8.0.1 | 8.0 | 30 Aug 2024 | ||
| 46.375.01 | 3.7.5.1 | 7.0 | |||||
| 4.6.0.0 | 4.5.2.1 | 46.380.00 | 3.8.0.0 | 8.0 | 30 May 2024 | ||
| 46.375.00 | 3.7.5.0 | 7.0 | |||||
| 4.5.2 | 4.5.2 | 45.374.00 | 3.7.4.0 | 7.0 | 01 Apr 2025 | ||
| 4.5.1.2 | 4.5.1 | 45.373.01 | 3.7.3.1 | 7.0 | 08 Mar 2024 | ||
| 3.8.8 | 3.6.4 | 38.367.01 | 3.6.7.1 | 7.0 | 17 Apr 2025 | ||
| 3.8.8 | 3.6.4 | 38.367.00 | 3.6.7.0 | 7.0 | 07 Oct 2024 | ||
| 3.8.7 | 3.6.3 | 38.366.00 | 3.6.6.0 | 7.0 | 10 Apr 2024 | ||
| 3.8.6 | 3.6.2 | 38.365.00 | 3.6.5.1 | 7.0 | 31 Jan 2024 |
See PowerFlex: How to Find RCM IC Version
- PowerFlex Supported Upgrade Paths
Some PowerFlex upgrades cannot be done directly and require intermediate upgrade steps. These tables describe the valid upgrade paths.
-
- For environments with PowerFlex Manager 4.6.x planning to update to 5.1 or higher, PowerFlex Manager must initially be upgraded to 4.8.x, then to 5.1.x. Catalogs (RCM/IC) are able to be direct upgrades. This also applies to systems that below 4.6.x and are required to use 4.6 as an interim step per the table below.
- Direct upgrades from PFxM/Core 3.x to 4.x are not supported, but rather a one-time migration is required. See Dell PowerFlex Appliance and PowerFlex Rack Migration to PowerFlex 4.x for more information.
- An upgrade path may have restrictions when certain elements such as CloudLink are deployed.
- PowerFlex: Systems with ProSupport are Eligible for Upgrades by Dell RPS Team
| To 4.6.x | To 4.8.x | To 5.0.x | To 5.1.x (see note above) | |
| From 3.6.x | 3.6.x → 3.8.3 → 4.6.2 | 3.6.x → 3.8.3 → 4.6.2 → 4.8 | unsupported | 3.6.x → 3.8.3 → 4.6.2 → 4.8 → 5.1 |
| From 3.7.x | 3.7.x → 3.8.3 → 4.6.2 | 3.7.x → 3.8.3 → 4.6.2 → 4.8 | unsupported | 3.7.x → 3.8.3 → 4.6.2 → 4.8 → 5.1 |
| From 3.8.0-2 | 3.8.x → 3.8.3 → 4.6.2 | 3.8.x → 3.8.3 → 4.6.2 → 4.8 | unsupported | 3.8.x → 3.8.3 → 4.6.2 → 4.8 → 5.1 |
| From 3.8.3-8 | 3.8.3 → 4.6.2 | 3.8.3 → 4.6.2 → 4.8 | unsupported | 3.8.3 → 4.6.2 → 4.8 → 5.1 |
| From 4.0.x | 4.0.x → 4.5.2 → 4.6.2 | 4.0.x → 4.5.2 → 4.6.2 → 4.8 | unsupported | 4.0.x → 4.5.2 → 4.6.2 → 4.8 → 5.1 |
| From 4.5.x | 4.5.x → 4.6.2 | 4.5.x → 4.6.2 → 4.8 | unsupported | 4.5.x → 4.6.2 → 4.8 → 5.1 |
| From 4.6.x | 4.6 → 4.6 | 4.6.x → 4.8 | unsupported | 4.6.x → 4.8 → 5.1 |
| From 4.8.x | unsupported | 4.8 → 4.8 | unsupported | 4.8 → 5.1 |
| From 5.0.x | unsupported | unsupported | unsupported | 5.0 → 5.1 |

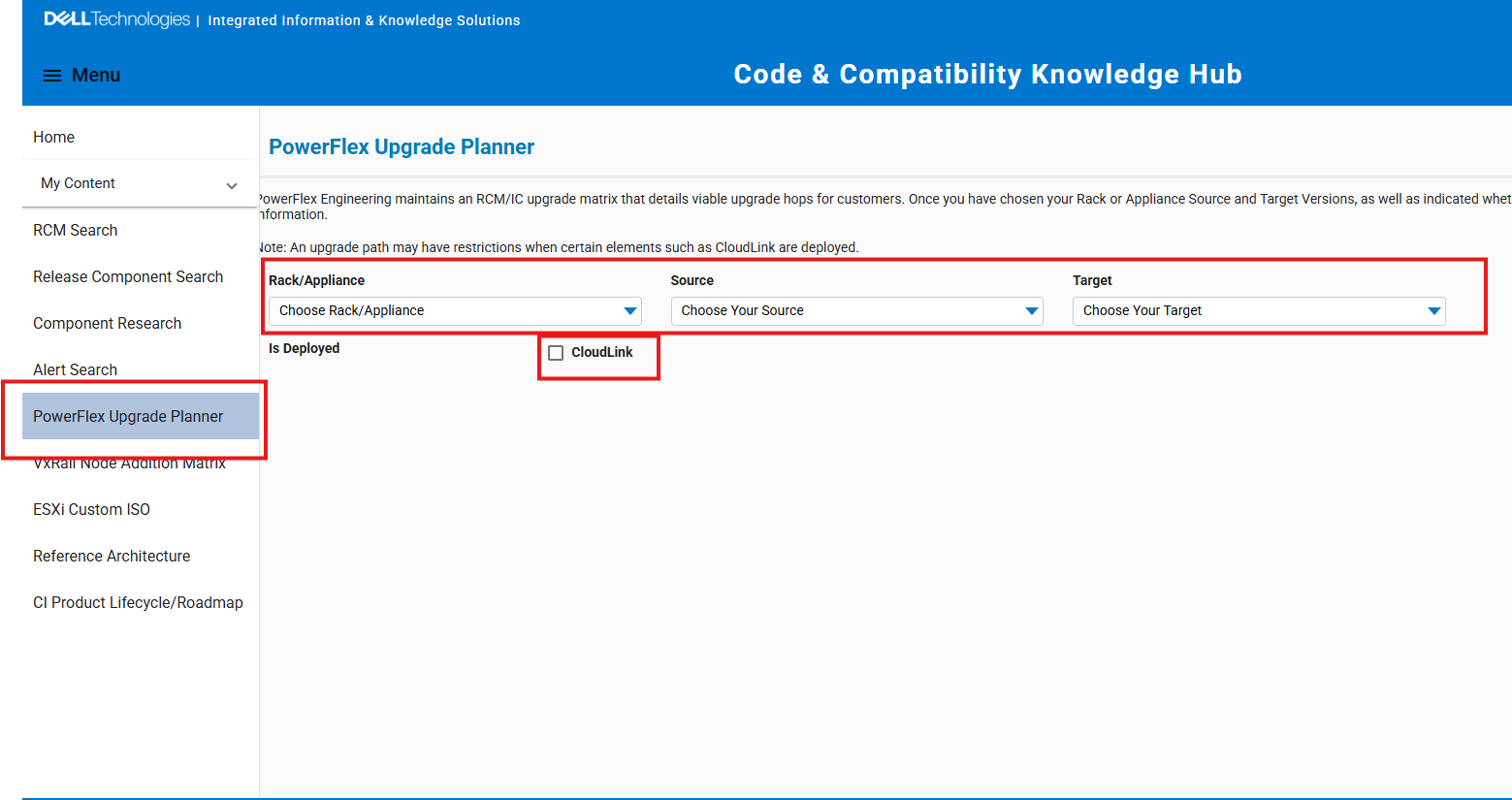

For additional details, refer to PowerFlex Upgrade Planner.
