Integracja Avamar i Data Domain: Nie można zsynchronizować certyfikatów z włączonymi zabezpieczeniami sesji

Summary: Kiedy zabezpieczenie sesji jest włączone w Avamar, certyfikaty muszą być zsynchronizowane między Avamar i Domeną danych. Wymaga to włączenia protokołu SCP w domenie danych.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.

Check out other resources

Symptoms

Tworzenie kopii zapasowych może ulec awarii z następującymi błędami:

DDR result code: 5049, desc: file not found
DDR result code: 5341, desc: SSL library error "failed to import host or ca certificate automatically"
DDR result code: 5008, desc: invalid argument

W następujących artykułach dell 197106, Avamar i Data Domain Integration: DD wyświetla czerwony kolor w Avamar AUI i lub ścieżce rozpoznawania nazw interfejsu użytkownika, certyfikaty nie są generowane.

Po sprawdzeniu dzienników MCS istnieje wyjątek związany z protokołem SCP.

09/29-16:29:13.00727 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.DdrCache.firsttimeToAddEx
FINE: Importing host certificate and ca certificates...
09/29-16:29:13.00743 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.DdrSsh.executeDdrCommand
FINE: Executing ddr command. host: idpa-lab.dell.com cmd: adminaccess certificate cert-signing-request show ...
09/29-16:29:14.00095 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.kc.PrefsCertRsa.
FINE: RSA certificate:
09/29-16:29:14.00095 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.kc.PrefsCertRsa.
FINE: Message digest algorithm: sha512
09/29-16:29:14.00095 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.PrefsDdrCert.
INFO: DD RSA certificate:
09/29-16:29:14.00095 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.PrefsDdrCert.
INFO: Number bits(key strength): 3072bit
09/29-16:29:14.00095 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.PrefsDdrCert.
INFO: Message digest algorithm: sha512
09/29-16:29:14.00137 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.DdrSsh.executeDdrCommand
FINE: Executing ddr command. host: idpa-lab.dell.com cmd: adminaccess certificate cert-signing-request generate  key-strength 3072bit country 'US' state 'California' city 'Irvine' org-name 'EMC Corp' org-unit 'BRS Division'...
09/29-16:29:14.00721 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.DdrSsh.copyFile
FINE: Copying file from host: idpa-lab.dell.com...
09/29-16:29:15.00619 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.datadomain.DdrSsh.copyFile
WARNING: Failed to copy file from host: idpa-lab.dell.com.
09/29-16:29:15.00619 [RMI TCP Connection(27)-192.x.x.x#965] com.avamar.mc.util.MCException.logException
WARNING: com.maverick.ssh.SshException: java.io.IOException
  at com.maverick.scp.ScpClientIO.get(ScpClientIO.java:151)
  at com.maverick.scp.ScpClientIO.get(ScpClientIO.java:124)
  at com.avamar.mc.datadomain.DdrSsh.copyFile(DdrSsh.java:940)
  at com.avamar.mc.datadomain.DdrSsh.copyFileEx(DdrSsh.java:961)
  at com.avamar.mc.datadomain.DdrSshCertificateCmd.getcertificateSigningRequest(DdrSshCertificateCmd.java:200)
  at com.avamar.mc.datadomain.DataDomainService.generateAndImportDdrHostCert(DataDomainService.java:5520)
  at com.avamar.mc.datadomain.DataDomainService.firsttimeToAdd(DataDomainService.java:5183)
  at com.avamar.mc.datadomain.DataDomainService.firsttimeToAdd(DataDomainService.java:6041)
  at com.avamar.mc.datadomain.DdrCache.firsttimeToAdd(DdrCache.java:1599)
  at com.avamar.mc.datadomain.DdrCache.firsttimeToAddEx(DdrCache.java:1645)
  at com.avamar.mc.datadomain.DdrCache.ConfigCerts(DdrCache.java:1454)
  at com.avamar.mc.datadomain.DdrCache.checkAndConfigCerts(DdrCache.java:1251)
  at com.avamar.mc.datadomain.DdrCache.update(DdrCache.java:402)
  at com.avamar.mc.datadomain.DdrCache.update(DdrCache.java:676)
  at com.avamar.mc.datadomain.DataDomainService.rewriteDdrCloudInfo(DataDomainService.java:6457)
  at com.avamar.mc.datadomain.DataDomainService.disableCloudTier(DataDomainService.java:6486)
  at com.avamar.mc.datadomain.DataDomainService._updateDdr(DataDomainService.java:1271)
  at com.avamar.mc.datadomain.DataDomainService.updateDdr(DataDomainService.java:1036)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy37.updateDdr(Unknown Source)
  at com.avamar.mc.datadomain.DataDomainServiceContext.updateDdr(DataDomainServiceContext.java:223)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)
Caused by: java.io.IOException: SCP unexpected cmd: Scp is disabled. Access denied.
  at com.maverick.scp.ScpClientIO$ScpEngineIO.readStreamFromRemote(ScpClientIO.java:305)
  at com.maverick.scp.ScpClientIO.get(ScpClientIO.java:148)
  at com.maverick.scp.ScpClientIO.get(ScpClientIO.java:124)
  at com.avamar.mc.datadomain.DdrSsh.copyFile(DdrSsh.java:940)
  at com.avamar.mc.datadomain.DdrSsh.copyFileEx(DdrSsh.java:961)
  at com.avamar.mc.datadomain.DdrSshCertificateCmd.getcertificateSigningRequest(DdrSshCertificateCmd.java:200)
  at com.avamar.mc.datadomain.DataDomainService.generateAndImportDdrHostCert(DataDomainService.java:5520)
  at com.avamar.mc.datadomain.DataDomainService.firsttimeToAdd(DataDomainService.java:5183)
  at com.avamar.mc.datadomain.DataDomainService.firsttimeToAdd(DataDomainService.java:6041)
  at com.avamar.mc.datadomain.DdrCache.firsttimeToAdd(DdrCache.java:1599)
  at com.avamar.mc.datadomain.DdrCache.firsttimeToAddEx(DdrCache.java:1645)
  at com.avamar.mc.datadomain.DdrCache.ConfigCerts(DdrCache.java:1454)
  at com.avamar.mc.datadomain.DdrCache.checkAndConfigCerts(DdrCache.java:1251)
  at com.avamar.mc.datadomain.DdrCache.update(DdrCache.java:402)
  at com.avamar.mc.datadomain.DdrCache.update(DdrCache.java:676)
  at com.avamar.mc.datadomain.DataDomainService.rewriteDdrCloudInfo(DataDomainService.java:6457)
  at com.avamar.mc.datadomain.DataDomainService.disableCloudTier(DataDomainService.java:6486)
  at com.avamar.mc.datadomain.DataDomainService._updateDdr(DataDomainService.java:1271)
  at com.avamar.mc.datadomain.DataDomainService.updateDdr(DataDomainService.java:1036)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy37.updateDdr(Unknown Source)
  at com.avamar.mc.datadomain.DataDomainServiceContext.updateDdr(DataDomainServiceContext.java:223)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
  at java.lang.Thread.run(Unknown Source)

Cause

Przejrzyj dziennik mcserver:

/usr/local/avamar/var/mc/server_log/mcserver.log.0

Caused by: java.io.IOException: SCP unexpected cmd: Scp is disabled. Access denied.

Oznacza to, że protokół SCP jest wyłączony w domenie danych.

Przepływ certyfikatów synchronizacji między Avamar i Domeną danych wymaga włączenia protokołu SCP, jak pokazano poniżej:

Avamar uruchamia polecenie w domenie danych przy użyciu klucza publicznego Domeny danych do uwierzytelniania bez hasła. Pierwszym poleceniem jest wygenerowanie żądania podpisywania certyfikatu (CSR) w domenie danych.
Następnie Avamar próbuje skopiować CSR z domeny danych przy użyciu SCP, ale nie może tego zrobić, gdy protokół SCP jest wyłączony w domenie danych.
Avamar użyje CSR do podpisania certyfikatu wystawionego do domeny danych przez główny urząd certyfikacji Avamar. W domenie danych jest on nazywany certyfikatem "imported-host ddboost".

Sprawdzanie interfejsu użytkownika Data Domain pokazuje, że protokół SCP jest wyłączony:

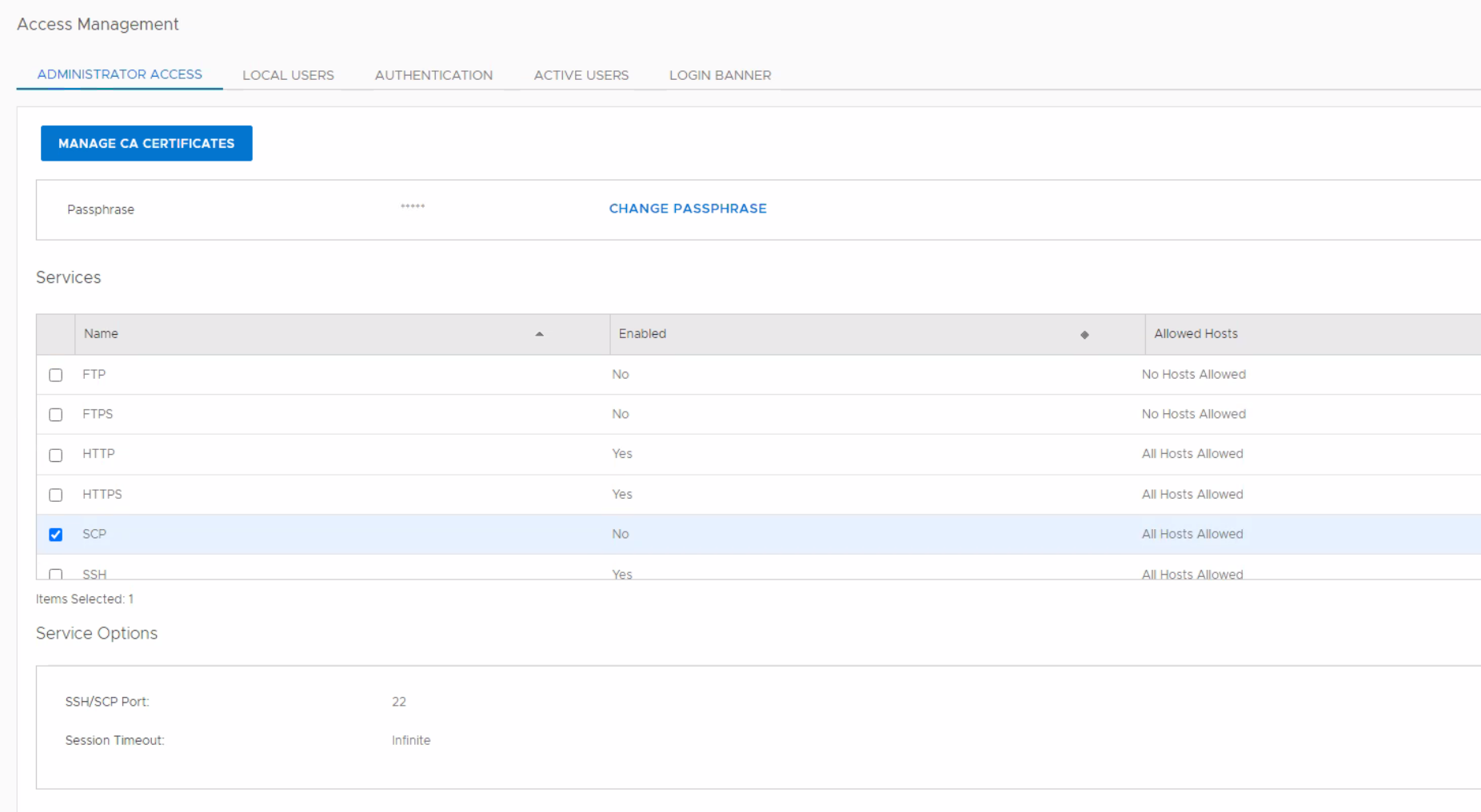

Rysunek 1. Interfejs użytkownika Data Domain pokazuje, że protokół SCP jest wyłączony

Resolution

Włącz protokół SCP w interfejsie internetowym Domeny danych z poziomu

narzędzia Administration > Access > Services > Check SCP > Configure > Check Allow SCP.

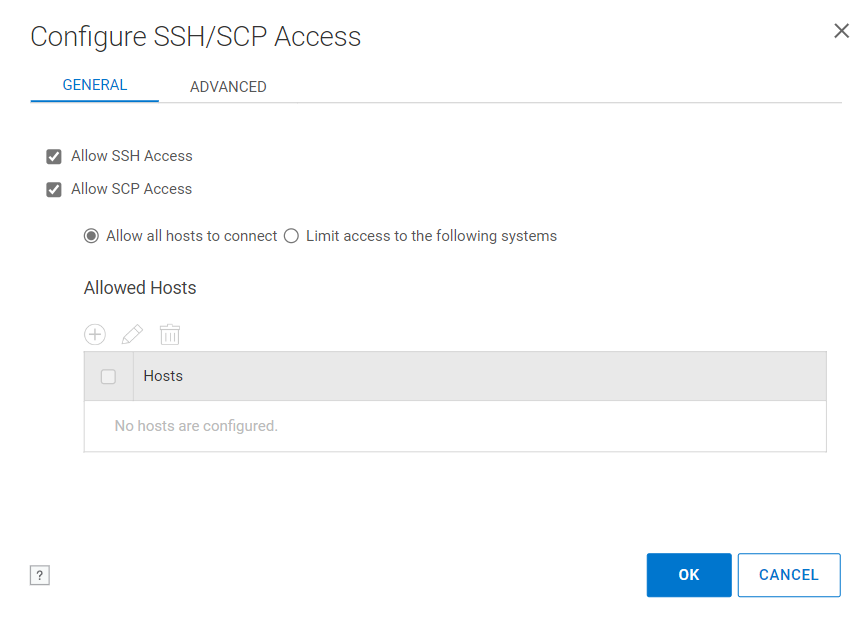

Rysunek 2. Włączanie protokołu SCP w interfejsie internetowym Data Domain

Affected Products

Avamar

Article Number: 000218137

Article Type: Solution

Last Modified: 23 Nov 2023

Version: 4
