PowerEdge: Wiring instructions for a DC power supply unit
Riepilogo: This article provides some checklist to prevent unnecessary components replacement on DC power supply implementation.
Questo articolo si applica a
Questo articolo non si applica a
Questo articolo non è legato a un prodotto specifico.
Non tutte le versioni del prodotto sono identificate in questo articolo.
Istruzioni
What Do the customer must know?
Checklist:

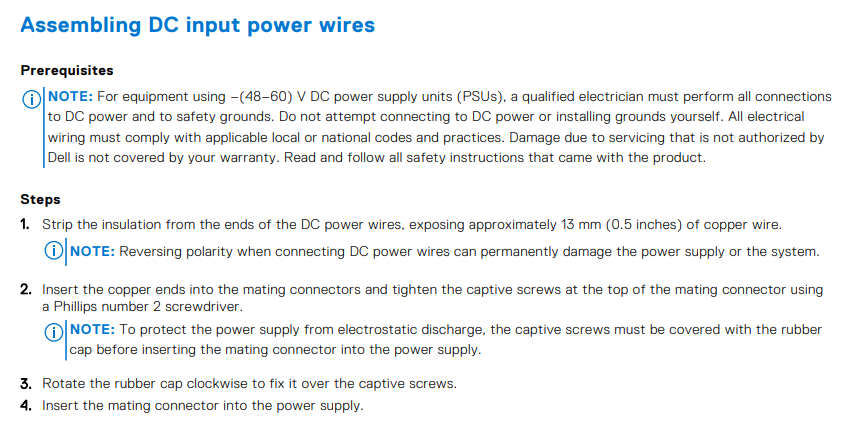

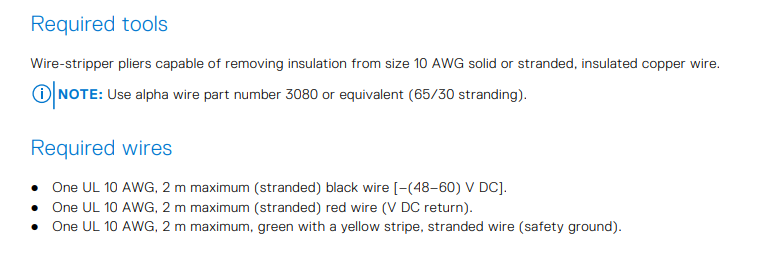

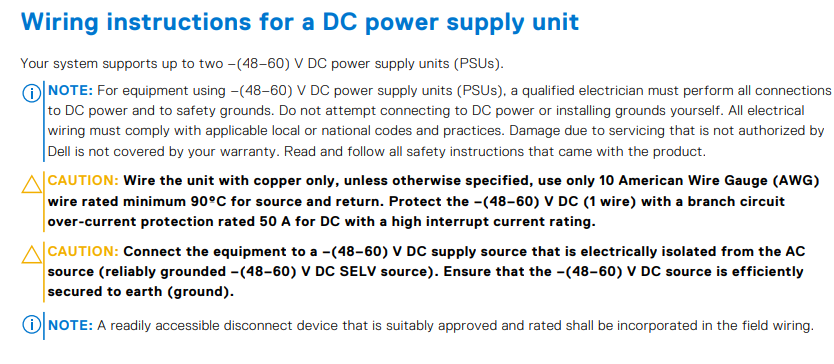

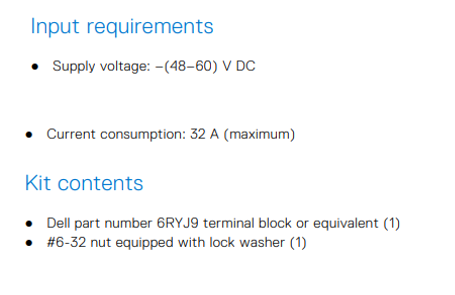

Ask the customer for figures to understand the issue in question.

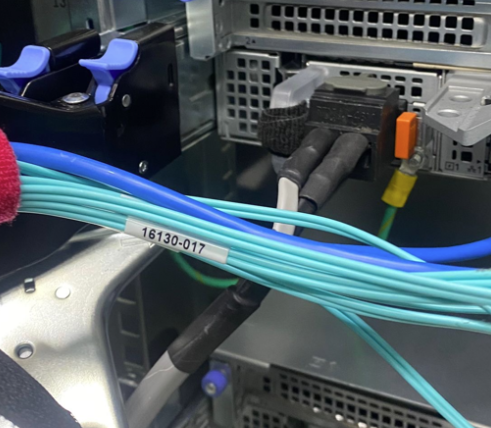

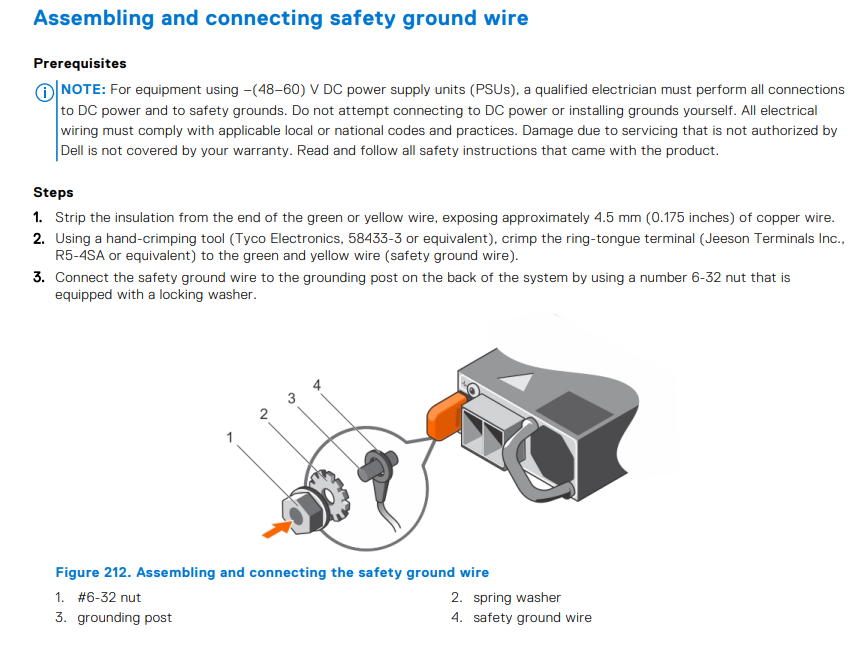

Based on these figures the customer was not following the wiring best practices, missing Ground cable was identified.

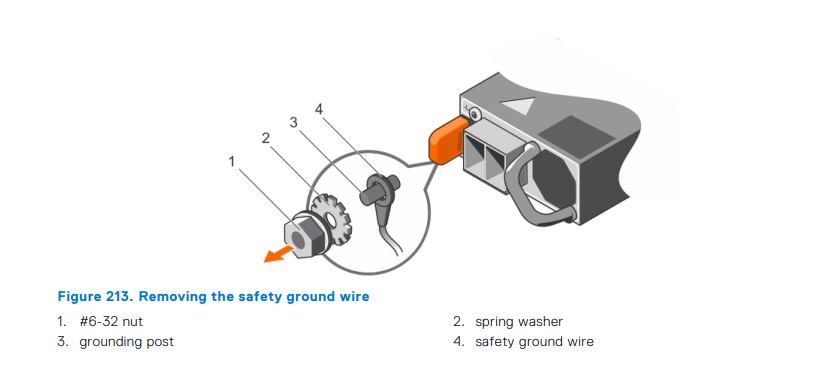

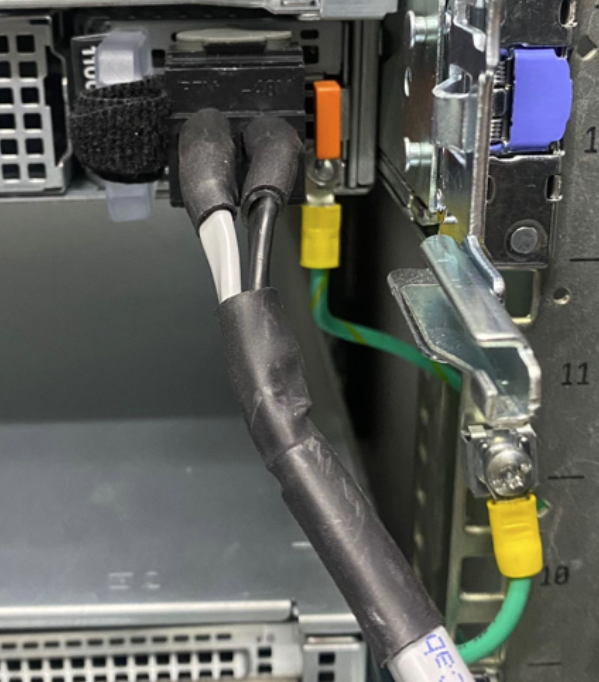

On this figure, we can notice that the customer completed the best practices.

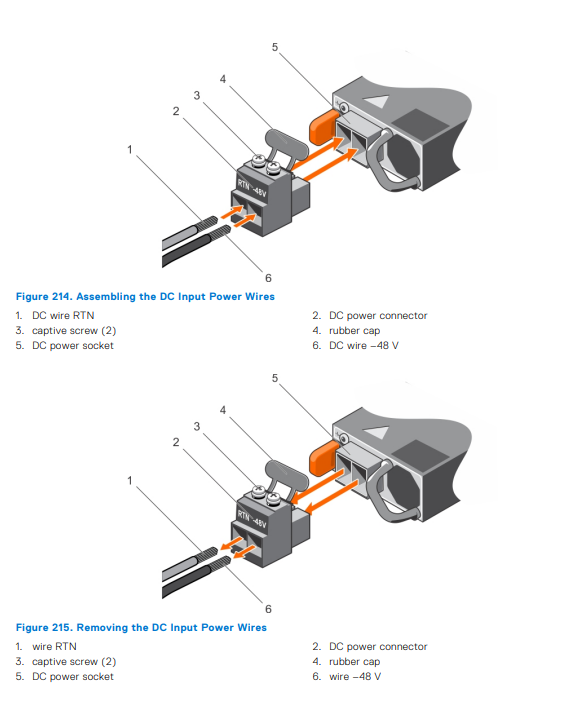

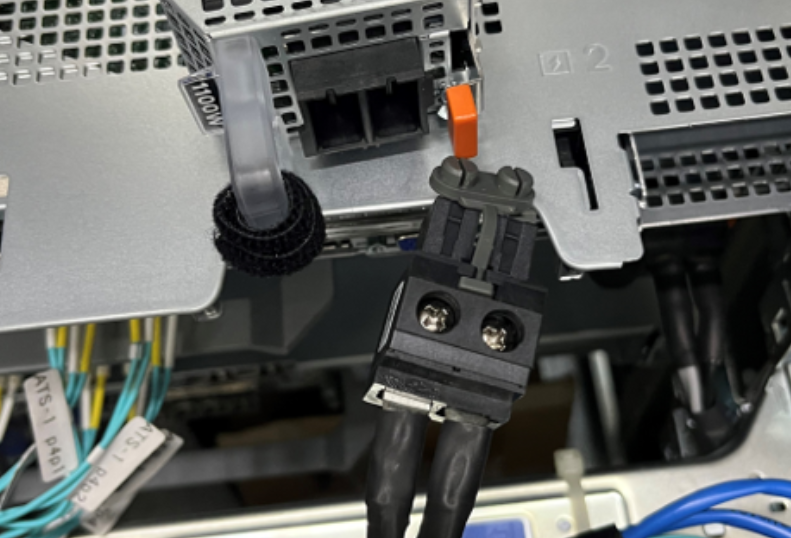

Another Checklist is the position of the cables as follows.
