Aurora R7, CPU fan and Nvidia Sound

Question

@r72019 been helping me a lot but sorry bro il post all the info here since its not letting me post pics in the other thread

so i bought h60 corsair , i pluged to top fan and the cpu fan to the Pump fan ( the CPU FAN plug is now empty )

i bought all fans Corsair ML120 all around and removed all the stock fans

i also bought Y connectors to connect my other fan ( my other fan is not connected at the moment till i receive my Y connectors like @r72019 said.

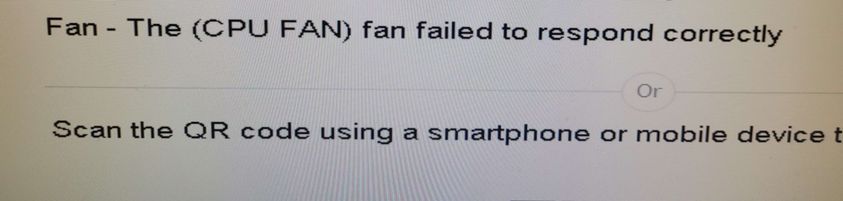

here is the pics , evreytime i restart my pc BIOS starts up and said CPU fan failed to respond.

After that when i played COD Nvidia sound was working fine than in th emid game it stoped and gave me DirectX error and then the sound completley gone ( i still can use REaltek sound but no Nvidia ) why?

here is the pic of the parts i bought and my pc inside , please help thank you so much

r72019 · Accepted Answer

I see the problem. You have a Corsair ML120 (it has gray fan blades). That one is not compatible with the TOP_Fan header.

You need the Corsair ML120 Pro or an OEM Dell fan (technically the only validated Fan is the Dell Nidec or Dell AVC). Anyway, the Corsair ML120 Pro has black fan blades and is more expensive.

You can fix this, in lieu of returning the fans, by connecting the OEM fan in your push pull setup, and tracking the Y splitter to the OEM fan. So if you look at the Y splitter, one side will have 4 wires, and the other side will have 3 wires. Plug the OEM fan into the side with 4 wires. And the corsair ML120 into the side with 3 wires.

r72019 · Accepted Answer

https://www.nvidia.com/Download/index.aspx

r72019 · Answer

You can try doing a clean install of the latest Nvidia driver package (direct from Nvidia), including Nvidia sound, for the second issue.

bichocho · Answer

will do! man u alwasy the best

bichocho · Answer

wohooo finally ok il go ahead and buy them! thanksssssssssssss ,a do you know how to fix the sound? the nvidia

r72019 · Answer

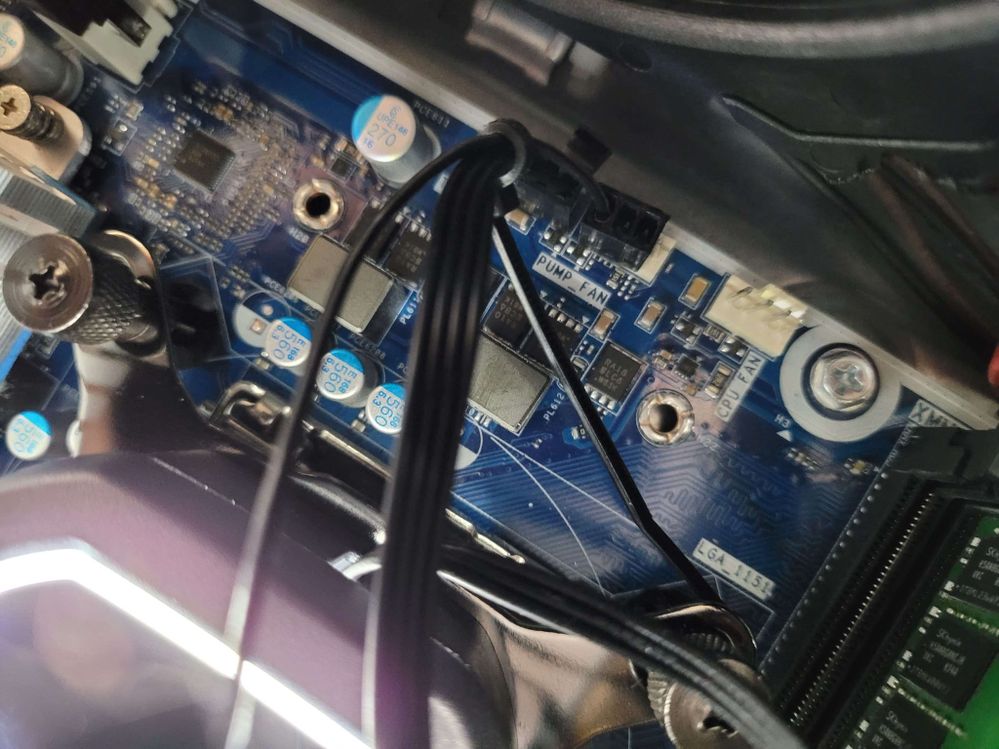

Ah, really good eyes!  It does look like the pump fan connector got squeezed over onto all the wrong PINs, the 3 PIN cable connector needs to be shifted over one pin to the right.  I suspect there will still be a top fan failed to respond correctly error with the ML120 regular fan.

r72019 · Answer

'or SATA power from the PSU?' It is powered by the PSU otherwise it would have fried being hooked up on the wrong motherboard pins.  Also, there's only one wire so it's not powered by that header (thankfully!).  That's just tach.  So that explains why the CPU is reporting a 0 RPM.  LOL

bichocho · Answer

alright i guess now u know the situation so i bought the Pros just received it and just hooked it up , i am receiving the same error i also got the Y connector so i connected both fans together to the TOP fan , anw i have an extra Y connector i used it for the 3 pin pump fan so the Y connector got 4 pins so i connected it to the pump fun with the 3 pin , correct? still having same error

bichocho · Answer

i moved it 1 more to the right same problem ( to the pump fan )

r72019 · Answer

Just to make sure, you connected the pump power cable directly to the PSU?  The cable it goes to is in the metal box behind the PSU. So the corsair lettering lights up white when you turn on the PC?

bichocho · Answer

This is the plug that comes with the cpu that connect to the pump ( i used 3pin to 4 pin ) but ok il remove it

bichocho · Answer

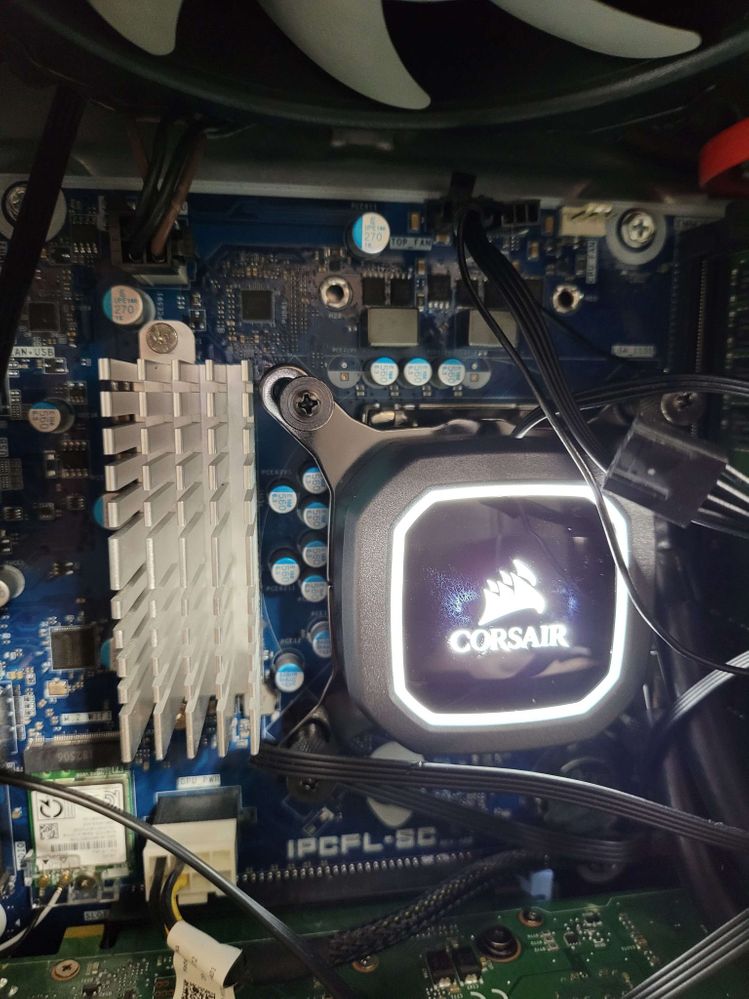

Yes sir it lights up , here is some pics , correct?

bichocho · Answer

Sorry just finished work here you clear picture i plugged the cpu to the cpu fan straight and the cpu power to this plug SATA , correct? Because still getting the error and shows 0 rpm

r72019 · Answer

Yeah, it looks right,

CPU header empty

Top Fan = two ML 120 Pros

Front Fan = OEM fan

Pump fan = tach wire.

Is it showing "CPU Pump running" in AWCC like in this photo. If not, is it reading an RPM in AWCC?

AWCC pump running.png

r72019 · Answer

You might also trying to clear CMOS:
