15 R1, 970 EVO Plus NVMe M.2 not fitting

Hi @VaibhavD welcome to this free user-to-user Alienware laptop discussion forum.

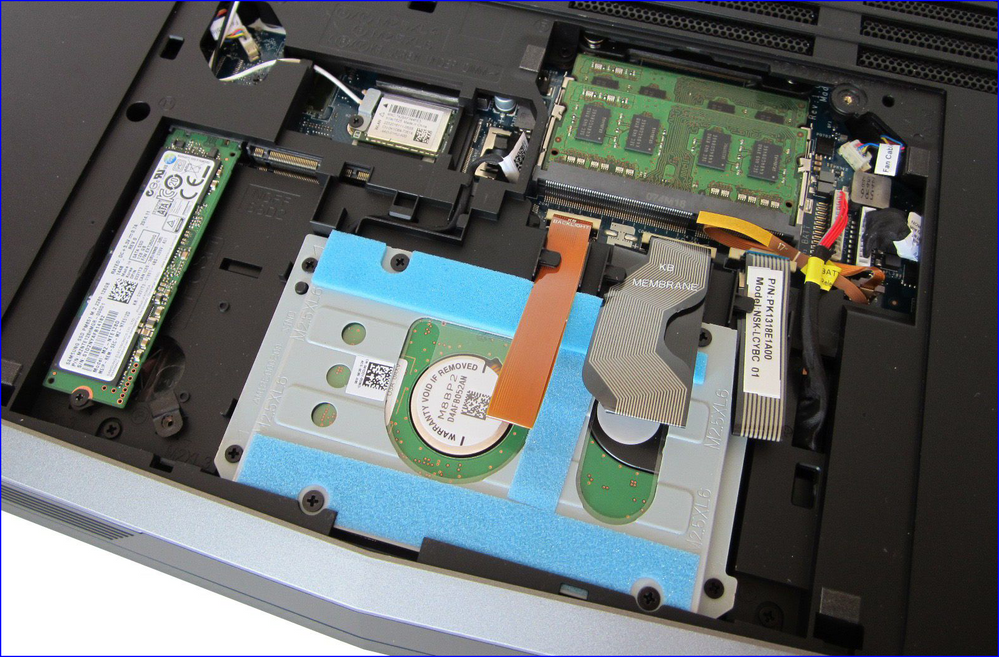

The Alienware 15 R1 (1/08/2015) has two M.2 SATA slots for Samsung PM851 cards and will not accept M.2 NVMe cards.

Alienware 15 Notebook Review - NotebookCheck.net Reviews.

hi @crimsom , but my 970 EVO Plus NVMe® M.2 SSD 2TB is an m.2 2280 type, which Alienware 15 has slot for m.2 2280

Hi @Twittface thank you for sharing question.

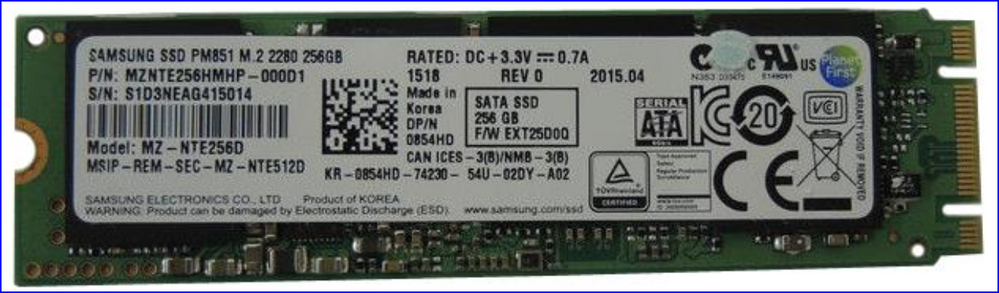

The Alienware 15 R1 (1/08/2015) has two M.2 SATA slots. My earlier post on 08-02-2023 04:58 AM includes image of the Samsung SATA SSD PM851 M.2 2280 storage card. How To Distinguish the Differences Between M.2 Cards | Dell US.

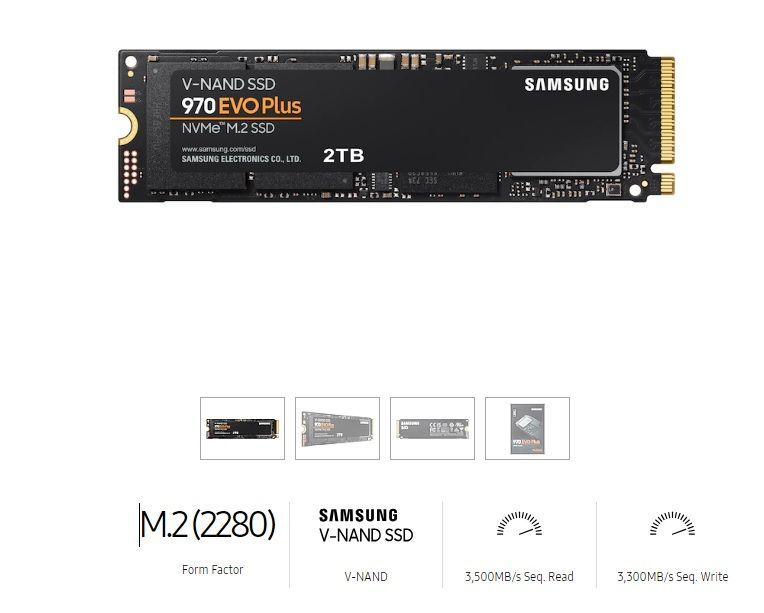

hi @crimsom , i see, but samsung says its m.2 2280 but it its not the same as the pic you post. Is my samsung 2tb still ok for Alienware 15? as it did not fit on the slot. I tried to remove the small plastic in the slot to fit my ssd, but it did not detect the ssd in the bios.

Hi @Twittface thank you for sharing additional information.

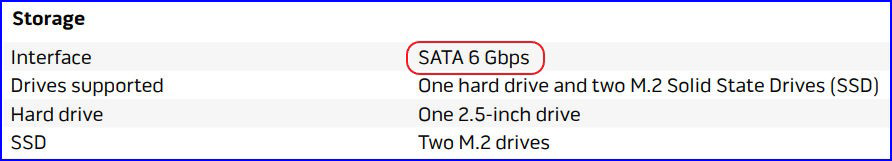

The Alienware 15 R1 (1/08/2015) has two M.2 SATA III slots. Alienware 15 Specifications (dell.com).

There are no M.2 PCIe NVMe slots, so the 2TB M.2 2280 Samsung 970 EVO Plus NVMe SSD card cannot be installed.

This is also the Solution for Re: Alienware 15 (2015) SSD M.2 nvme wont go into the slot - Dell Community.
