How to add second SSD in dell optiplex 7080 micro
How to add second M.2 SSD in 7080 optiplex micro
No Events found!
Unsolved
1 Rookie
•
10 Posts
0
1109
October 8th, 2024 15:59
How to add second M.2 SSD in 7080 optiplex micro
Top
redxps630
9 Legend
•
15.2K Posts
0
October 8th, 2024 17:14
it supports one M.2 2280 and one M.2 2230 ssd
redxps630
9 Legend
•
15.2K Posts
0
October 8th, 2024 17:15
https://www.dell.com/support/manuals/en-us/optiplex-7080-micro/optiplex7080_micro_sm/installing-the-m.2-2230-pcie-solid-state-drive?guid=guid-52fe36c9-2545-4115-b261-3a63a9b42741&lang=en-us
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 00:13
Install 2nd M.2 SSD completed, the 2nd SSD no show on Windows 11, please help!
redxps630
9 Legend
•
15.2K Posts
0
October 9th, 2024 01:01
change BIOS>sata operation to AHCI. default may be RAID. save change. exit bios reboot
(edited)
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 02:13
Checked the BIOS>sata operation to AHCI. default is RAID"
But the 2nd SSD still no show!
bradthetechnut
7 Technologist
•
9.2K Posts
0
October 9th, 2024 02:52
Does it show in Disk Management? It may need formatting before it's used for storage. Use GPT partition scheme and NTFS for file system.
redxps630
9 Legend
•
15.2K Posts
0
October 9th, 2024 03:40
besides disk mgmt
you can also check for all ssd in bios
how many M.2 ssd does it show for you?
(edited)
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 03:56

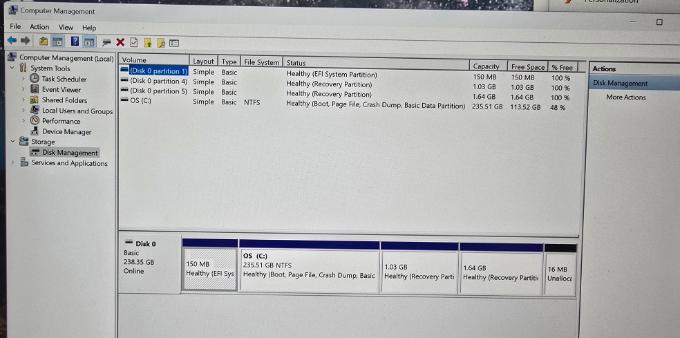

Checked disk management, no show!
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 14:13
Checked Bios and disk management, 2nd SSD no show!
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 14:13
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 14:14
redxps630
9 Legend
•
15.2K Posts
0
October 9th, 2024 15:26
it is still RAID on. you need to change it to AHCI and save change.
what about bios>system config>drive screen?
(edited)
redxps630
9 Legend
•
15.2K Posts
0
October 9th, 2024 15:39
you installed a Sandisk ssd: The SanDisk X600 3D NAND SATA SSD
that is not a NVMe ssd. it is a sata ssd. no wonder it does not show
7080 MFF does not support sata M.2 ssd. only NVMe M.2 ssd is supported.
(edited)
Patrick-Dell 7080
1 Rookie
•
10 Posts
0
October 9th, 2024 15:55
Hi! Support this one?
Samsung 1TB SSD NVME
(edited)
redxps630
9 Legend
•
15.2K Posts
0
October 9th, 2024 16:19
your other ssd is NVMe
PM9A1 is the PCIe® 4.0 NVMe™ PC SSD,
