upgrade ssd

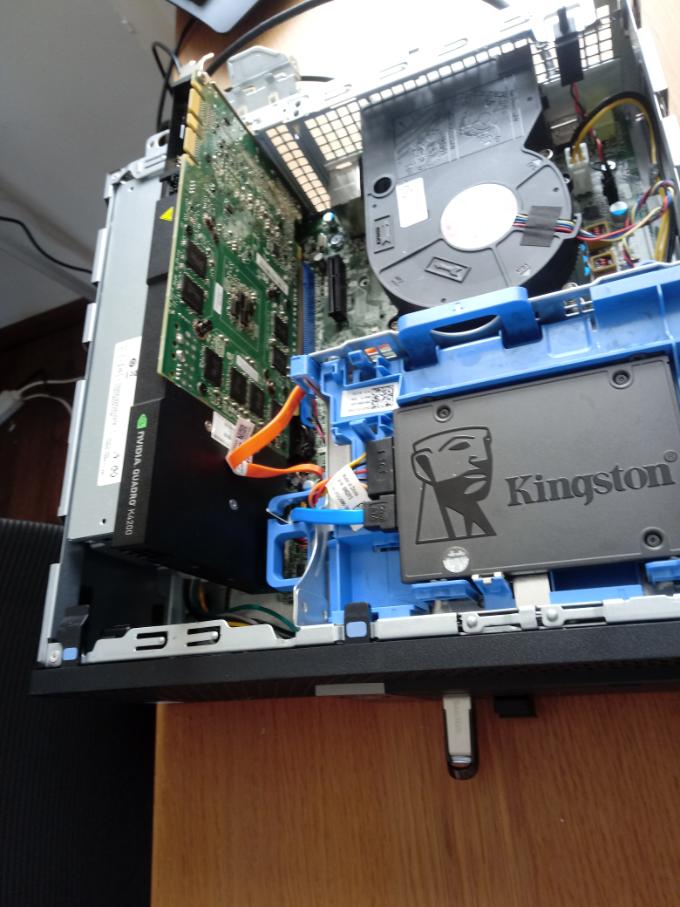

Hi , tried to upgrade my 7050 sff with a verbatim ssd nvme internal ssd M.2 pcie 3.0 256 GB . My system runs on a Kingston ssd 2.5 harddrive 256 Gb . But now the pc starts blinking orange and wont start up. What im a doing wrong?

1 Rookie

 •

23 Posts

April 9th, 2024 13:25

7 Technologist

 •

10.5K Posts

April 9th, 2024 13:33

Try replace CMOs battery w a new one then clear CMOs settings via motherboard jumper.

1 Rookie

 •

23 Posts

April 9th, 2024 13:40

Got it out but now the pc keeps on blinking orange. Even when i turn it off it starts again . So it wont turn off anymore.

1 Rookie

 •

23 Posts

April 9th, 2024 14:02

First 2 times blink and then 7 times and so on.

7 Technologist

 •

10.5K Posts

April 9th, 2024 15:29

did you replace the battery with a brand new one?  have you reset cmos settings yet using jumper?  it is called CMOS CLR jumper on mobo

(edited)

7 Technologist

 •

10.5K Posts

April 9th, 2024 15:32

2, 7 two blinks followed by a short pause, seven blinks, long pause, then repeats. Memory failures
  • The memory subsystem configuration activity is in progress. Appropriate memory modules were detected, but a memory failure has occurred.
  • If you can troubleshoot, narrow down the issue by reseating the memory modules and swapping in known good modules, if available.
  • If nothing works, replace the memory.

(edited)

1 Rookie

 •

23 Posts

April 9th, 2024 17:33

Ty,

On your photo is the dark blue thing the jumper? My pc is also making sound now when i plug in the powercable. Also changed the battery. The problem probably started because i also took one of the rams out. My question still stands about placing the new ssd in the pc. Is this possible?

7 Technologist

 •

10.5K Posts

April 9th, 2024 19:29

Yes new ssd is ok.  if you touched ram, now you need to remove all of the ram, and put only one ram back in dimm 1 slot (white).  if pc posts without amber led, put second ram back in the other white dimm slot,  repeat test after each ram is reinstalled properly.

1 Rookie

 •

23 Posts

April 10th, 2024 12:19

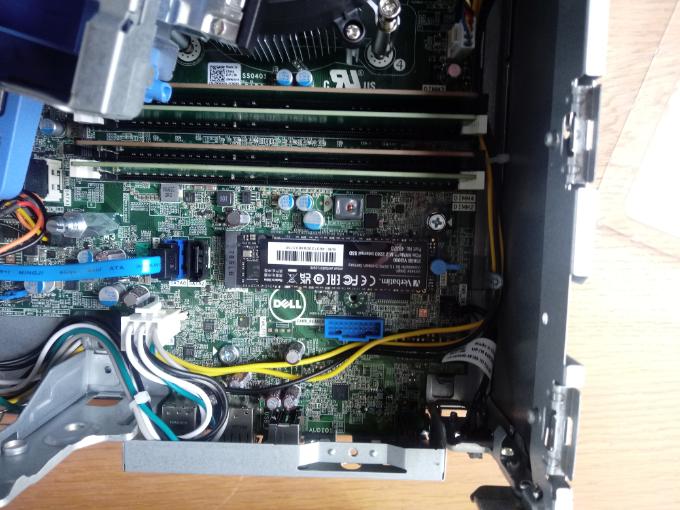

This is my motherboard so where is my jumper please?

1 Rookie

 •

23 Posts

April 10th, 2024 12:22

The blue thing om the right has six pins but you are  talking about 3.

1 Rookie

 •

23 Posts

April 10th, 2024 12:56

It still starts with the beeping sound

7 Technologist

 •

10.5K Posts

April 10th, 2024 14:34

yes the blue is jumper.  instructions on clear cmos printed on mobo.  have you tried removing all ram and test only one at a time.

1 Rookie

 •

23 Posts

April 10th, 2024 15:53

Thank you for your comments. I returned it to the seller.
