C1100 Memory problem


HI,
I recently upgraded my C1100 server's memory to 96GB, but there are several problems.


Question 1

I check the user manual, but the memory part is not understood,
I now installed the 12 * Hynix 8GB 2Rx4 PC3L-10600R-9-12-E2 memory,
Although there are 1333, but when I use aida64,CPU-Z to view the memory display is 1066.

I found a knowledge base document (www.dell.com/.../EN)
Indicate the configuration of 12 8G DDR3 1333, but without a more detailed description.

How to work at 1333?



Question 2

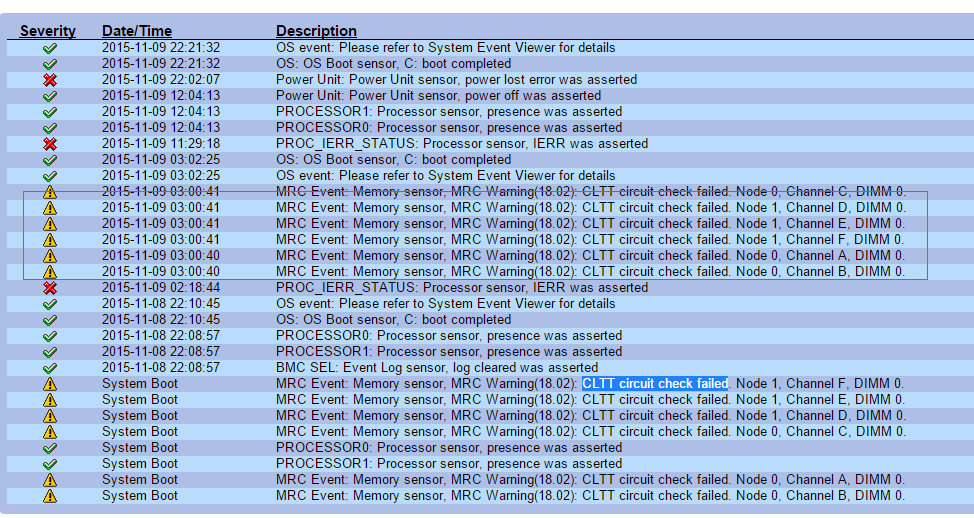

IPMI logged a memory error.

2015-11-09 03:00:41 MRC Event: Memory sensor, MRC Warning(18.02): CLTT circuit check failed. Node 0, Channel C, DIMM 0.
2015-11-09 03:00:41 MRC Event: Memory sensor, MRC Warning(18.02): CLTT circuit check failed. Node 1, Channel D, DIMM 0.
2015-11-09 03:00:41 MRC Event: Memory sensor, MRC Warning(18.02): CLTT circuit check failed. Node 1, Channel E, DIMM 0.
2015-11-09 03:00:41 MRC Event: Memory sensor, MRC Warning(18.02): CLTT circuit check failed. Node 1, Channel F, DIMM 0.
2015-11-09 03:00:40 MRC Event: Memory sensor, MRC Warning(18.02): CLTT circuit check failed. Node 0, Channel A, DIMM 0.
2015-11-09 03:00:40 MRC Event: Memory sensor, MRC Warning(18.02): CLTT circuit check failed. Node 0, Channel B, DIMM 0.








All marked memory (Each channel 0) is older groups.
This error is a warning, I normally enter the system.




BMC Version 1.86.00
Chassis Model CS24-TY
Chassis Lock Not Present
Chassis Asset Tag 0275533

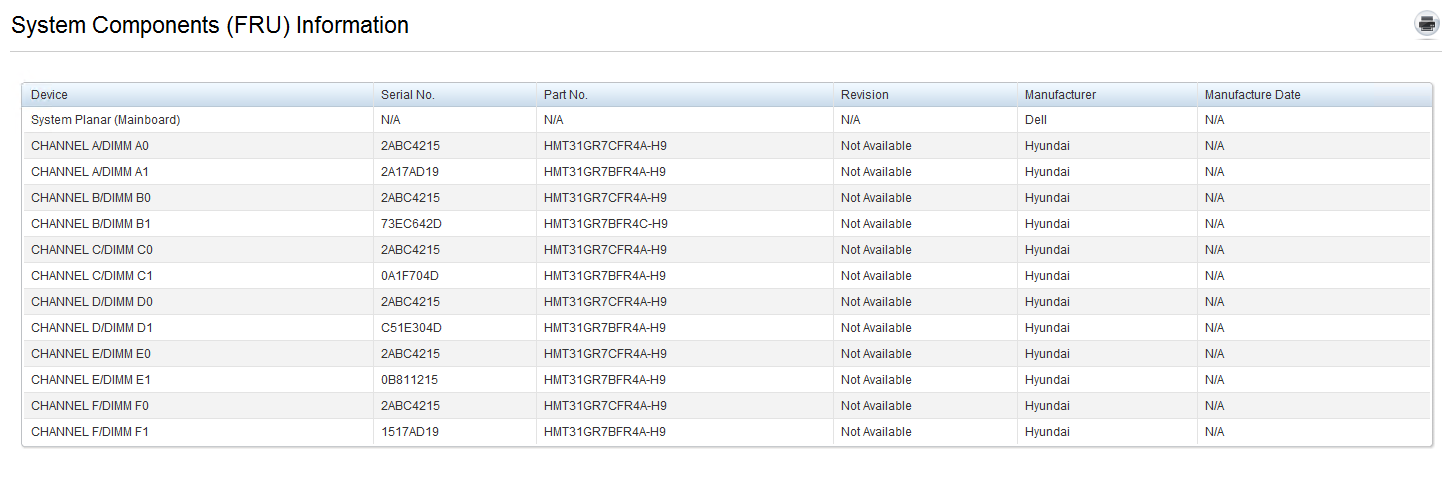

CHANNEL A/DIMM A0 2ABC4215 HMT31GR7CFR4A-H9 Not Available Hyundai N/A
CHANNEL A/DIMM A1 2A17AD19 HMT31GR7BFR4A-H9 Not Available Hyundai N/A
CHANNEL B/DIMM B0 2ABC4215 HMT31GR7CFR4A-H9 Not Available Hyundai N/A
CHANNEL B/DIMM B1 E41E704D HMT31GR7BFR4A-H9 Not Available Hyundai N/A
CHANNEL C/DIMM C0 2ABC4215 HMT31GR7CFR4A-H9 Not Available Hyundai N/A
CHANNEL C/DIMM C1 0A1F704D HMT31GR7BFR4A-H9 Not Available Hyundai N/A
CHANNEL D/DIMM D0 2ABC4215 HMT31GR7CFR4A-H9 Not Available Hyundai N/A
CHANNEL D/DIMM D1 C51E304D HMT31GR7BFR4A-H9 Not Available Hyundai N/A
CHANNEL E/DIMM E0 2ABC4215 HMT31GR7CFR4A-H9 Not Available Hyundai N/A
CHANNEL E/DIMM E1 0B811215 HMT31GR7BFR4A-H9 Not Available Hyundai N/A
CHANNEL F/DIMM F0 2ABC4215 HMT31GR7CFR4A-H9 Not Available Hyundai N/A
CHANNEL F/DIMM F1 1517AD19 HMT31GR7BFR4A-H9 Not Available Hyundai N/A














No Responses!
No Events found!
