PE R760 w/ Emulex LPe35002 HBA + 24GFD Broadcom 57414 25GbE
I have a new R760 that needs to have (Two) Emulex LPe35002 HBAs + (Two) 24GFD Broadcom 57414 25GbE installed in it. I installed the two HBAs in slots 1/2.and the Broadcom in slots 5/7 When I power on the box, I get the two Broadcom 25 GB But The hba card is one only.
Each hba card work fine but when installing the two cards only one I get
No Events found!
DELL-Young E
Moderator
•
5.3K Posts
0
November 10th, 2025 00:25
Dear customer thanks for choosing Dell and welcome to our community.
Could we ask for your service tag so that we can see the riser configuration? Please use DM to drop the tag. https://www.dell.com/community/en/direct-messaging
Dell PowerEdge R760 Installation and Service Manual | Dell US
Respectfully,
DELL-Young E
Moderator
•
5.3K Posts
0
November 10th, 2025 07:53

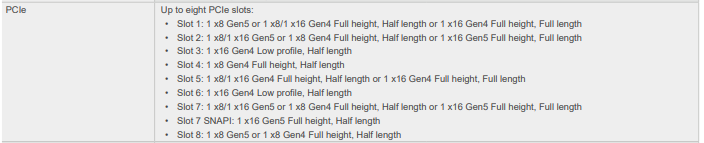

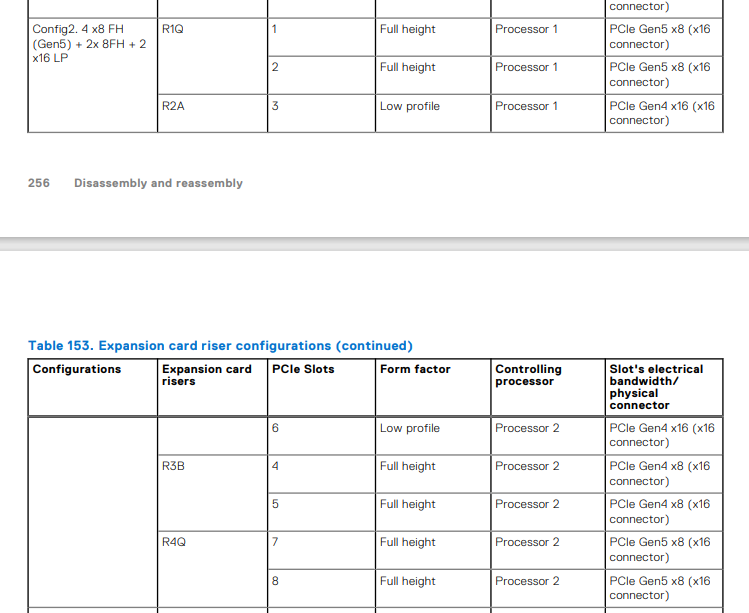

Hello, according to your service tag, you have riser config 2.
Dell PowerEdge R760 Installation and Service Manual
The following table provides guidelines for installing expansion cards to ensure proper cooling and mechanical fit. The expansion cards with the highest priority should be installed first using the slot priority indicated. All the other expansion cards should be installed in the card priority and slot priority order

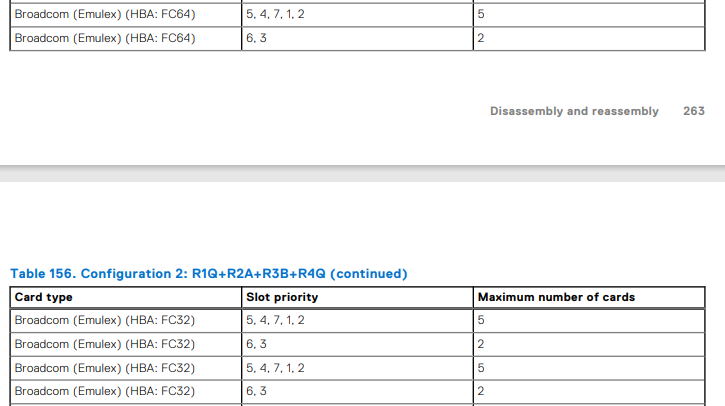

Table 156. Configuration 2: R1Q+R2A+R3B+R4Q
Page 262
Could we ask you to follow the user guide and populate cards based on slot priority? If you still have issues after that, please open the official ticket, they should be able to help you further. Your system has a valid warranty for that.
DELL-Rey G
3 Apprentice
•
1.1K Posts
0
November 13th, 2025 15:32
Which model(s) of HBA are you installing?
Rey
#Iwork4Dell
