using 2 quadro both for display output on r730

Question

I have an industrial application with machine vision. Will run 24/7, but is not 'mission critical'.

I have 8 cameras that i need to have displayed each on their own 1080p screen.

If I install windows or ubuntu directly on the bare metal of an R730 and use two Quadro P4000 gpus, can both work as video out?

So 4x 1080p displays per quadro, for 8x displays total. (not using the mobo VGA output, disable in bios)

thanks!

DELL-Young E · Answer

Hello thanks for choosing Dell and welcome to our community.

To start with, M10 is not a supported GPU for your server as you can see here.

Let us know if you have any further questions.

Respectfully,

DELL-Young E · Answer

Hello thanks for choosing Dell.

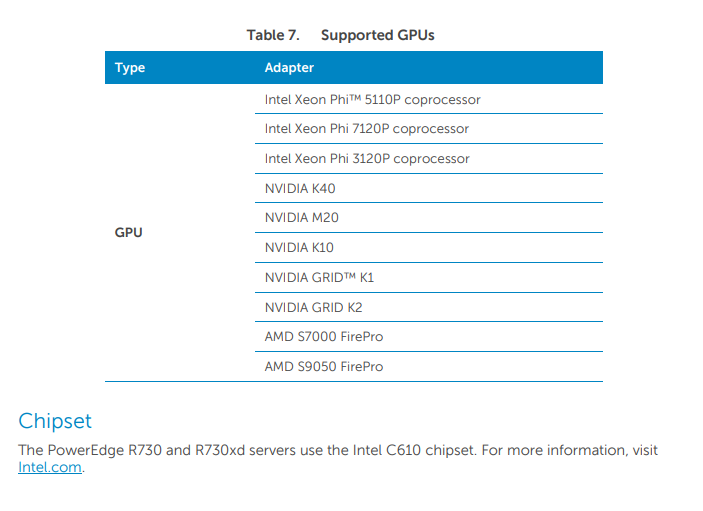

R730 GPUs supported at RTS
Nvidia	AMD	Intel Phi
Nvidia K80	AMD S9150	Intel Phi 7120P
Nvidia M60	AMD S7150	Intel Phi 3120P
Nvidia M40	AMD S7150x2
Nvidia K40M	AMD S/W9100
Nvidia GRID K1
Nvidia GRID K2

https://dell.to/3SScBpy

I'm afraid I don't see P4000.

Respectfully,

atafm2 · Answer

Hi, If I use two of those approved cards, will display output work from both cards? thanks

DELL-Chris H · Answer

atafm2,   Unfortunatly it won't. While graphic cards are supported on the server, it is to add processing power, and can't be used to replace the embedded video.    Let me know if this helps.

user_ae971c · Answer

Hey i have dell r730 with 2x Nvidia Tesla M10 GPU Accelerator. My question is can use 3 separate monitors from server like computer? if yes how can i setup? thanks
