PowerFlex 3.X: LIA Authentication Shows Invalid When The Lia_trusted_ips Option Is In Use

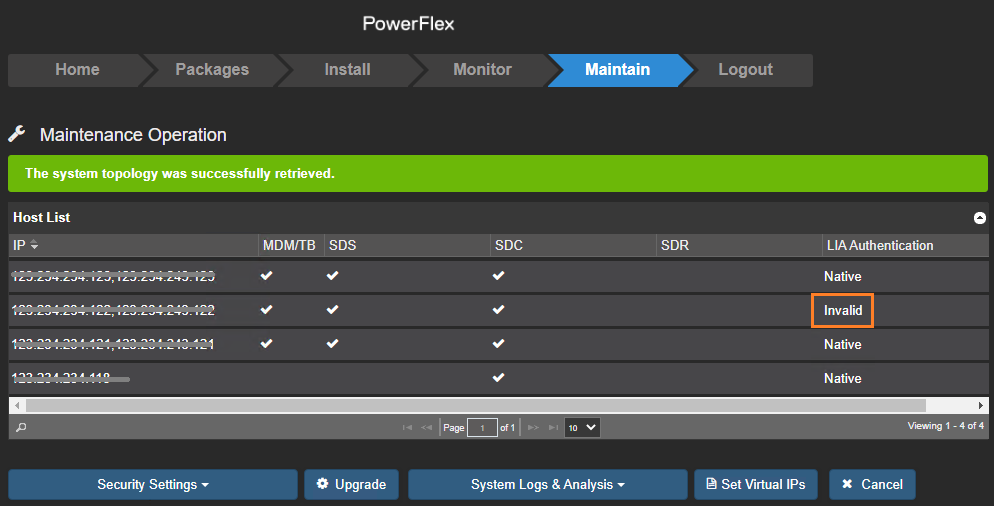

Summary: LIA Authentication field resulted in Invalid while performing "Retrieve system topology" from Gateway/Installation Manager's Maintain tab.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

Scenario

flex gateway

While the lia_trusted_ips option is being used, and when LIA authentication requests come from non-listed IP addresses.



Symptoms

Lia conf.txt showing the configured lia_trusted_ips:

lia_trusted_ips=123.234.243.124,123.234.243.125


Lia trc showing the errors as (Not in whitelist):

05/03 10:09:55.286067 7f318c198db0:netPath_StartAsServer_CK:00480:  :: Disconnected Live SERVER path 0x7f318c1cd210 of portal (nil) net 0xa3a3c0 socket 10 inflights 0 HS:0 Rejected connection from 123.234.243.126 (Not in whitelist).


Impact

Unable to collect logs using the Gateway.

Unable to complete an upgrade using the Gateway.



Root Cause

lia_trusted_ips option is specified in /opt/emc/scaleio/lia/cfg/conf.txt, but LIA authentication requests come from non-listed IP addresses.



Workaround

Reconfigure the LIA conf.txt file, add necessary IP addresses to the list of lia_trusted_ips.

(Another workaround is removing the lia_trusted_ips option from the Lia conf.txt, only if it is not necessary.)





Affected Products

PowerFlex Software
Article Properties
Article Number: 000199107
Article Type: How To
Last Modified: 27 Nov 2025
Version:  5
