DPA Deployment failed at 71

Summary: Failed to deploy DPA on IDPA 2.3 for DP4400 due to problems with SNMP on Data Domain

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

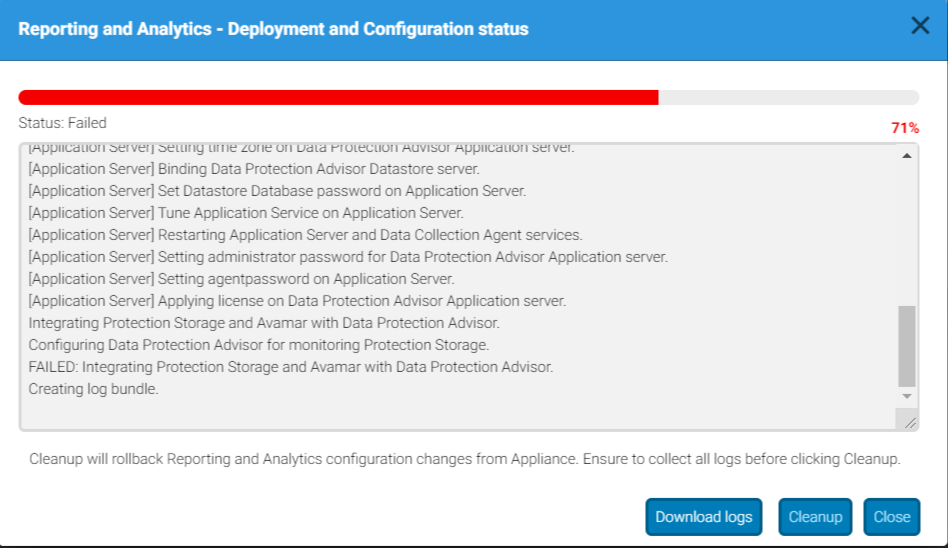

kA23a000000GEXOCA4_2_0


Below are the server.log which shows the errors after the deployment fails at 71%

2019-09-19 13:14:56,045 INFO  [Thread-14645]-util.SSHUtil:STDERR   : []
2019-09-19 13:14:56,045 ERROR [Thread-14645]-util.SSHUtil: Failed to executed remote command using SSH.
2019-09-19 13:14:56,045 INFO  [Thread-14645]-dpaadapter.DPAUtil: Failed to execute: snmp add rw-community public hosts <HOST_NAME>
2019-09-19 13:14:56,045 ERROR [Thread-14645]-dpaadapter.IntegrateDPATask: Exception occured while adding DD to DPA com.emc.vcedpa.common.exception.ApplianceException: Failed to add DPA agent.
2019-09-19 13:14:56,045 ERROR [Thread-14645]-dpaadapter.IntegrateDPATask: ApplianceException occured while integrating point products to DPA com.emc.vcedpa.common.exception.ApplianceException: Failed to add DPA agent.


Issue is with the SNMP communities while integrating DD with the DPA

The SNMP communities gets registered during DD deployment which throws the errors.

For example when we run

sysadmin@cgfnstpr2-ps1# snmp show rw-communities

Read-write Communities:
Community   Hosts
---------   ------------------------
public      <HOST_NAME>
---------   ------------------------

We can see the HOST NAME.
The deployment fails because the configuration that was trying to set was already configured, as the host name was already present.


Resolution

After the Failed deployment

Go to the DD putty and run the following commands.

1. snmp disable

2. snmp enable

3. Then try to manually delete snmp community
snmp show rw-communities
snmp del rw-community public hosts <HOST_NAME>

4. before running the configuration, make sure that
snmp show rw-communities does NOT show the <HOST_NAME>





If you face error while manually trying to add or delete the snmp community , Please involve Data Domain support for assistance.




And then redeploy the DPA from ACM it should be successful after the changes made
