VxRail: Node Add Operation Failure Error adding 3 host to the cluster. Terveydentilan seuranta on poissa käytöstä tämän tehtävän aikana"

Summary: Kun solmuja lisätään klusteriin, levyryhmän luonti epäonnistuu, mutta tehtävä on edelleen käynnissä vSpheressä.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

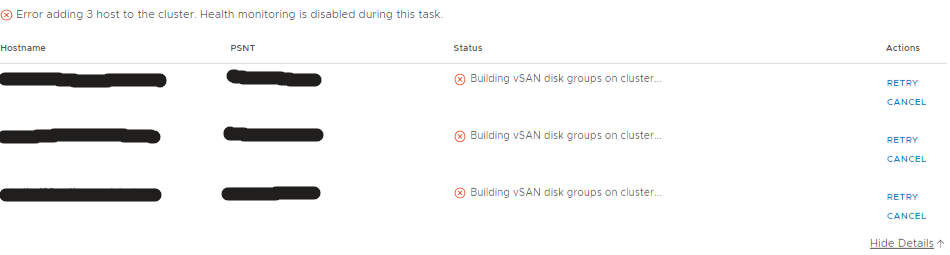

Solmun lisäys epäonnistuu VxRail-laajennuksen vSAN-levyryhmien muodostaminen klusteriin -vaiheessa:

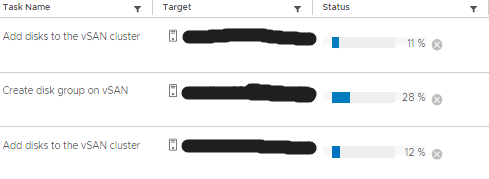

Levyryhmän luonti kuitenkin jatkuu vCenter:


short.term.log:ssä:

2022-03-02-21:56:03 microservice.nano-service "Traceback (most recent call last):"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/atomic.py"", line 236, in execute"
2022-03-02-21:56:03 microservice.nano-service "    self._return = self.perform(*args, **kwargs)"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/hostvsandiskgroupscreate/host_vsan_diskgroups_create.py"", line 214, in perform"
2022-03-02-21:56:03 microservice.nano-service "    params=(self.host_name,))"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/atomic.py"", line 278, in raise_error"
2022-03-02-21:56:03 microservice.nano-service "    raise NanoException(code=code, params=params, message=message)"
2022-03-02-21:56:03 microservice.nano-service "common.nano_exception.NanoException: {""code"": ""E3100_Storage_4"", ""params"": [""esxi-01***""], ""message"": ""Failed to create multiplue disk group esxi-01***""}"
2022-03-02-21:56:03 microservice.nano-service ""
2022-03-02-21:56:03 microservice.nano-service "[common.atomic] 2022-03-02 21:56:03,516 DEBUG 9:Dummy-374 [atomic.py:19] trigger_event(): step_message: HostVsanDiskgroupsCreate Fail."
2022-03-02-21:56:03 microservice.nano-service "[dayone] 2022-03-02 21:56:03,516 ERROR 9:Dummy-374 [utils.py:203] wrapper(): Caught for log, will raise this exception again.Traceback (most recent call last):"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/hostvsandiskgroupscreate/host_vsan_diskgroups_create.py"", line 210, in perform"
2022-03-02-21:56:03 microservice.nano-service "    do_storage.sync_call_do(do_storage.build_call_do_service_task_url(url), body, method=""POST"")"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/utils.py"", line 198, in wrapper"
2022-03-02-21:56:03 microservice.nano-service "    rets = func(*args, **kargs)"
2022-03-02-21:56:03 microservice.nano-service "  File ""/home/app/common/do.py"", line 308, in sync_call_do"
2022-03-02-21:56:03 microservice.nano-service "    'task {} for {} {} failed with timeout.'.format(task_id, method, path))"
2022-03-02-21:56:03 microservice.nano-service "Exception: task b4076ad8-d9a6-4e10-a360-aed4460e1935 for POST /rest/vxm/internal/do/v1/storage/vsan/diskgroups/initialize failed with timeout."

Cause

Taustalla oleva vSAN-ongelma, kuten hidas yhteys KMS-palvelimeen, voi pidentää tehtäväaikaa. VxRail Manager aikakatkaistaan ennen tehtävän suorittamista.

Resolution

Korjaa ongelma seuraavasti:

  1. Odota, kunnes levyryhmän luonti on valmis vCenterissä.
  2. Uudelleentehtävän yritys VxRail Manager -laajennuksesta onnistuu.

Affected Products

VxRail, VxRail Appliance Series, VxRail Software
