Data Domain: How to Configure an ECS Cloud tier with Data domain

Summary: This article goes through the process of configuring ECS cloud tier with Data Domain (DD) for cloud capacities.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

The following article goes through the steps required to configure an ECS cloud tier with Data Domain (DD).

This guide contains five steps:
  1. Add the cloud capacity license
  2. Configure the cloud local metadata for ECS
  3. Run the cloud provider verify to verify Load Balancer and ECS connections, and import the CA certificate to enable the communication between Data Domain, Load Balancer, and ECS.
  4. Create the cloud profile on Data Domain
  5. Create the cloud unit


1. Add the cloud capacity license:

1.1 Add the license:

Use the command "elicense update" to add a cloudtier-capacity license.

1.2 Verify that that license has been added:

Once added, the command "elicense show" should list the cloud capacity license similar to the following:

Screenshot of "elicense show" command



2. Configure the cloud local metadata for ECS:

2.1 Check the "addable" storage:

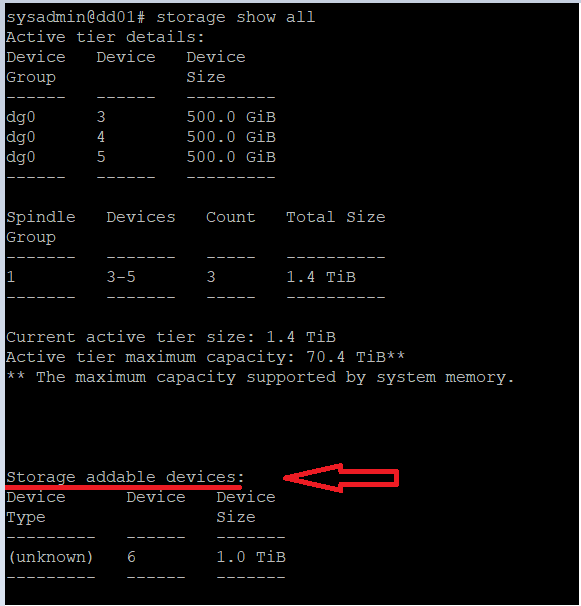

Use the "storage show all" command to list assigned and addable storage.

Screenshot of "storage show all" command

In this example it shows:
        • Devices 3-5 have already been assigned to the Active tier
        • Device 6 is a 'storage addable device'
          • Device 6 can be used to configure cloud tier local metadata.
Note: In general, the local metadata capacity for cloud tier is configured as 1/10 of the total cloud tier licensed capacity (based on the compression ratio of 10x). A portion can be configured initially and add more devices at later stages.



2.2 Create cloud tier with addable devices and form cloud local metadata:

a. Run the "storage add tier cloud" command to add the device to cloud tier as local metadata.

In this example, "dev 6" is added:

screenshot: storage add tier cloud command

b. Run the "storage show tier cloud" to verify the addition:

This is the result of adding "dev 6" as the cloud tier:

storage show tier cloud output



3. Verify Load Balancer (LB) and ECS connections.

3.1 Verify that the time on Data Domain and ECS and consistent as a time gap may cause the connection, and the next command "cloud provider verify" to fail.

3.2 Run the "cloud provider verify" command to verify Load Balancer and ECS accessibilities.

Note: Load Balancer is required as a valid setup to integrate ECS cloud with Data Domain. LB relays the connections coming from the DD to one of the ECS nodes.


There are three types of endpoint connections:
a. Nonsecure, use http port 80 for connection, no certification is required on DD.
b. SSL termination at Load Balancer, use https port 443 secure endpoint; this requires LB certificate being presented to DD (this is automatically imported during verification).
c. Full SSL secure endpoint, use https port 8443; this requires LB certificate being presented to DD and root CA for ECS being installed on Load Balancer.

 In this example, a self-signed certificate is used. (A self-signed or CA signed certificate can be used.)
      • If no port is specified in endpoint entry, when using https, by default 443 is used for verification with LB.

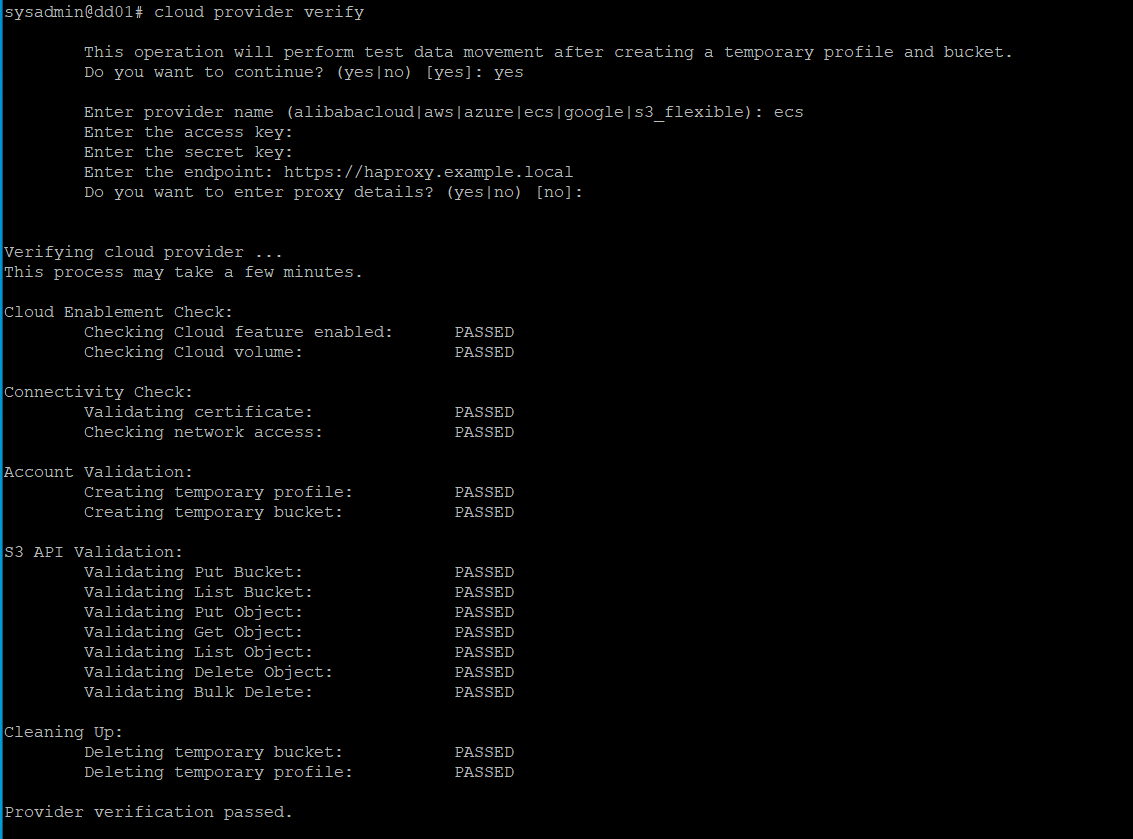

      • Access and secret keys are obtained from ECS for authentication


During the verification, the Load Balance certificate was automatically imported to Data Domain.

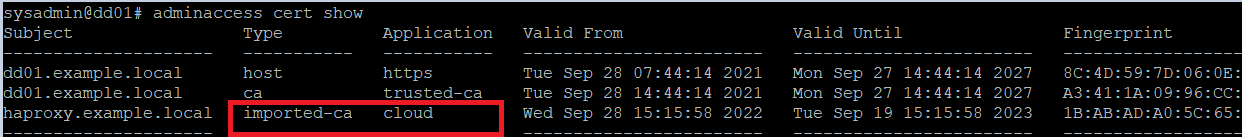

To verify, use the "adminaccess cert show" command:

output of adminaccess cert show command



4. Create the cloud profile on Data Domain:

4.1 Run the "cloud profile add" command to create a cloud profile:
(the inputs are similar to the "cloud provider verify" command.)

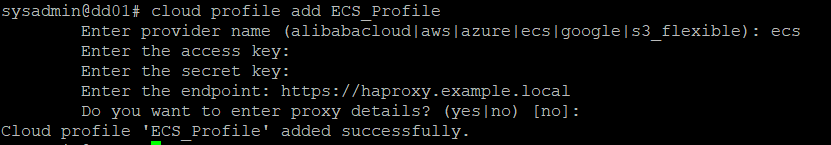

output of cloud profile add command along with questions being asked to setup profile

4.2 Run the "cloud profile show" command to verify the creation:

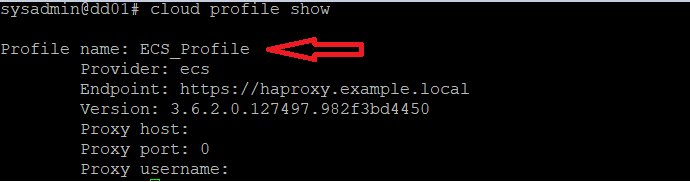

output of cloud profile add command after creating a new profile



5. Create the cloud unit on the configured cloud profile:

5.1 Run the "cloud unit add" command to create a cloud unit for the cloud profile.
(This step may take some time to complete.)

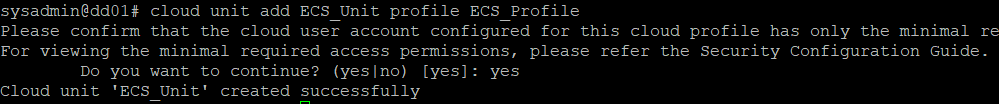

output of cloud unit add command



5.2 Run the "cloud unit list" command to verify that the cloud unit exists:

output of cloud unit list command



The ECS cloud creation process is complete, and data can begin migrating to the cloud tier.

Additional Information

For more information about the certificate requirements for a secured DD Cloud Tier connection to ECS and Best Practices, see Data Domain: Certificate requirements for secured DD Cloud Tier connection to ECS and Best Practice guide

For more information about the "Cloud Provider Verify tool", see Data Domain: How to use the Data Domain cloud provider verification tool
