ECS: CAS writes fail with 10204 error
Summary: CAS writes fail with 10204 error
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Unable to write the data.
CAS application cannot write the data to ECS when quota exceeded at the namespace level.
Error message:
CAS application cannot write the data to ECS when quota exceeded at the namespace level.
Error message:
10204 FP_OPERATION_NOT_ALLOWED
In detail:
To confirm the issue:
CASScript>po localhost?test.pea Attempting to connect to: localhost?test.pea Connected to: localhost?test.pea CASPool Properties: Connection String: localhost?test.pea Cluster Time: 2020.11.01 02:34:12 GMT Buffer Size: 16384 Prefetch Buffer Size: 32768 Connection Timeout: 120000 Multi-Cluster Failover Enabled: True Collision Avoidance Enabled: False CASScript>ftc test.pea Creating new clip with blob containing the file: test.pea SDK Error Occurred: Error Number: -10204 System Error: 18 Error: FP_OPERATION_NOT_ALLOWED Error Class: null Trace: NetworkPacket.checkControl(18)<HPPWriteBlobTransaction::run()<Cluster::writeBlob(stream,3QTQ0BLJMPL1B15EUFPAASG58K,,334,2,6QGPEE9TI6VBIu7NE36460Q8NJR,1604198057,-,-,-,-)<ClusterCloud::writeBlob(stream,3QTQ0BLJMPL1B15EUFPAASG58K,,334,2,6QGPEE9TI6VBIu7NE36460Q8NJR,1604198057,-,-,-,-)<FPTag::BlobWrite(stream,2)<FPTag_BlobWrite(-,-,0) CASScript>Bucket information:
admin@ecsnode1:/root> svc_bucket info pdc-sap-prod svc_bucket v1.0.28 (svc_tools v1.8.3) Started 2020-11-01 02:36:15 Bucket ID ns-sap.pdc-sap-prod Name pdc-sap-prod Namespace ns-sap Owner User pdc-sap-prod Owner VDC Name pdc Owner zone/VDC ID urn:storageos:VirtualDataCenterData:8bd24bf2-24ad-4815-b27d-ac83e20b4aeb Keypool Hash ID 63f35c83e68c88405602d8df3241ff67d8fef80d80a76d693c28a960fe0012c3 Bucket ACL: Type Affects Name Access Rights user file/dir pdc-sap-prod FULL_CONTROL Replication Group (vpool) Name rg-pdc-rdc Replication Group (vpool) ID urn:storageos:ReplicationGroupInfo:af31c958-bec3-454e-8b2c-e3024365c0e5:global Bucket Creation Date 2018-09-19 19:23:46 (1537385026479) Temp Failed (TSO) False API Type CAS FS Access Enabled False Encryption Enabled True Versioning State Disabled ADO Enabled False ADO Read-Only False Reflection Expiration False Reflection Age None Default FS Access permissions (for owner group): File Dir Read Write Exec Read Write Exec Unk Unk Unk Unk Unk Unk Object count 542421 Total Object Size 15000.0881 GB
To confirm the issue:
Hard Quotas exceeded on namespace ns-sap error in blobsvc:
2020-11-01T02:34:17,380 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-160-1e191963:172ad8de782:1f7:46d66] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded
2020-11-01T02:34:17,380 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-160-1e191963:172ad8de782:1f7:46d66] ERROR ListingDirectoryRequestHandler.java (line 109) handleObjectListEntryCreateRequest processing request 1e191966:172ae220b30:231:3041b5 caught exception {}
com.emc.storageos.data.object.exception.ObjectControllerException: Hard Quota exceeded on namespace ns-sap, object operation failed
at com.emc.storageos.data.object.impl.file.directoryTable.FileDirectoryImpl.checkHardQuota(FileDirectoryImpl.java:1915)
at com.emc.storageos.data.object.impl.file.directoryTable.FileDirectoryImpl.validateKeyPool(FileDirectoryImpl.java:1875)
at com.emc.storageos.data.object.impl.file.directoryTable.BlobsvcOperationBase.getAndValidateKeyPool(BlobsvcOperationBase.java:1058)
at com.emc.storageos.data.object.impl.file.directoryTable.BlobsvcOperationBase.getAndValidateKeyPool(BlobsvcOperationBase.java:1038)
at com.emc.storageos.data.object.impl.file.directoryTable.BlobsvcOperationBase.getAndValidateKeyPool(BlobsvcOperationBase.java:1029)
at com.emc.storageos.data.object.impl.operations.local.CreateListingEntry.createObjectListEntry(CreateListingEntry.java:48)
at com.emc.storageos.data.object.directoryService.impl.ListingDirectoryRequestHandler.handleObjectListEntryCreateRequest(ListingDirectoryRequestHandler.java:106)
at com.emc.storageos.data.object.directoryService.impl.FileDirectoryRequestHandler.doHandleRequest(FileDirectoryRequestHandler.java:267)
at com.emc.storageos.data.object.directoryService.impl.AbstractDirectoryRequestHandler.handleRequest(AbstractDirectoryRequestHandler.java:87)
at com.emc.storageos.data.object.directoryService.impl.CompositeDirectoryRequestHandler.handleRequest(CompositeDirectoryRequestHandler.java:53)
at com.emc.storageos.data.object.directoryService.impl.RemoteRequestProcessorBlobSvc.handleRequest(RemoteRequestProcessorBlobSvc.java:96)
at com.emc.storageos.data.object.communicator.AbstractRequestProcessor.handleRemoteRequest(AbstractRequestProcessor.java:226)
at com.emc.storageos.data.object.communicator.impl.RemoteDataNodeCommunicator.enqueueAndSend(RemoteDataNodeCommunicator.java:202)
at com.emc.storageos.data.object.directoryclient.OldRoutingClientBase._sendAndWaitForResponse(OldRoutingClientBase.java:241)
at com.emc.storageos.data.object.directoryclient.OldRoutingClientBase._sendAndWaitForResponseHelper(OldRoutingClientBase.java:500)
at com.emc.storageos.data.object.directoryclient.OldRoutingClientBase.sendAndWaitForResponseWithRetry(OldRoutingClientBase.java:687)
at com.emc.storageos.data.object.directoryclient.OldRoutingClientBase.sendAndWaitForResponseWithRetryAndUpdate(OldRoutingClientBase.java:1023)
at com.emc.storageos.data.object.directoryclient.OldRoutingClientBase.sendAndWaitForResponseWithRetryAndUpdate(OldRoutingClientBase.java:1112)
at com.emc.storageos.data.object.directoryclient.OldRoutingClientBase.sendAndWaitForResponseWithRetryAndUpdate(OldRoutingClientBase.java:1103)
at com.emc.storageos.data.object.directoryService.impl.DirectoryClient.insertObjectListEntry(DirectoryClient.java:1522)
at com.emc.storageos.data.object.directoryService.impl.DirectoryClient.insertObjectListEntry(DirectoryClient.java:1474)
at com.emc.storageos.data.object.directoryService.impl.CreateListEntryTask.sendRequest(CreateListEntryTask.java:191)
at com.emc.storageos.data.object.impl.file.directoryTable.ObjectDirectoryOperation.createListEntry(ObjectDirectoryOperation.java:941)
at com.emc.storageos.data.object.impl.file.directoryTable.ObjectDirectoryOperation.createListEntry(ObjectDirectoryOperation.java:890)
at com.emc.storageos.data.object.impl.file.directoryTable.ObjectDirectoryOperation.createObject(ObjectDirectoryOperation.java:184)
at com.emc.storageos.data.object.directoryService.impl.ObjectDirectoryRequestHandler.handleObjectCreateRequest(ObjectDirectoryRequestHandler.java:173)
at com.emc.storageos.data.object.directoryService.impl.FileDirectoryRequestHandler.doHandleRequest(FileDirectoryRequestHandler.java:227)
at com.emc.storageos.data.object.directoryService.impl.AbstractDirectoryRequestHandler.handleRequest(AbstractDirectoryRequestHandler.java:87)
at com.emc.storageos.data.object.directoryService.impl.CompositeDirectoryRequestHandler.handleRequest(CompositeDirectoryRequestHandler.java:53)
at com.emc.storageos.data.object.directoryService.impl.RemoteRequestProcessorBlobSvc.handleRequest(RemoteRequestProcessorBlobSvc.java:96)
at com.emc.storageos.data.object.communicator.AbstractRequestProcessor.handleRemoteRequest(AbstractRequestProcessor.java:226)
at com.emc.storageos.data.object.communicator.impl.RemoteOperationProcessor$RequestProcessor.run(RemoteOperationProcessor.java:350)
at com.emc.storageos.data.object.communicator.impl.RemoteOperationProcessor$RequestProcessor.call(RemoteOperationProcessor.java:328)
at com.emc.storageos.data.object.communicator.impl.RemoteOperationProcessor$RequestProcessor.call(RemoteOperationProcessor.java:318)
at java.util.concurrent.FutureTask.run(FutureTask.java:266)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
Blobsvc error:
admin@ecsnode1:~> svc_log -f 'write is disabled on the namespace due to hard quota being exceeded' -sr blobsvc svc_log v1.0.24 (svc_tools v1.8.3) Started 2020-11-01 03:11:29 Running on nodes: <All nodes> Time range: 2020-10-31 03:11:29 - 2020-11-01 03:11:29 Filter string(s): 'write is disabled on the namespace due to hard quota being exceeded' Show nodename(s): True Search reclaim logs (if any): False 169.254.1.1 2020-10-31T23:55:32,100 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-107-1e191964:172addae669:212:46550] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.1 2020-11-01T01:20:39,111 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-1286-1e191963:172ad8de782:2e1:46d7b] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.2 2020-10-31T23:43:29,414 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-2833-1e191964:172addae669:224:46493] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.2 2020-11-01T00:06:52,864 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-1899-1e191966:172ae22875d:262:4491a] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.2 2020-11-01T01:07:46,156 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-790-1e191963:172ad8de782:20e:469ab] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.3 2020-11-01T01:01:58,005 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-2616-1e191966:172ae22875d:2f2:44ba9] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.3 2020-11-01T02:34:20,733 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-2557-1e191966:172ae22875d:1c5:44cdd] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.4 2020-10-31T22:19:37,303 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-1870-1e191964:172addae669:256:45e4e] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.5 2020-11-01T00:33:28,036 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-2807-1e191964:172addae669:30d:465b3] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded 169.254.1.5 2020-11-01T02:34:17,380 [TaskScheduler-BlobService-COMMUNICATOR-ParallelExecutor-160-1e191963:172ad8de782:1f7:46d66] ERROR FileDirectoryImpl.java (line 1914) Object operation failed on namespace ns-sap since write is disabled on the namespace due to hard quota being exceeded
Cause
10204 error is expected when the quota is reached.
Resolution
The user had to change the namespace quota. Previously they had set it to block access at 15,000 GB. They reset it to notification only at 15,000 GB (or they could have also increased the quota to a higher value). After this change the writes worked:

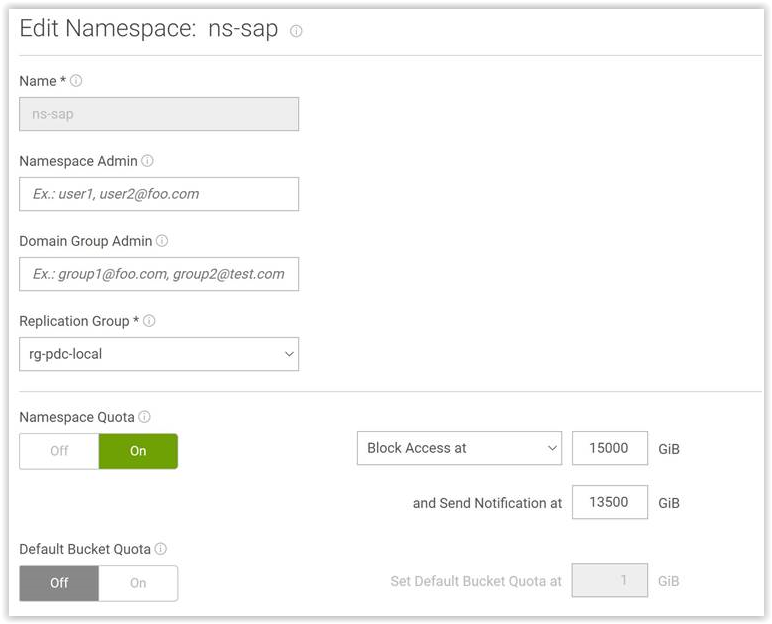

Change from:

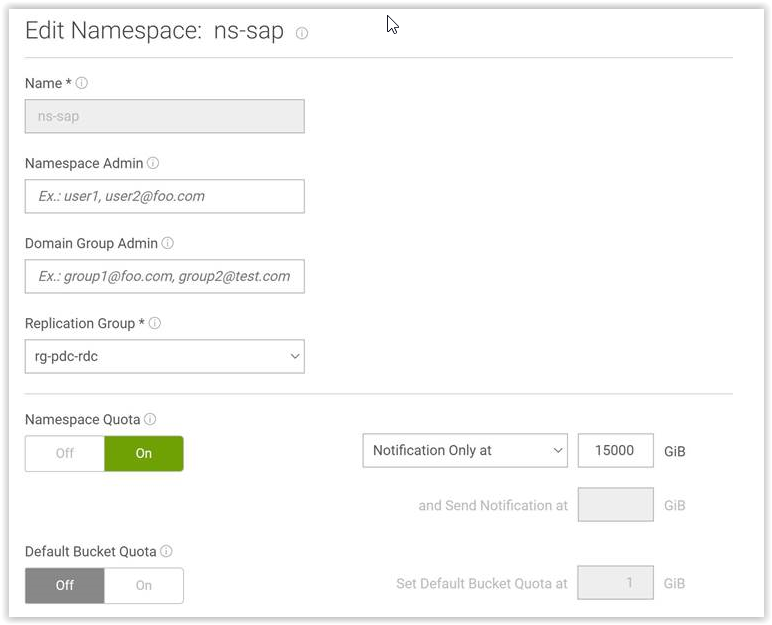

To:
To avoid this issue, we can also increase the quota to a higher value.
