Bereich RecoverPoint Classic – Registered Storage wird leer angezeigt.

Summary: In Unisphere for RecoverPoint werden unter dem registrierten RPA-Clusterspeicher keine Speicherdetails angezeigt.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

In Unisphere for RecoverPoint werden unter dem registrierten RPA-Clusterspeicher keine Speicherdetails angezeigt.

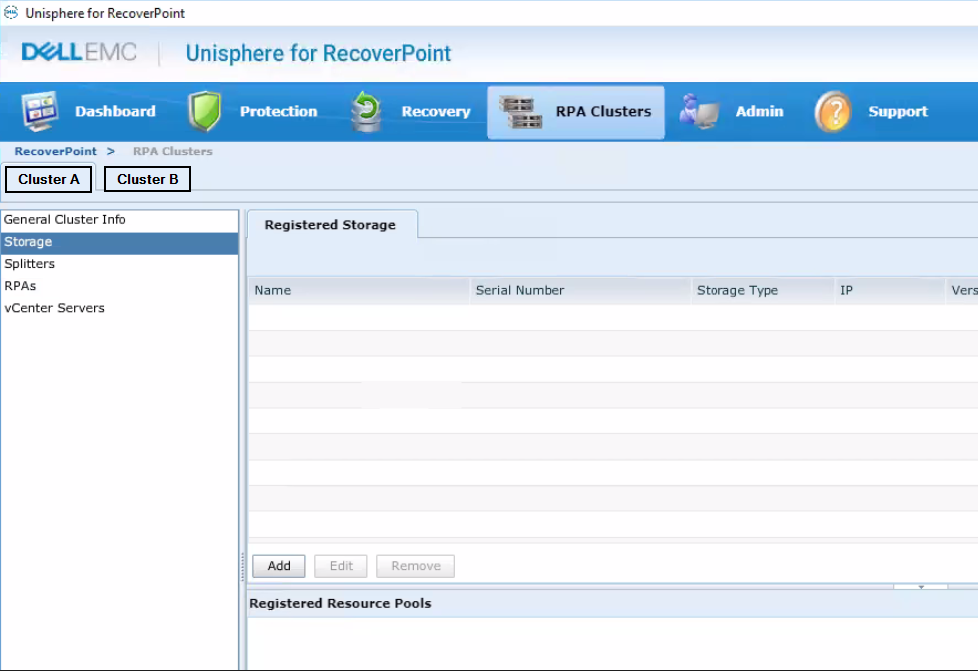

Unisphere-Informationen zeigen keine Details zum registrierten Speicher für die RPA-Cluster an
Abbildung 1: Unisphere-Informationen zeigen keine Details zum registrierten Speicher für die RPA-Cluster an

In den Speicherdetails sollten Speicherinformationen vorhanden sein (der Typ der Speichergeräte kann sich je nach Ihrer Umgebung ändern).

Cause

Beim Überprüfen von RecoverPoint-Protokollen werden möglicherweise die folgenden Einträge angezeigt:
Log location /home/kos/control/result.log.gz and /home/kos/mirror/result.log.gz:


2023/01/18 09:07:59.452 - #1 - 6819/6148 - ScsiInitiator: handle_input: TIMEOUT path = (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)
2023/01/18 09:07:59.453 - #2 - 7058/6148 - MultiPath: MPVolumeConnectedState::handleBadPath removing path (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)0xaaaabee482eb0101 (StorageType=KBOX, revision= a_volume = 0xaaaabee482eb0101 (StorageType=KBOX, revision=
2023/01/18 09:07:59.453 - #2 - 7058/6148 - MultiPath: PathSwitcher::removePath (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)0xaaaabee482eb0101 (StorageType=KBOX, revision= i = 0


Log location /home/kos/klr/result.log.gz:


2023/01/18 04:39:29.122 - sll - 0/0 - #2 - hba_0_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.122 - sll - 4253/4004 - #2 - hba_0_0: sll_handle_els_24xx: PRLI adding port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000
2023/01/18 04:39:29.122 - sll - 4253/4004 - #2 - hba_0_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:29.123 - sll - 0/0 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.124 - sll - 0/0 - #2 - hba_2_0: sll_handle_els_24xx: PRLI adding port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000
2023/01/18 04:39:29.124 - sll - 0/0 - #2 - hba_2_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: sll_fabric_login: trying fabric login loop_id=133 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - pdb: hba_0_0: sll_fabric_attempt_to_add_to_pdb: device returned loop_id 0 for port_id 0xe3e00 wwn=0x5001248000205a03 - retry login
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: sll_fabric_login: trying fabric login loop_id=0 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - pdb: hba_0_0: sll_fabric_attempt_to_add_to_pdb: new loop_id=0 for port_id=0xe3e00 wwn=0x5001248000205a03 bInUse=1
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: sll_fabric_login: trying fabric login loop_id=133 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - pdb: hba_2_0: sll_fabric_attempt_to_add_to_pdb: device returned loop_id 0 for port_id 0xe3e00 wwn=0x5001248000205a03 - retry login
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: sll_fabric_login: trying fabric login loop_id=0 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - pdb: hba_2_0: sll_fabric_attempt_to_add_to_pdb: new loop_id=0 for port_id=0xe3e00 wwn=0x5001248000205a03 bInUse=0
2023/01/18 04:39:49.163 - sll - 3794/3794 - #2 - hba_2_0: PDB_RemoveDevicesNotInNS: wwn 0x5001248000205a03 port_id 0x0e3e00 loop_id 0 not in ns - remove it from PDB
2023/01/18 04:39:49.164 - sll - 3792/3792 - #2 - hba_0_0: PDB_RemoveDevicesNotInNS: wwn 0x5001248000205a03 port_id 0x0e3e00 loop_id 0 not in ns - remove it from PDB
2023/01/18 04:39:49.201 - sll - 4593/4004 - #2 - sll_ioctl_set_kbox_paths: path: 0 can't be resolved for (hba: 0:ffff8807fa700000, vp: 0, wwn: 0x5001248000205a03)

2023/01/18 04:25:24.143 - sll - 25719/25719 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.122 - sll - 0/0 - #2 - hba_0_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.123 - sll - 0/0 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:15:40.607 - sll - 0/0 - #2 - hba_2: sll_handle_ctio_ret: WARNING: ctio failed(status=0x2) cdb=(2a 0 0 0 0 0 0 0 1) timestamp=(time=0 trans=0 data=0) lun=0xbbbbbbbbbbbbbb52 iid=0 initiator=0x5001248000205a03


Log location /spa/EMC/CEM/log/cemtracer_health_services.log:

Line 28: 18 Jan 2023 04:29:02  - [Health] INFO - {0:45928:894976145}[26373|17535|d37feb40][findRuleInRuleVector @ ../../../components/providers/osls/Health/src/Rule.cpp:119] Rule found Rule[ state=0x8000 log=0x140006000a severity=6 health=10 descr=ALRT_INITIATOR_NO_LOGGED_IN_PATH res=initiator_fix_connection]  for 50:01:24:80:00:20:5A:02:50:01:24:80:00:20:5A:03 OperationalStatus: 0x8000
Die Protokolle weisen darauf hin, dass ein Portkommunikationsproblem vorliegt.

Die Überprüfung der Fabric zeigt an, dass bei einem Port Verbindungsprobleme auftreten:
Interrupts:        13003      Link_failure: 10         Frjt:         0

Unknown:           0          Loss_of_sync: 0          Fbsy:         0

Lli:               13003      Loss_of_sig:  60

Resolution

Problemumgehung:
Um das Problem mit der Portkonnektivität zu beheben, suchen Sie nach Kabel- oder SFP-Problemen und ersetzen Sie sie.

Auflösung:
Es ist keine Änderung auf RecoverPoint-Ebene erforderlich, da Konnektivitätsprobleme das Problem verursachen.

Affected Products

RecoverPoint Gen6 Server
