Powerflex 4.X Unable to add existing MDS RG Missing Defined Network
Summary: Unable to complete adding an existing resource group wizard for a PowerFlex MDS system. Scenario The PowerFlex MDS or Production system was manually deployed or removed from PFxM and PFxM is ready to add it as a resource group. The SVM and Hypervisor Management networks share the same VLAN and are on the same vSwitch port group. ...
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms

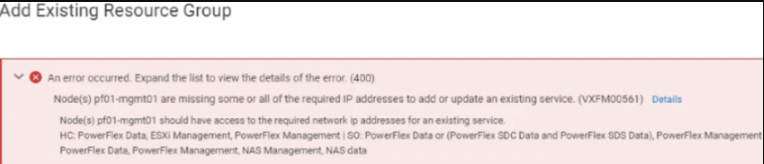

Screenshot showing that some or all the required IP addresses to add or update an existing service are missing: (VXFM00561)
Impact
Unable to ingest the MDS system as a resource group.
Cause
To include an existing resource group, the wizard expects to have all the necessary network objects associated with the PowerFlex system. For instance, the PowerFlex system uses network types such as vMotion, PowerFlex Management, PowerFlex Data1, PowerFlex Data2, and Hypervisor Management. In this specific case, the vSwitch in vCenter had a single port group containing both Hypervisor Management and PowerFlex Management. The wizard only included a dropdown item for the Hypervisor Management network type, omitting the dropdown object for PowerFlex Management. All network types linked to PFxM are essential for properly incorporating the PowerFlex system as a resource group.
Resolution
In vCenter, create another port group on the same vSwitch and separate the PowerFlex Management and Hypervisor Management networks.
The SVMs must point to the newly created port group.
In PFxM, run inventory on vCenter
Attempt to ingest the PowerFlex system as a resource group.
Additional Information
Impacted Versions
PowerFlex Manager 4.x
Affected Products
PowerFlex rack, PowerFlex Appliance, PowerFlex custom nodeProducts
PowerFlex appliance R650, PowerFlex appliance R6525, PowerFlex appliance R660, PowerFlex appliance R6625, Powerflex appliance R750, PowerFlex appliance R760, PowerFlex appliance R7625, PowerFlex custom node, PowerFlex custom node R650
, PowerFlex custom node R6525, PowerFlex custom node R660, PowerFlex custom node R6625, PowerFlex custom node R750, PowerFlex custom node R760, PowerFlex custom node R7625, VxFlex Ready Node, VxFlex Ready Node R640, VxFlex Ready Node R740xd, PowerFlex appliance R640, PowerFlex appliance R740XD, PowerFlex appliance R7525, PowerFlex appliance R840, VxFlex Ready Node R840
...
