Avamar: SSH 클라이언트가 인증되지 않음 오류로 인해 Data Domain 업데이트 실패

Summary: 이 문서에서는 Avamar Server에서 Data Domain을 편집하면 'SSH 클라이언트가 인증되지 않음' 때문에 'Update Data Domain failed' 오류가 발생하는 문제에 대해 설명합니다. Avamar에 새 Data Domain을 추가할 때 장애 메시지는 다음과 같습니다. "Data Domain 시스템에 SNMP 커뮤니티 문자열을 추가할 수 없습니다." ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

AUI(Avamar User Interface)를 사용하여 Data Domain을 편집할 때 작업이 실패하고 오류가 표시됩니다. Update DataDomain failed.

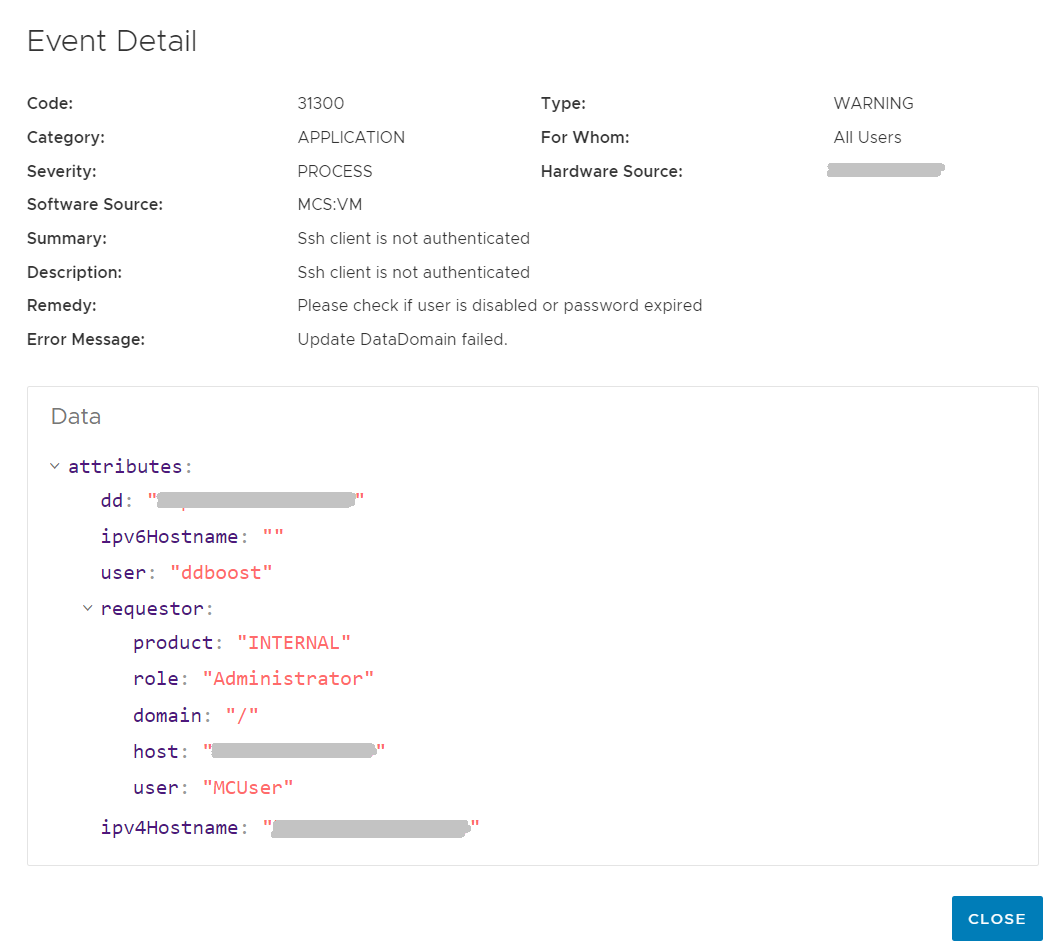

AUI에서 Data Domain을 편집하면 오류 메시지가 표시됩니다.

이 /usr/local/avamar/var/mc/server_log/mc-rest-api.log 보여 줍니다:
2024-12-18 15:01:54.077  WARN 8841 --- [AsyncTask-1] com.avamar.mc.api.task.AsyncTask: Unexpected error occurred in async task
com.avamar.mc.api.core.exception.RestClientException: Update DataDomain failed.
        at com.avamar.mc.api.datadomain.service.DataDomainServiceImpl.updateDataDomain(DataDomainServiceImpl.java:192)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
        at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:198)
        at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
        at org.springframework.aop.interceptor.AsyncExecutionInterceptor.lambda$invoke$0(AsyncExecutionInterceptor.java:115)
        at org.springframework.aop.interceptor.AsyncExecutionAspectSupport.lambda$doSubmit$3(AsyncExecutionAspectSupport.java:276)
        at java.util.concurrent.CompletableFuture$AsyncSupply.run(CompletableFuture.java:1604)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:750)

2024-12-18 15:01:54.079  WARN 8841 --- [AsyncTask-1] com.avamar.mc.api.task.AsyncTask : Task.Error(code=31300, exception=com.avamar.mc.api.core.exception.RestClientException: Update DataDomain failed., details=null, event=Event(id=3984576, time=1734555714069, code=31300, category=APPLICATION, type=WARNING, severity=PROCESS, summary=Ssh client is not authenticated, domain=/, hasData=No, swSource=MCS:VM, source=EventSource(nodeId=av-server, programName=com.avamar.mc.datadomain.DataDomainService, sourceHardwareId=CKM01234567890_100-580-846-00-FFF, hardwareId=CKM01234567890_100-580-846-00-FFF, ddrName=dd-srv.lab.com, ddrId=8E72DC56A503F3865A0A418BFEF9414E3A4D7981, gsanVersion=19.10.0-135), data=EventData(attributes={dd=dd-srv.lab.com, ipv6Hostname=, user=ddboost, requestor={product=INTERNAL, role=Administrator, domain=/, host=192.168.1.110, user=MCUser}, ipv4Hostname=dd-srv.lab.com}), dataList=null, principal=UserPrincipal(id=69d23d7e-567e-4f98-ae2e-17367ec68f80, name=MCUser, domain=/, host=/192.168.1.110, product=INTERNAL, productVersion=null, role=ROOT), detail=null))
이 /usr/local/avamar/var/mc/server_log/mcserver.log.0 다음 예외를 표시합니다.
Unsupported type: OPENSSH PRIVATE KEY

10/24-13:53:03.00526 [RMI TCP Connection(2239)-192.168.1.110#50125] com.avamar.mc.datadomain.DataDomainService._updateDdr
FINE: Validate key based ssh connection when updating ddr
10/24-13:53:03.00526 [RMI TCP Connection(2239)-192.168.1.110#50125] com.avamar.asn.service.ServiceContainerImpl.getService
FINE: Service get initiated to service: com.avamar.mc.prefs.MCSPreferencesService
10/24-13:53:03.00526 [RMI TCP Connection(2239)-192.168.1.110#50125] com.avamar.asn.service.ServiceContainerImpl.getService
FINE: Service get completed for service: com.avamar.mc.prefs.MCSPreferencesService
10/24-13:53:03.00526 [RMI TCP Connection(2239)-192.168.1.110#50125] com.avamar.mc.datadomain.DdrSshUtils.loadJ2sshLicense
INFO: Successfully load j2ssh license
10/24-13:53:03.00601 [RMI TCP Connection(2239)-192.168.1.110#50125] com.avamar.mc.util.MCException.logException
WARNING: com.sshtools.publickey.InvalidPassphraseException: Unsupported type: OPENSSH PRIVATE KEY
  at com.sshtools.publickey.OpenSSHPrivateKeyFile.toKeyPair(OpenSSHPrivateKeyFile.java:79)
  at com.avamar.mc.datadomain.DdrSsh.createSshClient(DdrSsh.java:140)
  at com.avamar.mc.datadomain.DdrSsh.createSshClient(DdrSsh.java:189)
  at com.avamar.mc.datadomain.DdrSsh.validateCredentials(DdrSsh.java:283)
  at com.avamar.mc.datadomain.DataDomainService.validateKeyBasedSshConnection(DataDomainService.java:3563)
  at com.avamar.mc.datadomain.DataDomainService._updateDdr(DataDomainService.java:1179)
  at com.avamar.mc.datadomain.DataDomainService.updateDdr(DataDomainService.java:1036)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  at java.lang.reflect.Method.invoke(Method.java:498)

Cause

최신 OS 보안 롤업에는 새로운 버전의 OpenSSH가 포함되어 있습니다.

이전 OS 보안 롤업 버전에 표시되는 내용 OpenSSH_7.2p2:
admin@av-serveradmin@av-server:~/>: awk -F'"' '/<package-survey/ {print $2}' /usr/local/avamar/var/package-survey-*post_errata* |sort|tail -1
2023-R3-v4
admin@av-server:~/>: ssh -V
OpenSSH_7.2p2, OpenSSL 1.0.2p-fips  14 Aug 2018 (OwB:1.5.9.0, BSAFE Micro Edition Suite:5.0.1.0)
admin@av-server:~/>:
최신 OS 보안 롤업 버전에 표시되는 내용 OpenSSH_8.4p1:
admin@av-server:~/>: awk -F'"' '/<package-survey/ {print $2}' /usr/local/avamar/var/package-survey-*post_errata* |sort|tail -1
2024-R3-v4
admin@av-server:~/>:
admin@av-server:~/>: ssh -V
OpenSSH_8.4p1, OpenSSL 1.1.1d  10 Sep 2019
admin@av-server:~/>:

MCS(Management Console Server)는 헤더가 OPENSSH인 개인 키를 지원하지 않으며 RSA만 지원합니다.

Resolution

이 문제는 편집이 필요합니다. mcddrcreate_sshkey 파일 및 재생성 ddr_key을 클릭합니다.

Dell 지원에 문의하고 이 문서 ID를 참조하십시오. 편집은 Dell 지원팀에서 수행해야 합니다.

Affected Products

Avamar, Avamar Server
