Latitude 5510: Visual Guide to your Computer
Summary: The following article provides a visual guide to your Latitude 5510 Notebook Computer and lists the external ports and features of your laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description about each location, go to the laptop manual at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Cause
Front View

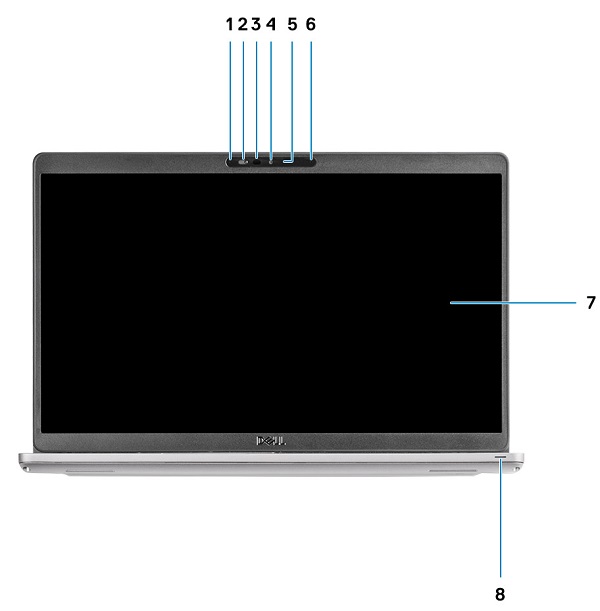

(Figure.1 Front View)
| 1 | Array Microphone | 2 | Camera Shutter |
| 3 | Infrared (IR) Emitter (Optional) | 4 | Camera |
| 5 | Camera Status LED | 6 | Array Microphone |
| 7 | Display | 8 | LED Activity Light |
Top View

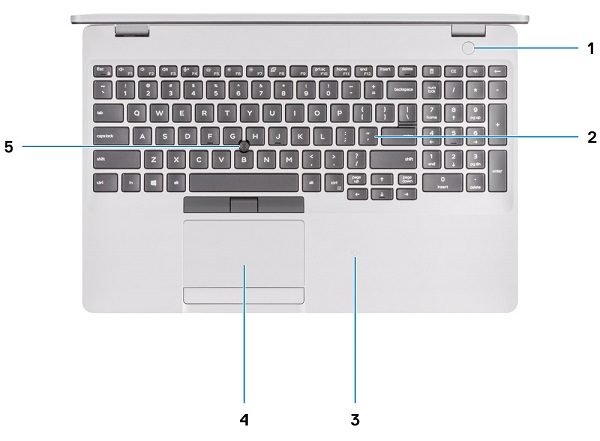

(Figure.2 Top View)
| 1 | Power Button w/Fingerprint Reader (Optional) | 2 | Keyboard |
| 3 | NFC w/Contactless SmartCard Reader (Optional) | 4 | Touchpad |
| 5 | TrackPoint |
Bottom View

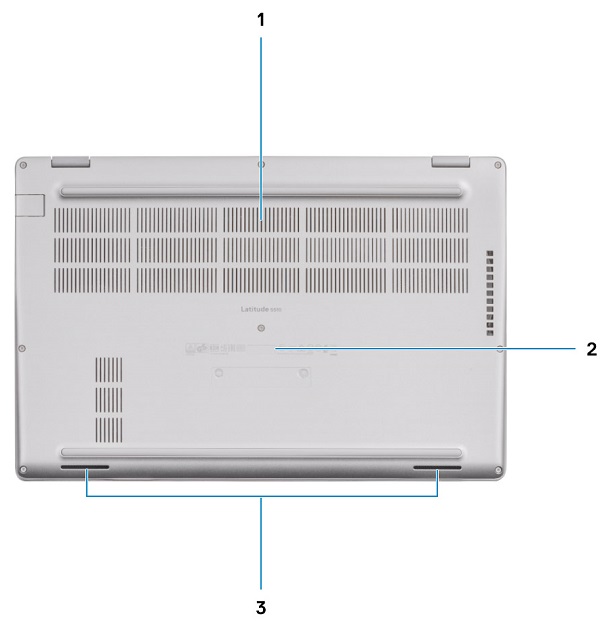

(Figure.3 Bottom View)
| 1 | Air Vent | 2 | Service Tag Location |
| 3 | Speakers |
Left-Hand Side View

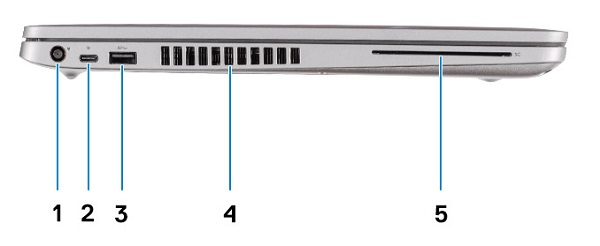

(Figure.4 Left-Hand Side View)
| 1 | DC-In Connector | 2 | USB 3.2 Gen2 (USB Type-C) Connector w/DisplayPort/PowerDelivery/Thunderbolt (Optional) |
| 3 | USB 3.2 Gen1 Type-A Connector | 4 | Air Vent |
| 5 | SmartCard Reader (Optional) |
Right-Hand Side View

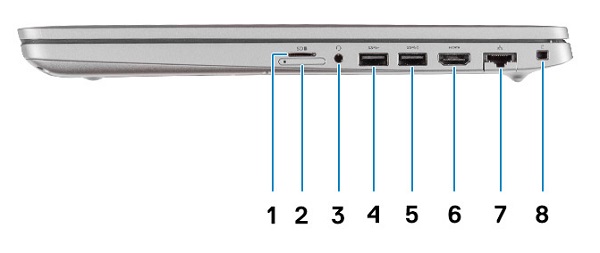

(Figure.5 Right-Hand Side View)
| 1 | microSD Card Slot | 2 | Micro SIM Card Slot |
| 3 | Universal Audio Jack Connector | 4 | USB 3.2 Gen1 Type-A Connector |
| 5 | USB 3.2 Type-A Connector w/PowerShare | 6 | HDMI 1.4b Connector |
| 7 | Network Connector | 8 | Wedge-Shaped Security Slot |
Resolution
AC Adapter View
(Figure.6 65W AC Adapter)
| Type 65 W | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
(Figure.7 90 W AC Adapter)
| Type 90 W | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 90 W |
| Output Voltage | 19.5 VDC |
(Figure.8 65/90 W Type-C AC Adapter)
| USB Type-C 65/90 W | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 65/90 W |
| Output Voltage | 19.5 VDC |
Additional Information
- Latitude 5510 Teardown/Removal guide for customer replaceable units (CRUs)
- Latitude 5510 online documents
