DSS7500: Dobbelt fejl og hvordan man tvinger online disk

• SI9361-8i RAID-kort
• Udskiftede disk28
• Disk40 aktiv redundant enhed genopbygges
• Disk22 er offline
• Disk40-genopbygning mislykkedes på grund af kildedriverfejl, der er to harddiske mislykkedes, og VD mislykkedes

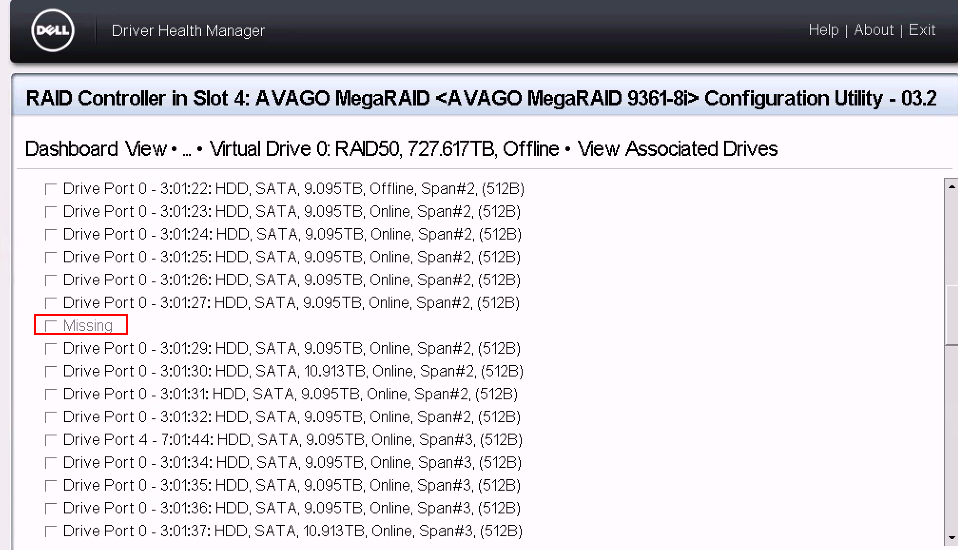

1. Fjerntjek disk22 HD offline, disk28 HD ikke-konfigureret god (mangler)
2. RAID-kortloggen kontrollerer, at VD0 er forringet, når disk22 er offline, og VD0 mislykkedes

Figur 1: Oplysninger om RAID-controller



1034450: 23-10-28,08:06:02 BG Work:CopyBack progress on PD b4(e0x64/s32) is 99.25%(116579s)
1034451: 23-10-28,08:53:56 Info:CopyBack complete on PD b4(e0x64/s32) from PD ba(e0x64/s40)
1034452: 23-10-28,08:53:57 Info:State change on PD b4(e0x64/s32) from COPYBACK(20) to ONLINE(18)
1034453: 23-10-28,08:53:57 Info:Global Hot Spare created on PD ba(e0x64/s40) (global,rev)
1034454: 23-10-28,08:53:57 Info:State change on PD ba(e0x64/s40) from ONLINE(18) to HOT SPARE(2)
1034459: 23-10-31,15:05:18 Info:State change on PD a0(e0x65/s28) from ONLINE(18) to OFFLINE(10)
1034460: 23-10-31,15:05:18 Info:State change on VD 00/0 from OPTIMAL(3) to DEGRADED(2)
1034461: 23-10-31,15:05:18 CRITICAL:VD 00/0 is now DEGRADED.
1034475: 23-10-31,15:15:02 Info:Inserted: PD a0(e0x65/s28)
1034476: 23-10-31,15:15:02 Info:Inserted: PD a0(e0x65/s28) Info: enclPd=65, scsiType=0, portMap=00, sasAddr=5f01faf0fd32821c,0000000000000000
1034477: 23-10-31,15:15:02 Info:PD a0(e0x65/s28) Inquiry info: Info- ATA  TOSHIBA MG07ACA1 T0A0CFF9SG 11 TB
1034478: 23-10-31,15:15:02 Info:State change on PD a0(e0x65/s28) from UNCONFIGURED_BAD(1) to UNCONFIGURED_GOOD(0)
1034481: 23-10-31,16:29:22 BG Work:Rebuild progress on PD ba(e0x64/s40) is 0.99%(5040s)
…
1034534: 23-11-01,21:31:58 Info:Unexpected sense: PD 98(e0x65/s22) Path 5f01faf0fd328216, CDB: 88 00 00 00 00 01 6e 67 88 98 00 00 00 08 00 00, Sense: 72 03 11 00 00 00 00 0C 00 0A 80 00 00 00 00 01 6E 67 88 98
1034585: 23-11-02,07:27:28 BG Work:Rebuild progress on PD ba(e0x64/s40) is 82.17%(145326s)
1034586: 23-11-02,07:48:59 Info:Unexpected sense: PD 98(e0x65/s22) Path 5f01faf0fd328216, CDB: 88 00 00 00 00 03 c6 b3 20 00 00 00 02 00 00 00, Sense: 72 03 11 00 00 00 00 0C 00 0A 80 00 00 00 00 03 C6 B3 22 60
1034587: 23-11-02,07:48:59 Info:Error on PD 98(e0x65/s22) (Error 02)
1034588: 23-11-02,07:48:59 Info:State change on PD 98(e0x65/s22) from ONLINE(18) to SHIELD(90)
1034589: 23-11-02,07:48:59 Info:State change on VD 00/0 from DEGRADED(2) to OFFLINE(0)
1034590: 23-11-02,07:48:59 FATAL:Controller cache pinned for missing or offline VD 00/0
1034591: 23-11-02,07:48:59 FATAL:VD 00/0 is now OFFLINE
1034592: 23-11-02,07:48:59 Info:Error on PD 98(e0x65/s22) (Error 02)
1034593: 23-11-02,07:48:59 CRITICAL:Rebuild failed on PD by(e0x64/s40) due to source drive error
1034594: 23-11-02,07:48:59 Info:State change on PD ba(e0x64/s40) from REBUILD(14) to HOT SPARE(2)
1034597: 23-11-02,07:49:02 WARNING:PD 98(e0x65/s22) Path 5f01faf0fd328216  reset (Type 03)
1034598: 23-11-02,07:49:04 Info:Unexpected sense: PD 98(e0x65/s22) Path 5f01faf0fd328216, CDB: 28 00 00 00 00 00 00 00 04 00, Sense: 70 00 06 00 00 00 00 0A 00 00 00 00 29 00 00 00 00 00
1034599: 23-11-02,07:49:04 Info:Unexpected sense: PD 98(e0x65/s22) Path 5f01faf0fd328216, CDB: 00 00 00 00 00 00, Sense: 70 00 02 00 00 00 00 0A 00 00 00 00 04 02 00 00 00 00
1034601: 23-11-02,07:55:14 Info:Diagnostics passed for PD 98(e0x65/s22)
1034602: 23-11-02,07:55:14 Info:State change on PD 98(e0x65/s22) from SHIELD(90) to OFFLINE(10)

1. Prøv at tvinge den sidste offlinedisk online. Hvis disken går online, kan VD en gendanne til forringet status.
2. I dette tilfælde online disk22 i RAID-controller AVAGO MegaRAID 9361-8i HII-konfigurationsværktøjet (Human Interface Infrastructure) Nedenfor vises trinene:
   1. Genstart serveren. Mens systemet er under opstart, skal du trykke på<F2>for at åbne Systemopsætning.
   2. Klik på Enhedsindstillinger for at få adgang til administrationsmenuen for controlleren AVAGO MegaRAID 9361-8i. Brug piletasterne eller musen til at bevæge dig.

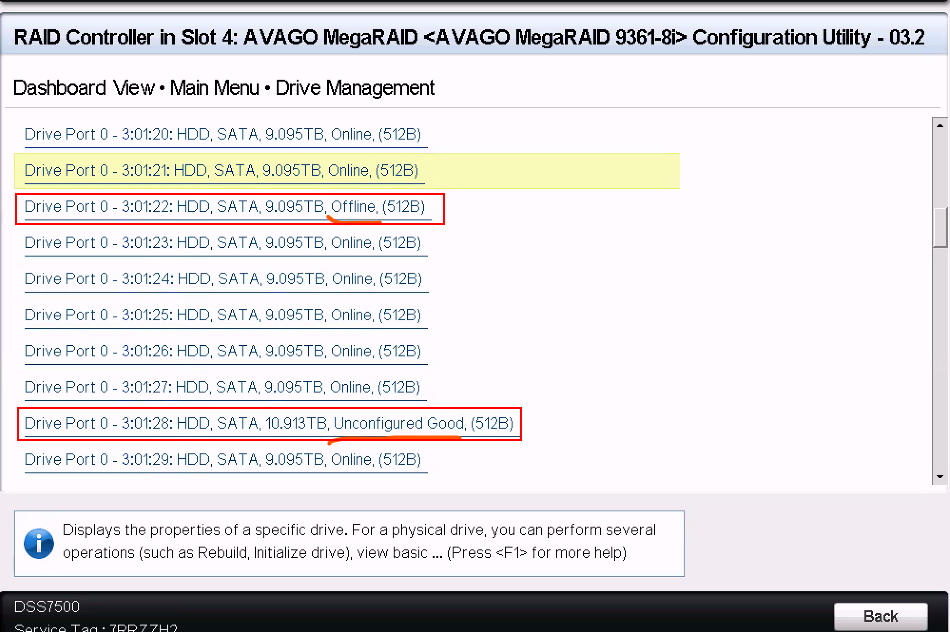

Figur 5: Drevport 0 - 3:01:22 offline

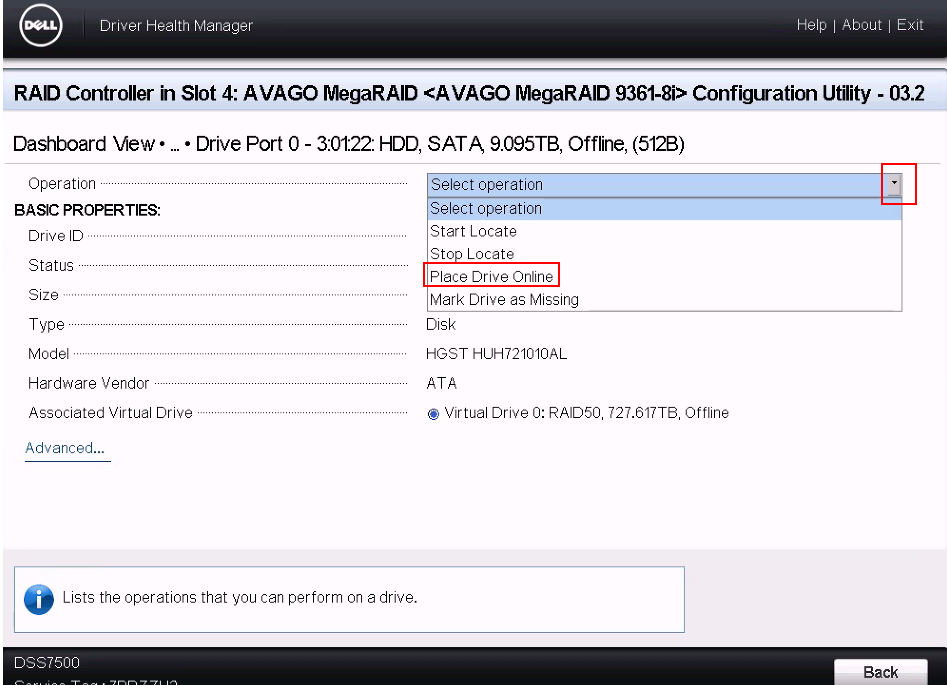

3. Vælg handlingen "Drevport 0 - 3:01:22" > Placering af drev online > Bekræft, at handlingen > er OK.

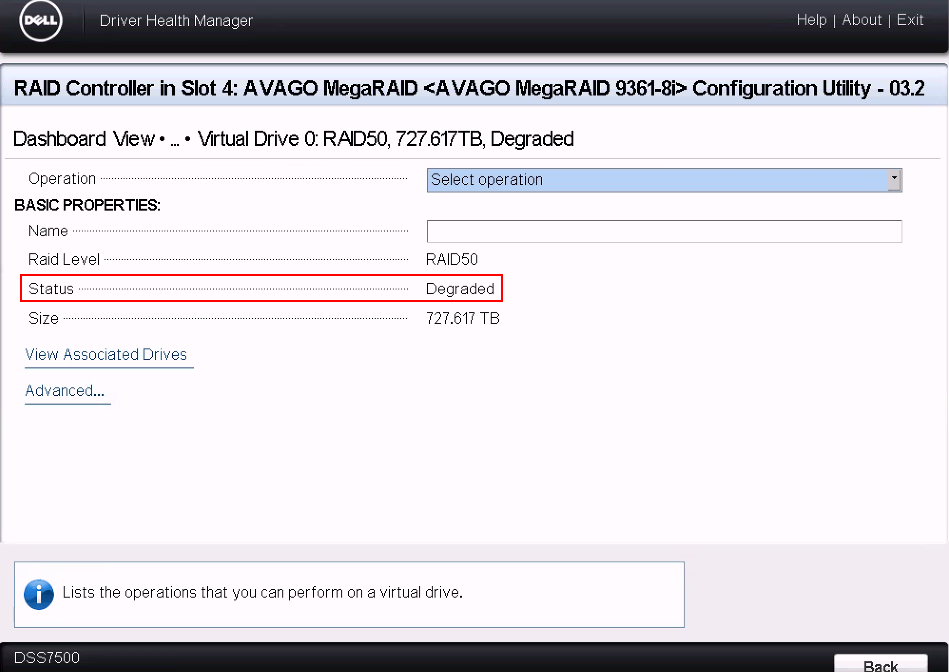

4. Kontrollér, at RAID 50-status gendannes til Degraderet.

5. Fra RAID-controlleren AVAGO MegaRAID 9361-8i-administrationssoftwaren skal du kontrollere, at disk22 er online, og at disk40 genopbygges.

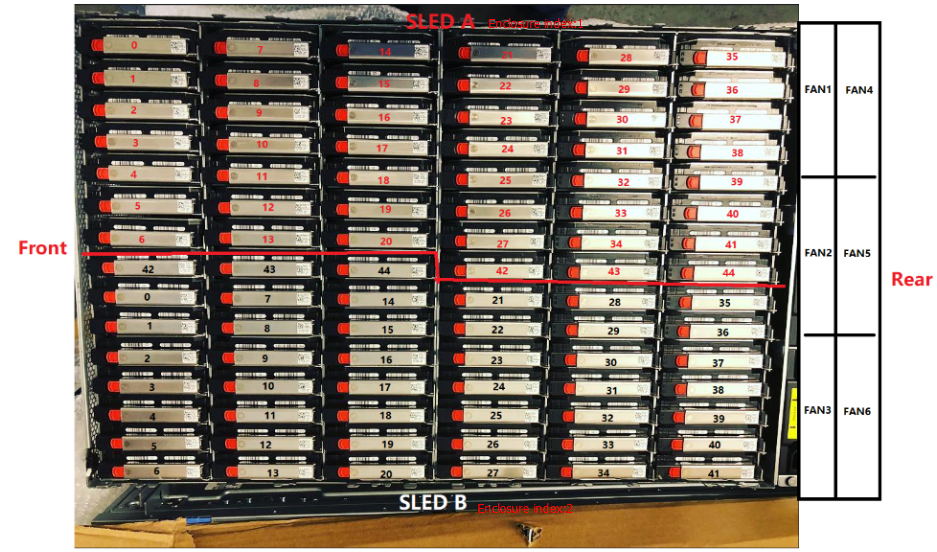

3. Kontroller oplysningerne om diskpladsen, hvis du skal udskifte en disk.
