VxRail: Node Expansion Failed with Error "Expansion ESXI hosts pnic teaming policy initialize"

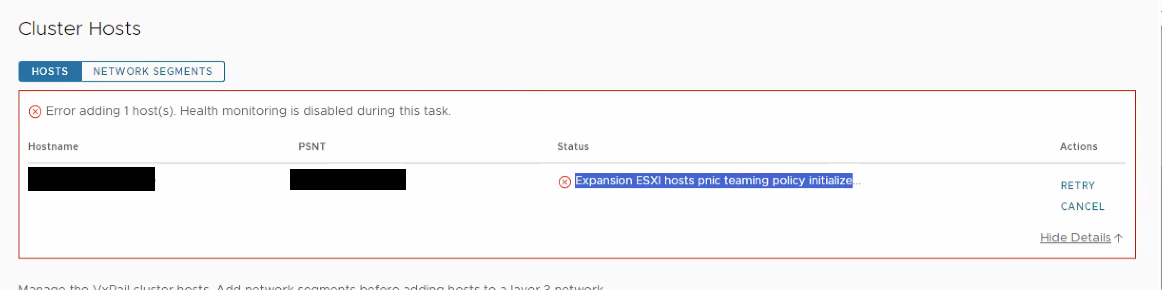

Error message:


Failure in mapping the Team due to missing Private Management Network, Private VM Network, or a vlan not configured

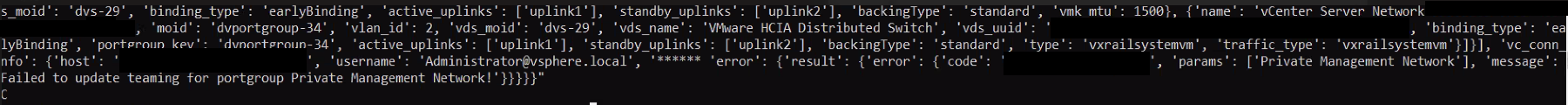

Dayone.log:


On the new node, ensure that the Management Network is assigned to vmk2.

If the Private Management Network and Private VM Network are missing, create them with the commands below:


1. Add portgroups (Private Management Network) & (Private VM Network) first to the standard switch:
   esxcli network vswitch standard portgroup add --portgroup-name=portgroup --vswitch-name=vSwitch
2. Then attach the vlan which is configured from the customer side through the below commands:
   esxcli network vswitch standard portgroup set -p "Private Management Network" -v [vlan]
esxcli network vswitch standard portgroup set -p "Private VM Network" -v [vlan]
3. Add the Private Management Network port group to vmk0:
   esxcli network ip interface add --interface-name=vmk0 --portgroup-name="Private Management Network"
4. Then restart the management services:
   /etc/init.d/hostd restart
/etc/init.d/vpxa restart
