February 13th, 2026 11:44
PCIe slots in 5860
We are considering getting a new 5860 workstation. We need to install two PCI cards (PCI x4 and x8). The x8 card is a bit larger in overall size, so I am concerned whether some slots may not fit in. The 5860 has five PCI slots with 2 x16 and 3 x8. Based on the image of the motherboard, I am sure that this is how slots look like:
slot 1: x16
slot 2: x8
slot 3: x8
slot 4: x16
slot 5: x8
One of the x8 is described as x4 electrical. Does anybody share information on which slot is x4 electrical?
0 events found
No Events found!
Chino de Oro
11 Legend
•
8.3K Posts
•
46K Points
0
February 14th, 2026 05:26

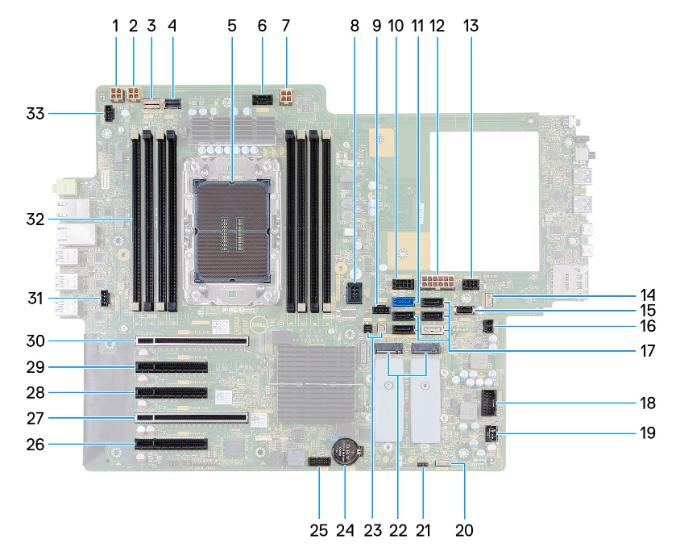

It's SLOT 3, PCIe x8 slot wired as x4 electrically. See description for #28 of system board callouts.
