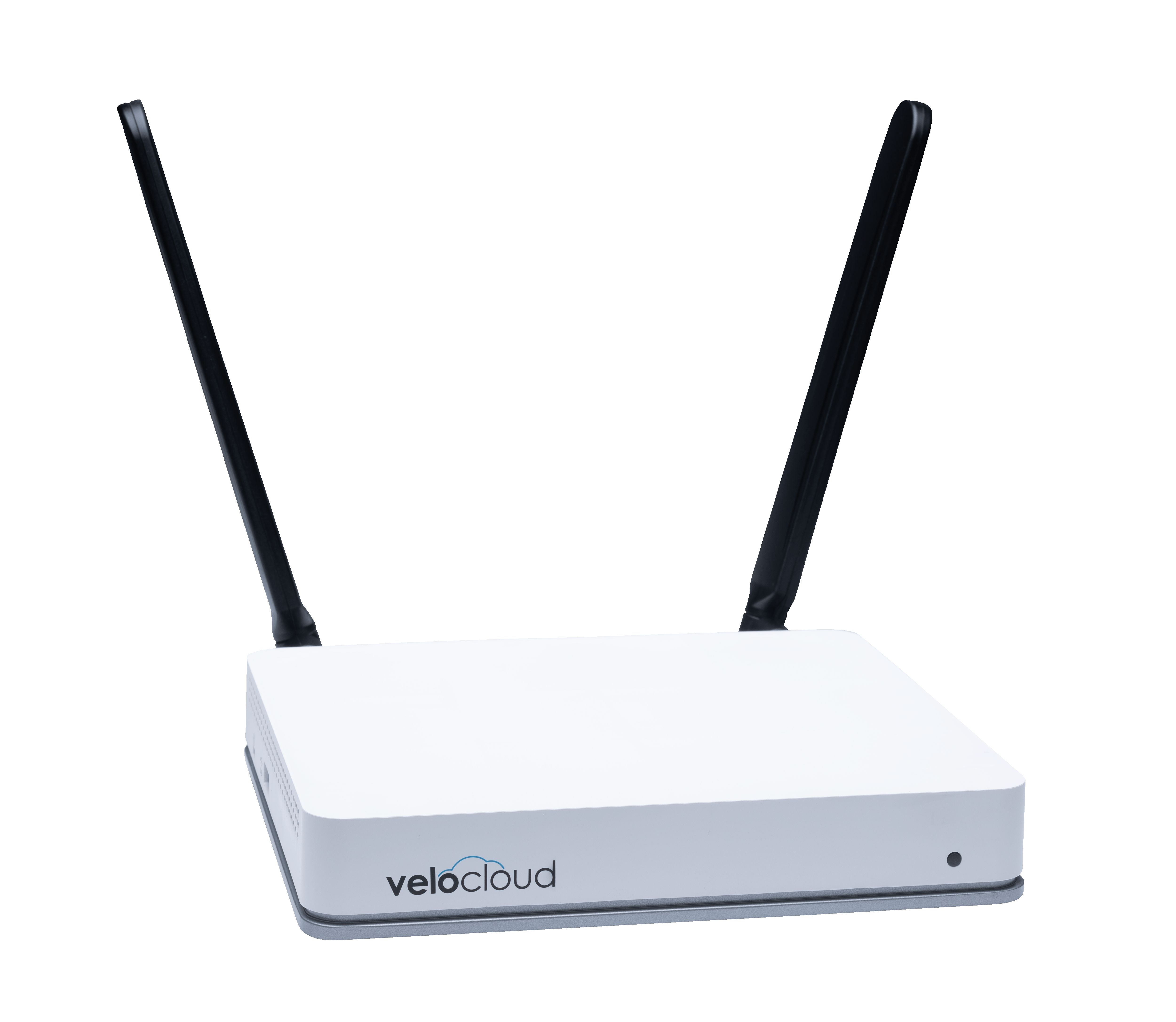

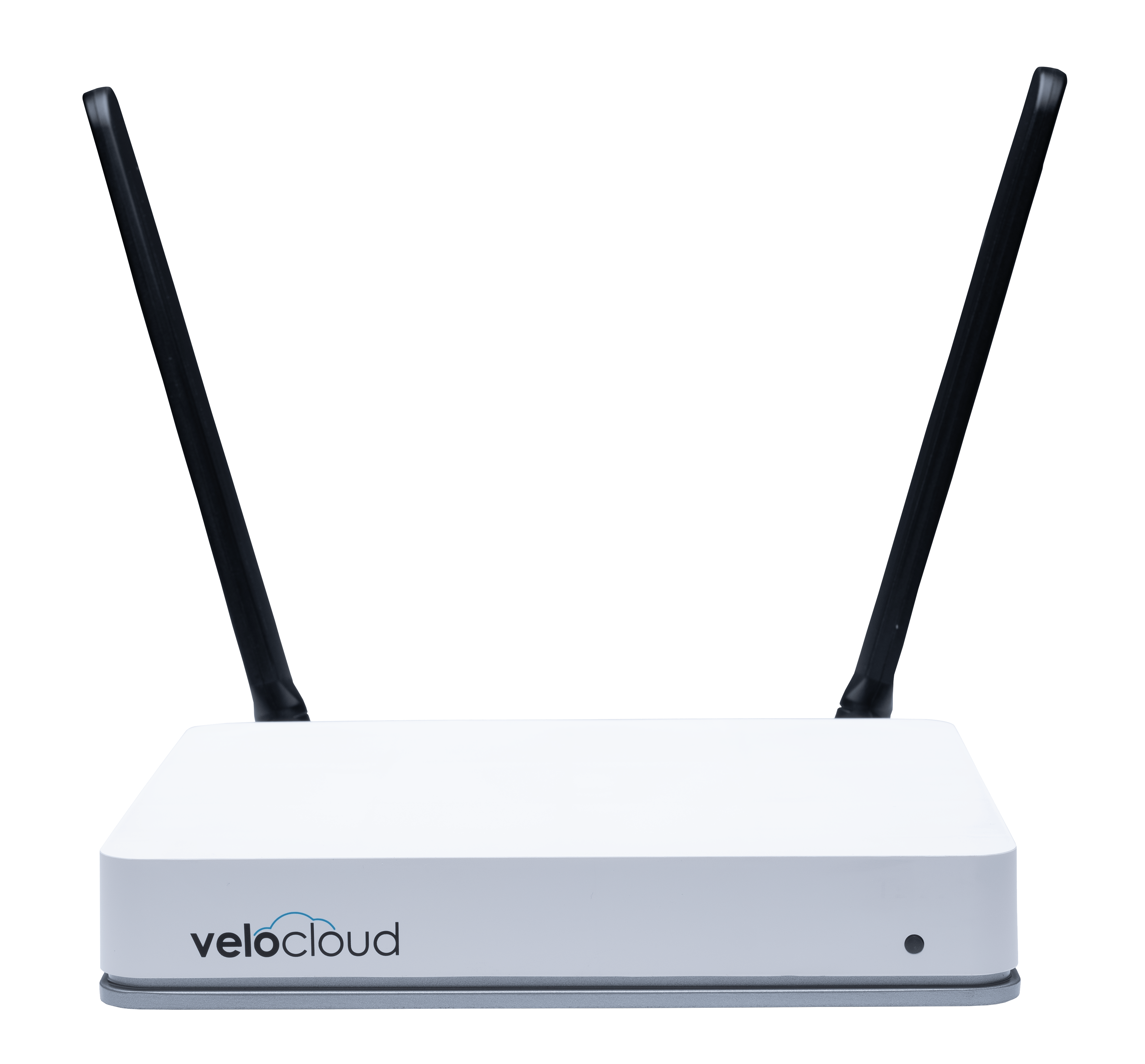

Dell SD-WAN Edge 500 Series
All-in-One Solution for SD-WAN, now with built-in LTE
An all-in-one solution for SD-WAN featuring VMware software and built-in LTE for increased choice in edge connectivity.
All-in-One Solution for SD-WAN, now with built-in LTE
An all-in-one solution for SD-WAN featuring VMware software and built-in LTE for increased choice in edge connectivity.
Tech Specs & Customization
Still have Questions? Call 1-866-640-3355 or Click to chat
Performance
200 Mbps
Power
100 VAC–240 VAC, 50/60 Hz, Typical consumption 15W, Max 40W
Ports
4 1G RJ-45 ports
2 USB 2.0 ports
Power and Cooling Hardware
Fanless
Dimensions & Weight
Width: 8.1” (20.8cm), Depth: 7.1” (1.8cm), Height: 1.57” (4cm)
Security
RADIUS, local authentication and authorization, multitenant 3 Tier role-based access control (RBAC) architecture, auditing, roles and privileges
Routing
OSPF, BGP, static, connected
Regulatory
[FCC (US)
CE (Europe)
R-Mark (Japan)
SRRC (China)13
EN32032 (HK)
KCC (Korea)
NCC (Taiwan)
47 CFR, Part 15
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
AS/NZS 3548 Class A
VCCI
CNS 13438
EN 300-386
EN 61000 (Immunity)
EN 55024
CISPR 24
EN 50082-1]
Product Safety, and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Management
Remote management using a cloud based orchestrator
Ethernet Support
4 1G RJ-45 ports
VLAN
802.1Q, 802.1ad, QinQ (0x8100), QinQ (0x9100), native
Quality of Service
Shaping, policing, per-flow queueing, tunnel shaper, multi-source inbound QoS, rate-limiter, COS aware, outer/inner DSCP tagging, smart defaults, MPLS COS
Other Switching
SD-WAN Edge
Environmental
Operating relative humidity 5% to 85% (RH), non-condensing continuously
Environmental Operating Conditions
Operating Temperature 0°C to 40°C (32°F to 104°F)
