Latitude 5490: Visual guide to your Computer
Zusammenfassung: This article is a visual guide to the external ports and features of the Dell Latitude 5490 Notebook.
Dieser Artikel gilt für
Dieser Artikel gilt nicht für
Dieser Artikel ist nicht an ein bestimmtes Produkt gebunden.
In diesem Artikel werden nicht alle Produktversionen aufgeführt.
Symptome
The following article provides a visual guide to your Latitude 5490 Computer and lists the external ports and features of your PC.
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Rear View
- Bottom View
- Left Hand Side View
- Right Hand Side View
- AC Adapter View
- Additional Info:
Front View

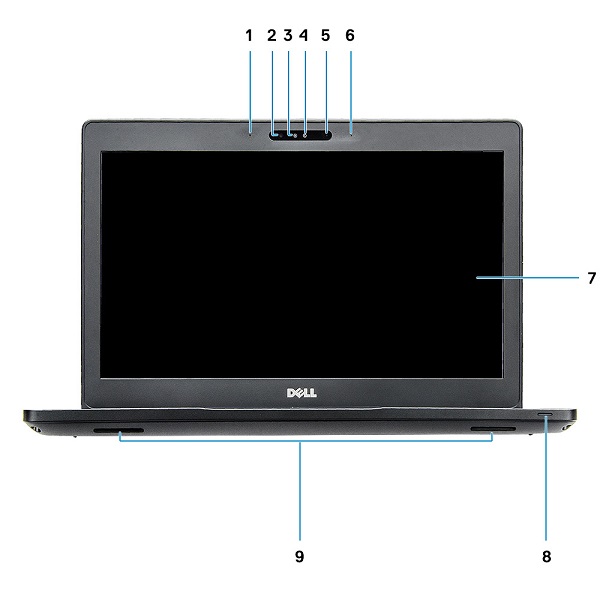

(Fig.1 Front View)
| 1 | Dual Array Microphone | 2 | Infrared Emitter |
| 3 | IR Camera (Optional) | 4 | HD Camera |
| 5 | Camera Status LED | 6 | Dual Array Microphone |
| 7 | Display | 8 | Battery Charge LED, Diagnostic LED |
| 9 | Speakers |
Top View

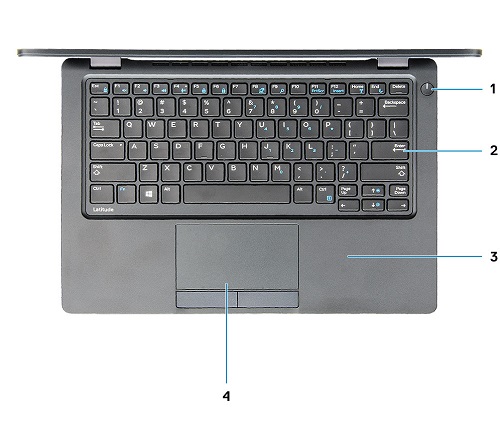

(Fig.2 Top View)
| 1 | Power Button / Power Status LED | 2 | Keyboard |
| 3 | Palm Rest | 4 | Touchpad |
Rear View

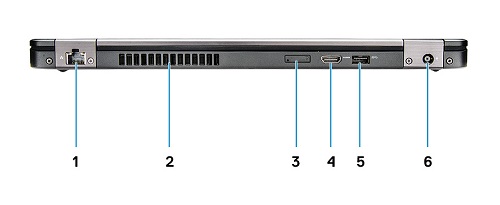

(Fig.3 Rear View)
| 1 | Network Connector (NIC) | 2 | Air Vent |
| 3 | Micro SIM Card Slot (Optional) | 4 | HDMI Connector |
| 5 | USB 3.1 Gen1 Connector | 6 | Power Connector |
Bottom View

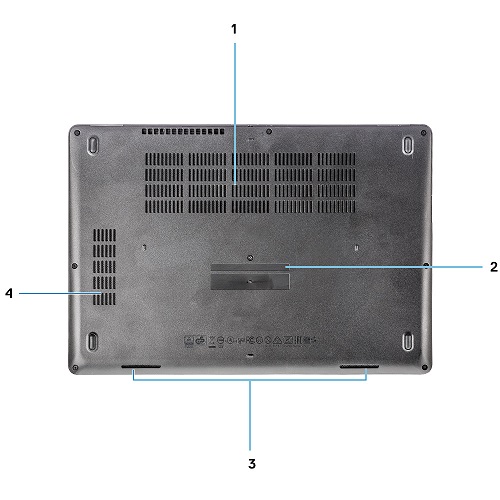

(Fig.4 Bottom View)
| 1 | Fan Vents | 2 | Service Tag |
| 3 | Speaker | 4 | Fan Vent |
Left Hand Side View

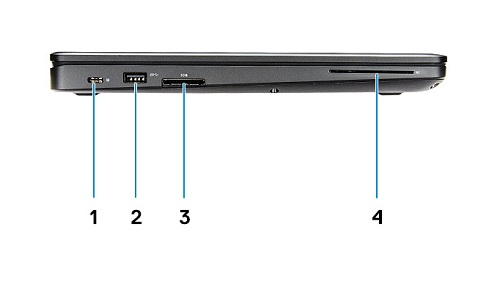

(Fig.5 Left Hand Side View)
| 1 | DisplayPort over USB Type-C | 2 | USB 3.1 Gen1 Connector |
| 3 | SD Card Reader | 4 | SmartCard Reader (Optional) |
Right Hand Side View

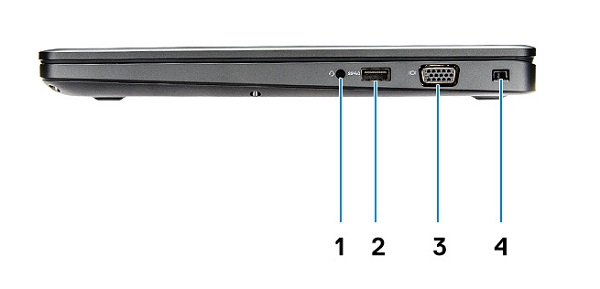

(Fig.6 Right Hand Side View)
| 1 | Headset / Microphone Connector | 2 | USB 3.1 Gen1 Connector with PowerShare |
| 3 | VGA Connector | 4 | Noble Wedge Lock Slot |
AC Adapter View
(Fig.7 65W Adapter)
| Type 65W Series | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 V DC |
(Fig.8 90W Adapter)
| Type 90W E4 Series Optional | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 90 W |
| Output Voltage | 19.5 V DC |
Additional Info:
- Latitude 5490 Teardown removal guide for customer replaceable units (CRUs)
- Latitude 5490 Owner's Manual
