PowerStore: How to enable SFTP passwordless login on SMB only NAS server

Summary: This article guides you to enable SFTP passwordless login for the SMB account on SMB only NAS server for PowerStore.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

  1. Generate an SSH key pair on any Linux server

    [administrator@my-linux-server ~]$ ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/administrator/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/administrator/.ssh/id_rsa.
Your public key has been saved in /home/administrator/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:FGwVwmaboco...GC86v+4pc administrator@my-linux-server
The key's randomart image is:
+---[RSA 3072]----+
|     . =+o+o     |
|    . + @o.      |
| o + . O.*       |
|* . = +.B        |
|.= + o =So       |
|o . . o . .      |
|o. o ..          |
|+ +..E           |
|   :)            |
+----[SHA256]-----+

    This is what you should see in the .ssh folder:

    [administrator@my-linux-server .ssh]# ls /home/administrator/.ssh/
id_rsa
id_rsa.pub
known_hosts

  2. Create an SMB NAS server, Windows AD Joined

    For example, NAS server nas-sftp01:
    SMB server tab

    NFS is not required

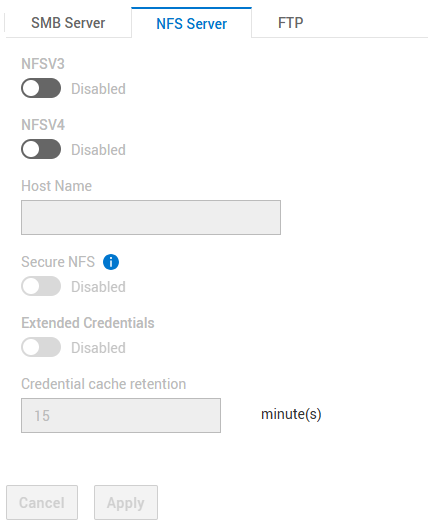

    NFS Server tab

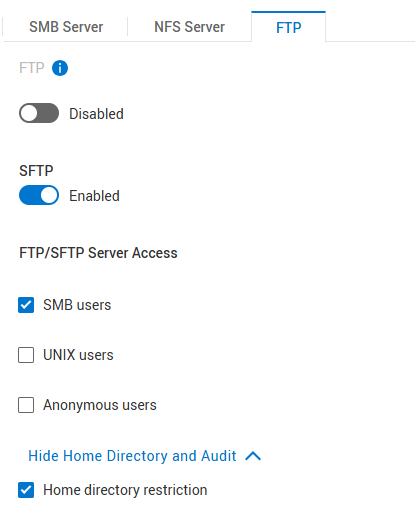

    Settings for SFTP:

    • SFTP enabled
    • FTP/SFTP Server Access: SMB users
    • Home directory restriction: Enabled
    A screenshot of a computerDescription automatically generated

    "Home Directory Restriction" allows the user to only open the /Home/ folder but not see anything above this. Untick this if the user should have access to the root of the NAS server and File Systems.

  3. Create a file system

    Create a file system under the NAS server created above, and create an SMB share.
    Example file system name: nas-sftp-fs01.

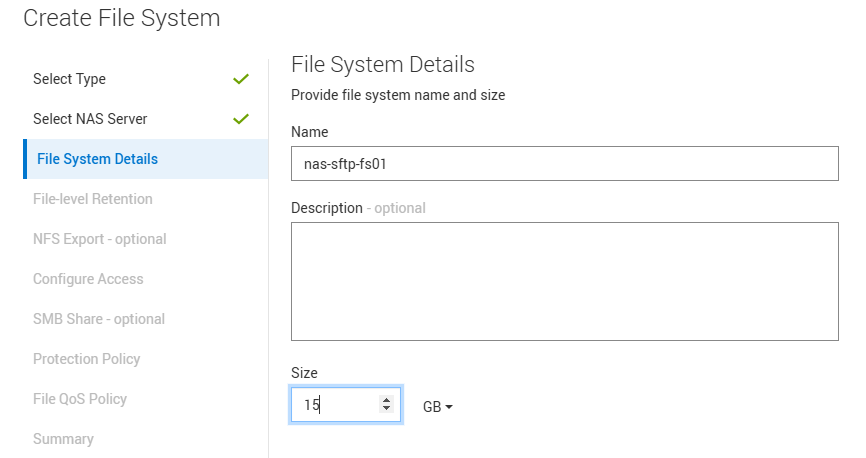

    File System Details

  4. Enable HomeDir for NAS server nas-sftp01

    Upload the homedir configuration file to NAS server > Naming Services > Local files.

    Note that you are putting only the file system name here nas-sftp-fs01. Use this template for some guidance:



    Examples:
mydomain:*:/fs2/<d>/<u>:regex:create
mydomain:usr1:/fs1/usr1
!:tom:/fs1/tom
test:*:/nas-sftp-fs01/<d>/<u>:regex:create

  5. Create a user on Windows AD

    Demonstrating with user tester as an example.
    Login from any windows client (Windows AD Joined) with user tester and access the Home directory \\nas-sftp01\HOME to create the Home directory of the user tester.

  6. Go to the Linux Server that you created the SSH key pair on, and go to the location where the key is stored.

    You must rename the file id_rsa.pub to autorized_keys

    [administrator@my-linux-server]$ cd /home/administrator/.ssh/
[administrator@my-linux-server .ssh]$ pwd
/home/administrator/.ssh

[administrator@my-linux-server .ssh]$ ls -la
total 16
drwx------.  2 administrator administrator   57 Mar  4 09:58 .
drwx------. 20 administrator administrator 4096 Jan 23 08:21 ..
-rw-------.  1 administrator administrator 2622 Mar  3 08:19 id_rsa
-rw-r--r--.  1 administrator administrator  582 Mar  3 08:19 id_rsa.pub
-rw-r--r--.  1 administrator administrator  909 Mar  4 08:34 known_hosts

[administrator@my-linux-server .ssh]$ mv id_rsa.pub authorized_keys

  7. Open a sftp connection to the NAS server with the newly created user

    Create an .ssh folder and move the new file authorized_keys into the .ssh/ folder from the location above (in this example is its /home/administrator/.ssh/).

    Replace xx.xx.xx.xx with the NAS server's IP or name.



    [administrator@my-linux-server .ssh]$ sftp test\\tester@xx.xx.xx.xx
test\tester@xx.xx.xx.xx's password:
Connected to xx.xx.xx.xx.
sftp>

sftp> mkdir .ssh

sftp> cd .ssh/

sftp> put /home/administrator/.ssh/authorized_keys
Uploading /home/administrator/.ssh/authorized_keys to /.ssh/authorized_keys
/home/administrator/.ssh/authorized_keys                  100%  582   863.0KB/s   00:00
sftp> ls -la
drwxrwxrwx   2 2147483653 2147483653 2147483653            152 Mar  4 10:19 .
drwxr-xr-x   3 2147483653 2147483653 2147483653            152 Mar  4 10:19 ..
-rw-r--r--   1 2147483653 2147483653 2147483653            582 Mar  4 10:19 authorized_keys

  8. Set permission 700 to folder .ssh and 600 to file .ssh/authorized_keys using chmod within the SFTP

    sftp> ls -la
drwxr-xr-x   3 2147483650 2147483650 2147483650           8192 Mar  4 12:30 .
drwxr-xr-x   3 2147483650 2147483650 2147483650           8192 Mar  4 12:30 ..
drwxrwxrwx   2 2147483650 2147483650 2147483650            152 Mar  4 12:30 .ssh
-rw-r--r--   1 2147483650 2147483650 2147483650              9 Mar  4 12:22 TESTER_HOME_dir.txt

sftp> chmod 700 .ssh/
Changing mode on /.ssh/
sftp> chmod 600 .ssh/authorized_keys
Changing mode on /.ssh/authorized_keys
sftp> ls -la
drwxr-xr-x   3 2147483650 2147483650 2147483650           8192 Mar  4 12:30 .
drwxr-xr-x   3 2147483650 2147483650 2147483650           8192 Mar  4 12:30 ..
drwx------   2 2147483650 2147483650 2147483650            152 Mar  4 12:30 .ssh
-rw-r--r--   1 2147483650 2147483650 2147483650              9 Mar  4 12:22 TESTER_HOME_dir.txt

sftp> cd .ssh/
sftp> ls -la
drwx------   2 2147483650 2147483650 2147483650            152 Mar  4 12:30 .
drwxr-xr-x   3 2147483650 2147483650 2147483650           8192 Mar  4 12:30 ..
-rw-------   1 2147483650 2147483650 2147483650            582 Mar  4 12:30 authorized_keys

  9. Testing access

    You should now be able to open the sftp without providing any password.
    You can use sftp -v option to show the log-in details.

    [administrator@my-linux-server .ssh]$ sftp -v test\\tester@xx.xx.xx.xx
OpenSSH_8.0p1, OpenSSL 1.1.1k  FIPS 25 Mar 2021
debug1: Reading configuration data /etc/ssh/ssh_config
debug1: Reading configuration data /etc/ssh/ssh_config.d/05-....conf
debug1: Reading configuration data /etc/crypto-policies/back-ends/openssh.config
debug1: configuration requests final Match pass
debug1: re-parsing configuration
debug1: Reading configuration data /etc/ssh/ssh_config
debug1: Reading configuration data /etc/ssh/ssh_config.d/05-....conf
debug1: Reading configuration data /etc/crypto-policies/back-ends/openssh.config
debug1: Connecting to xx.xx.xx.xx [xx.xx.xx.xx] port 22.
debug1: Connection established.
debug1: identity file /home/administrator/.ssh/id_rsa type -1
debug1: identity file /home/administrator/.ssh/id_rsa-cert type -1
debug1: identity file /home/administrator/.ssh/id_dsa type -1
debug1: identity file /home/administrator/.ssh/id_dsa-cert type -1
debug1: identity file /home/administrator/.ssh/id_ecdsa type -1
debug1: identity file /home/administrator/.ssh/id_ecdsa-cert type -1
debug1: identity file /home/administrator/.ssh/id_ed25519 type -1
debug1: identity file /home/administrator/.ssh/id_ed25519-cert type -1
debug1: identity file /home/administrator/.ssh/id_xmss type -1
debug1: identity file /home/administrator/.ssh/id_xmss-cert type -1
debug1: Local version string SSH-2.0-OpenSSH_8.0
debug1: Remote protocol version 2.0, remote software version OpenSSH_8.4
debug1: match: OpenSSH_8.4 pat OpenSSH* compat 0x04000000
debug1: Authenticating to xx.xx.xx.xx:22 as 'test\\tester'
debug1: SSH2_MSG_KEXINIT sent
debug1: SSH2_MSG_KEXINIT received
debug1: kex: algorithm: curve25519-sha256
debug1: kex: host key algorithm: ecdsa-sha2-nistp256
debug1: kex: server->client cipher: aes256-gcm@openssh.com MAC: <implicit> compression: none
debug1: kex: client->server cipher: aes256-gcm@openssh.com MAC: <implicit> compression: none
debug1: kex: curve25519-sha256 need=32 dh_need=32
debug1: kex: curve25519-sha256 need=32 dh_need=32
debug1: expecting SSH2_MSG_KEX_ECDH_REPLY
debug1: Server host key: ecdsa-sha2-nistp256 SHA256:xyc9xUOiKbYg4TEvY8wahgq9ous3ocRTbTWBEmK5wgk
debug1: Host 'xx.xx.xx.xx' is known and matches the ECDSA host key.
debug1: Found key in /home/administrator/.ssh/known_hosts:6
debug1: rekey out after 4294967296 blocks
debug1: SSH2_MSG_NEWKEYS sent
debug1: expecting SSH2_MSG_NEWKEYS
debug1: SSH2_MSG_NEWKEYS received
debug1: rekey in after 4294967296 blocks
debug1: Will attempt key: /home/administrator/.ssh/id_rsa
debug1: Will attempt key: /home/administrator/.ssh/id_dsa
debug1: Will attempt key: /home/administrator/.ssh/id_ecdsa
debug1: Will attempt key: /home/administrator/.ssh/id_ed25519
debug1: Will attempt key: /home/administrator/.ssh/id_xmss
debug1: SSH2_MSG_EXT_INFO received
debug1: kex_input_ext_info: server-sig-algs=<ssh-ed25519,sk-ssh-ed25519@openssh.com,ssh-rsa,rsa-sha2-256,rsa-sha2-512,ssh-dss,ecdsa-sha2-nistp256
,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521,sk-ecdsa-sha2-nistp256@openssh.com,webauthn-sk-ecdsa-sha2-nistp256@openssh.com>
debug1: SSH2_MSG_SERVICE_ACCEPT received
debug1: Authentications that can continue: publickey,password
debug1: Next authentication method: publickey
debug1: Trying private key: /home/administrator/.ssh/id_rsa
debug1: Authentication succeeded (publickey).
Authenticated to xx.xx.xx.xx ([xx.xx.xx.xx]:22).
debug1: channel 0: new [client-session]
debug1: Requesting no-more-sessions@openssh.com
debug1: Entering interactive session.
debug1: pledge: network
debug1: Sending environment.
debug1: Sending env LANG = en_IE.UTF-8
debug1: Sending subsystem: sftp
Connected to xx.xx.xx.xx.
sftp> ls
TESTER_HOME_dir.txt
