How Reconfigure a Virtual disk or add additional hard drives.

Summary: How to add additional disks to a Virtual disk or reconfigure a virtual disk

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content

Instructions

The following article provides information about how to expand and how to Reconfigure a virtual disk.



If you have a Virtual Disk (VD) already set-up, you must add additional disks to the disk group to increase the capacity that this guide provides the steps on how to add or Reconfigure the virtual disk group using the RAID BIOS.



NOTE: This article is part of the Server Tutorials: "RAID and Disks," see Dell Knowledge Base article PowerEdge Tutorials: Physical Disks and RAID Controller (PERC) on Servers, for more information.



WARNING: Always create a validated backup of your data before starting any action.



NOTE: Reconfiguring Virtual Disks typically impacts disk performance until the reconfiguration operation is complete. It is highly recommended that the procedure to do during a maintenance window.



Steps:

  1. Access the BIOS by F2 > Device Settings

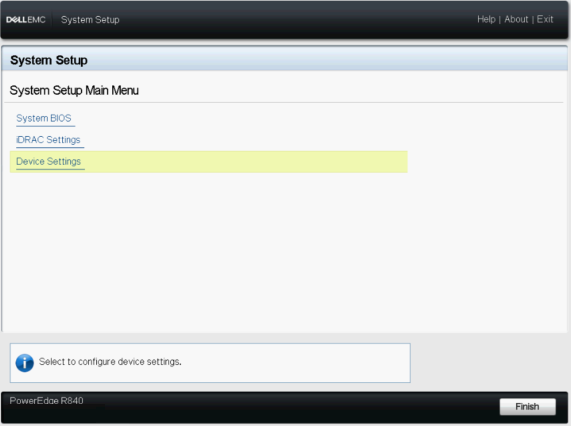

    expand virtual disk1
    Figure 1: Expand Virtual Disk 1

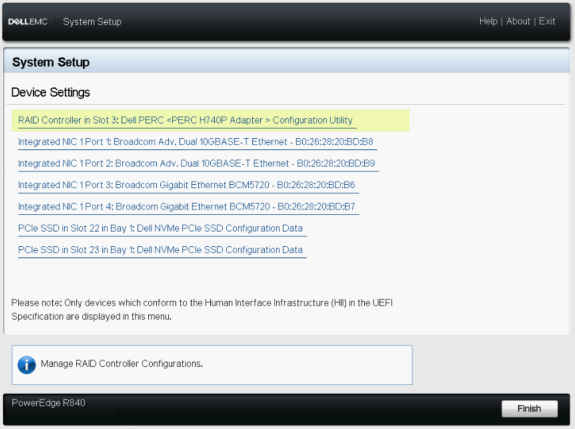

  2. Select RAID Controller

    Expand Virtual Disk2
    Figure 2: Expand Virtual Disk 2

  3. In the Dashboard view, select Main Menu

    Expand Virtual Disk 3
    Figure 3: Expand Virtual Disk 3


  4. Select Virtual Disk Management
    Expand Virtual Disk 4
    Figure 4: Expand Virtual Disk 4


  5. Select the virtual disk that is changed

    Expand Virtual Disk 5
    Figure 5: Expand Virtual Disk 5


  6. In the drop-down, select Reconfigure Virtual Disks and press GO button

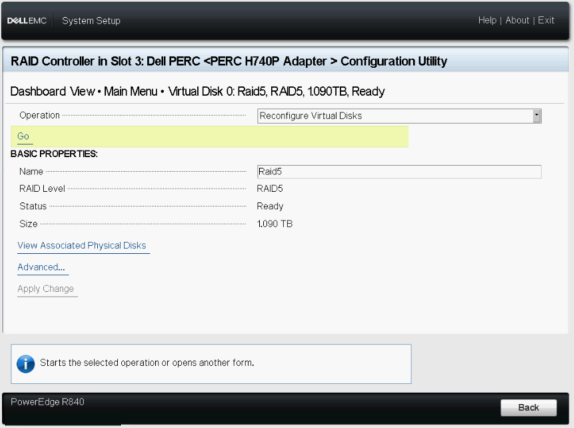

    Expand Virtual Disk 6
    Figure 6: Expand Virtual Disk 6


  7. Select the RAID Level and level and press button Choose the Operation

    Expand Virtual Disk 7
    Figure 7: Expand Virtual Disk 7


  8. Select the disks to be added at VD and press button Apply Changes.

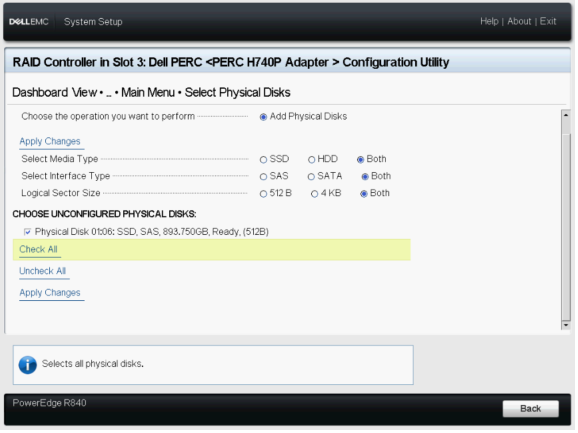

    Expand Virtual Disk 8
    Figure 8: Expand Virtual Disk 8


  9. Confirm the operation and click in YES.

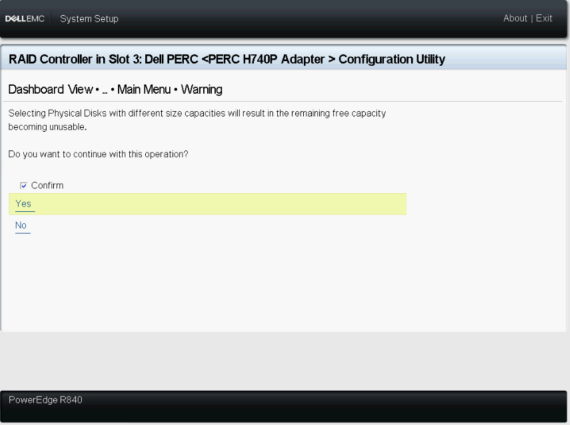

    Expand Virtual Disk 9
    Figure 9: Expand Virtual Disk 9


  10. Press the button Start Operation

    Expand Virtual Disk 10
    Figure 10: Expand Virtual Disk 10


  11. Press button OK to complete the operation.

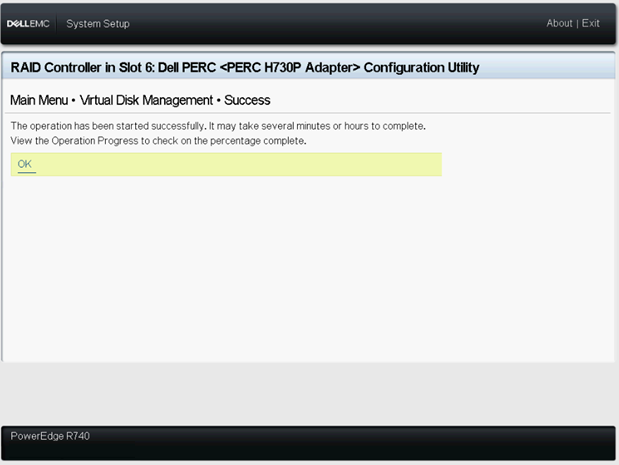

    Expand Virtual Disk 11
    Figure 11: Expand Virtual Disk 11


  12. To view, see the status of the virtual disk

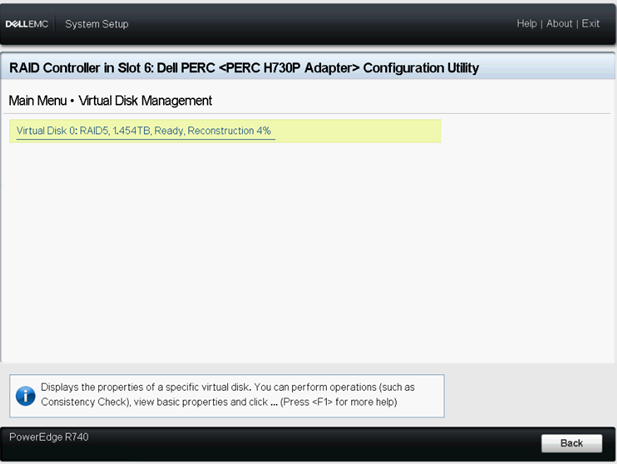

    Expand Virtual Disk 12
    Figure 12: Expand Virtual Disk 12


After the reconstruction starts, the system can be left in the raid BIOS until complete, or the system can be rebooted into the operating system.
Note if the system is rebooted into the operating system, the system performance is impacted until the rebuild has been completed.
