Latitude 5500: Visual Guide to your Computer
Summary: This article is a visual guide to the external ports and features of the Latitude 5500 notebook.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The following article provides a visual guide to your Latitude 5500 Notebook and lists the external ports and features of your PC.
Note: For a more detailed description of each location, please go to the system manuals at Dell Latitude 5500 Service Manual
Table of Contents:
- Front View
- Top View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Front View
(Figure.1 Front View)
| 1 | Array Microphone | 2 | SafeView Shutter |
| 3 | Camera | 4 | Camera Status LED |
| 5 | Array Microphone | 6 | LCD Panel |
| 7 | LED Activity Light |
Top View
(Figure.2 Top View)
| 1 | Power Button w/Fingerprint Reader (Optional) | 2 | Keyboard |
| 3 | Fingerprint Reader (Optional) | 4 | Touchpad |
| 5 | Trackstick (Optional) |
Bottom View
(Figure.3 Bottom View)
| 1 | Thermal Vent | 2 | Service Tag Label |
| 3 | Speakers |
Left-Hand Side View
(Figure.4 Left-Hand Side View)
| 1 | Power Connector | 2 | USB 3.1 Gen2 (USB Type-C) connector w/DisplayPort/Thunderbolt (Optional) |
| 3 | USB 3.1 Gen 1 | 4 | Smart Card Reader (Optional) |
Right-Hand Side View
(Figure.5 Right-Hand Side View)
| 1 | MicroSD Card Reader | 2 | Headset/Microphone Connector |
| 3 | USB 3.1 Gen1 Connector | 4 | USB 3.1 Gen1 Connector w/PowerShare |
| 5 | HDMI Connector | 6 | Ethernet (NIC) Connector |
| 7 | Wedge-Shaped Lock Slot |
AC Adapter View

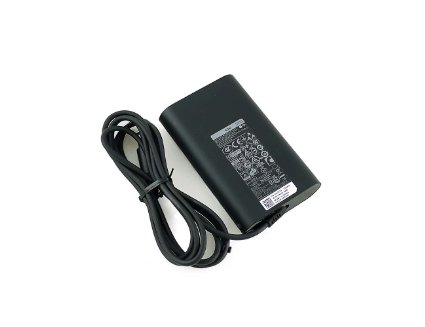

(Figure.6 65W Adapter)
| Type 65W E4 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
(Figure.7 90W Adapter)
| Type E5 90W Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 90 W |
| Output Voltage | 19.5 VDC |
Additional Info:
- Latitude 5500 Teardown removal guide for customer replaceable units (CRUs)
- Dell Latitude 5500 Service Manual
