Dell Unity：如何创建包含两个以上规则的快照计划

Summary: 本文介绍如何使用 CLI 创建包含两个以上规则的快照计划，而这无法使用 UI 完成（用户可更正）

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

您可能需要创建包含多个规则的快照计划，例如：

  1. 我们保留 24 小时的每小时检查点
  2. 我们保留 7 天的夜间检查点
  3. 每周检查点，保留 4 周

但是，您无法使用 UI 执行此作，因为 UI 允许每个计划最多两个规则。

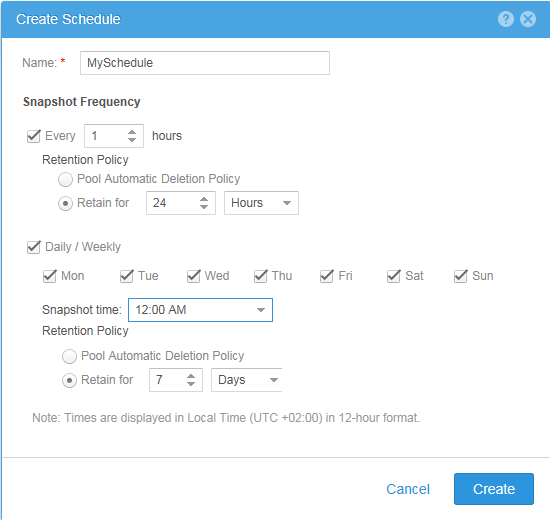

创建计划

#> uemcli -no /sys/task/sched -id snapSch_19 show
1:    ID    = snapSch_19
      Name  = MySchedule
      Type  = User
      Rules = SchedRule_93, SchedRule_94

#> uemcli -no /sys/task/rule -id SchedRule_93 show
1:    ID                = SchedRule_93
      Type              = HoursInterval
      Frequency         = Every 1h
      Keep for          = 1d
      Allow auto-delete = no
      Access            = Checkpoint

#> uemcli -no /sys/task/rule -id SchedRule_94 show
1:    ID                = SchedRule_94
      Type              = WeekDaysList
      Frequency         = Every Mon, Tue, Wed, Thu, Fri, Sat, Sun at 00:00
      Keep for          = 7d
      Allow auto-delete = no
      Access            = Checkpoint

并且最多可以为 LUN 分配一个计划，因此您无法满足要求。

但是，您可以使用 CLI 满足要求，因此在我们的示例中，我们使用 UI 创建了包含前两条规则的快照计划 （snapSch_19），然后通过以下命令使用 CLI 将第三条规则添加到计划中：

#> uemcli -no -u <username> -p <password> /sys/task/rule create -schedId snapSch_19 -type weekdayslist -days sat -at 12:00 -keepFor 31d -access ckpt

结果如下，符合我们的要求：

#> uemcli -no /sys/task/sched -id snapSch_19 show
1:    ID    = snapSch_19
      Name  = MySchedule
      Type  = User
      Rules = SchedRule_93, SchedRule_94, SchedRule_95

#> uemcli -no /sys/task/rule -id SchedRule_93 show
1:    ID                = SchedRule_93
      Type              = HoursInterval
      Frequency         = Every 1h
      Keep for          = 1d
      Allow auto-delete = no
      Access            = Checkpoint

#> uemcli -no /sys/task/rule -id SchedRule_94 show
1:    ID                = SchedRule_94
      Type              = WeekDaysList
      Frequency         = Every Mon, Tue, Wed, Thu, Fri, Sat, Sun at 00:00
      Keep for          = 7d
      Allow auto-delete = no
      Access            = Checkpoint

#> uemcli -no /sys/task/rule -id SchedRule_95 show
1:    ID                = SchedRule_95
      Type              = WeekDaysList
      Frequency         = Every Sat at 12:00
      Keep for          = 31d
      Allow auto-delete = no
      Access            = Checkpoint

我还能够在同一计划中添加更多规则，但 UI 仍然只能显示前两个规则！
