Avamar：SQL 备份已完成，但有错误或异常。

• 适用于 SQL Server 的 Windows 应用程序日志。

10/9/2013 10:33:24 PM MSSQLSERVER Error Backup  3041 NT AUTHORITY\SYSTEM RFSQL03 BACKUP failed to complete the command BACKUP DATABASE ASAP. Check the backup application log for detailed messages. 10/9/2013 10:33:24 PM MSSQLSERVER Error Server  18210 NT AUTHORITY\SYSTEM RFSQL03 BackupVirtualDeviceSet::SetBufferParms: Request large buffers failure on backup device '(local)_ASAP_db_sched-sql_backup-1381372200061#12-3006-SQL'. Operating system error 0x8007000e(Not enough storage is available to complete this operation.).

• Avamar SQL 日志

2013-12-17 22:08:23 avsql Error <9072>: sqlconnectimpl_smo::execute Microsoft.SqlServer.Management.Common.ExecutionFailureException: An exception occurred while executing a Transact-SQL statement or batch. ---> System.Data.SqlClient.SqlException: Write on "(local)_TMEngine_8PM-BACKUP-SQL-1387332000116#1-3006-SQL" failed: 112 (There is not enough space on the disk.)

• 下面列出的文件上发生不可恢复的 I/O 错误。

 "(local)_TMEngine_8PM-DATACAPAPP01-SQL-1387332000116#1-3006-SQL:" 995(The I/O operation has been aborted because of either a thread exit or an application request.).

BACKUP DATABASE is terminating abnormally.

在备份过程中观察到高内存和 CPU 使用率。发生上述故障是因为 avsql 尝试使用 SQLVDI 接口 API（共享或静态库）从 SQL Server 读取数据。在正常情况下，此过程假定在传输期间成功为分段共享分配内存。SQLVDI 接口上的数据传输失败，avsql 会记录一条消息，并在插件关闭过程中断开通往 avtar 的管道。第一步是通过运行以下 Transact-SQL （TSQL） 查询来验证 SQL 可用内存：

以下 TSQL 查询可检查总作系统内存和可用内存：

SELECT

(total_physical_memory_kb/1024) AS Total_OS_Memory_MB,

(available_physical_memory_kb/1024)  AS Available_OS_Memory_MB

FROM sys.dm_os_sys_memory;

下面是用于检查 SQL Server 在 Avamar 备份运行期间使用的内存的查询：

SELECT

(physical_memory_in_use_kb/1024) AS Memory_used_by_Sqlserver_MB,

(locked_page_allocations_kb/1024) AS Locked_pages_used_by_Sqlserver_MB,

(total_virtual_address_space_kb/1024) AS Total_VAS_in_MB,

process_physical_memory_low,

process_virtual_memory_low

FROM sys.dm_os_process_memory;

至少应有 20% 或更多的可用内存，以便 Avamar 备份正常运行。默认情况下，SQL Server 使用最多的可用内存资源。必须将其配置为限制为 SQL作分配的内存量，以确保最佳性能。

这些故障的其他已知原因是：

1. MAXTRANSFERSIZE 在 Avamar 7.0 中更改为 4 MB，即使在 maxtransfer 为 64 KB 的情况下，我们也会看到此故障：
   1. https://www.dell.com/community/en/conversations/avamar/avamar-sql-client-error-there-is-not-enough-space-on-the-disk/647f31b1f4ccf8a8de7de8cf
2. 此错误通常表示磁盘空间不足，特别是在恢复作期间。例如，记录的故障可能会显示：

 2024/05/01-18:25:39.60800 [avsql_t0]  ===> avsql_avtarpipe_ctl::wait
2024/05/01-18:25:39.60899 [sqlcommand restore(FxCentral)]  Caught Exception : Microsoft.SqlServer.Management.Common.ExecutionFailureException: An exception occurred while executing a Transact-SQL statement or batch. ---> System.Data.SqlClient.SqlException: There is insufficient free space on disk volume 'H:\' to create the database. The database requires 870622363648 additional free bytes, while only 140103278592 bytes are available

3. 根据 Pinal Dave （https://blog.sqlauthority.com/2016/04/14/sql-server-backup-randomly-failing-error-112-not-enough-space-disk/） （外部网站）
   1. 压缩数据库的 SQL 备份大小在开始时和结束时会有所不同，这种差异可能会导致此故障
4. 通过设置下面的 avsql 标记来更改 MAXTRANSFERSIZE 时，尤其是对于大型数据库备份，尤其如此

avsql flag : —max-transfer-size=65536

5. 在 avsql 报告连接故障后出现故障，如下面的代码片段所示：

2020-11-03 15:32:36 avsql Info <10684>: Setting ctl message version to 3 (from 1)
2020-11-03 15:32:36 avsql Info <16136>: Setting ctl max message size to 268435456
2020-11-03 15:32:38 avsql Info <6688>: Process 9540 (C:\Program Files\avs\bin\avtar) finished (code 536870920: cannot establish connection with server (possible network or DNS failure))
2020-11-03 15:32:38 avsql Warning <6690>: CTL workorder "NAH-1604435554526#1" non-zero exit status 'code 536870920: cannot establish connection with server (possible network or DNS failure)'
2020-11-03 15:32:38 avsql Info <7732>: Waiting for avtar to finish
2020-11-03 15:32:38 avsql Info <6444>: Plugin exited with 'code 536870920: cannot establish connection with server (possible network or DNS failure)'
2020-11-03 15:32:38 avsql Error <18491>: SQL plug-in will now terminate due to the following avtar error: 'code 536870920: cannot establish connection with server (possible network or DNS failure)'
2020-11-03 15:32:38 avsql Info <6446>: SQL VDI transfer of 'sql_111\spd/SPMonitoring/f-0.SPMonitoring' to 'sql_111_spd_SPMonitoring_NAH-1604435554526-3006-SQL' successful
2020-11-03 15:32:38 avsql Error <40258>: sqlconnectimpl_smo::execute Microsoft.SqlServer.Management.Common.ExecutionFailureException: An exception occurred while executing a Transact-SQL statement or batch. ---> System.Data.SqlClient.SqlException: Write on "lfosat993_csotspd_SPMonitoring_NAH-1604435554526-3006-SQL" failed: 112(There is not enough space on the disk.)

1. 1. 除了缓解这些症状之外，将“vditransfertimeoutsecs”设置为较大的值可避免 avtar 管道连接超时

使用以下方法之一在 MCGUI 数据集或 avsql.cmd 文件中添加标志：

• 方法#1 - 添加到数据集
  • 在 SQL 插件的数据集中添加以下标志。
  • NOTE: 两个标志都必须具有前导“[avsql]”

[avsql]max-transfer-size=65536
[avsql]vditransfertimeoutsecs=10800

• 方法#2 - 添加到avsql.cmd文件
  • 将以下标志添加到 C：\Program Files\avs\var\avsql.cmd 文件

--max-transfer-size=65536
--vditransfertimeoutsecs=10800

• • NOTE: 在某些情况下，大型虚拟机可能需要较大的超时标记值：

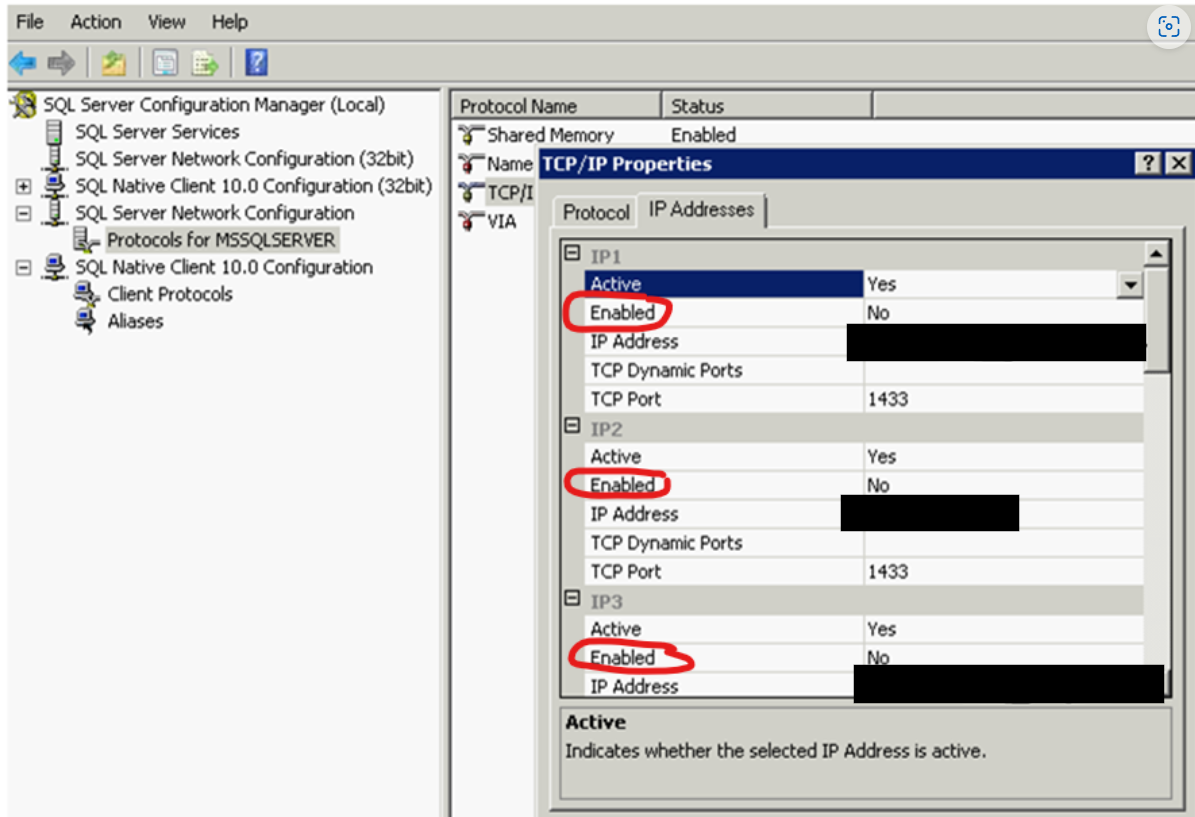

• 方法#3 - 从 Config Manager（已启用选项）禁用并重新启用协议“Shared Memory”、“Named Pipes”和“TCP/IP”。这需要重新启动 SQL Server：
