Chromebook 11 3180, Inspiron Chromebook 11 3181, and Chromebook 11 3181 2-In-1: Visual Guide to your Computer
Summary: This article is a visual guide to the external ports and features of the Dell Chromebook 11 3180, Inspiron Chromebook 11 3181, and Inspiron Chromebook 11 3181 2-In-1 laptop.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Table of Contents:
- Front View
- Top View
- Left View
- Right View
- AC Adapter View
- Links to Manuals - Provides more detailed description about each location and features.
Front View

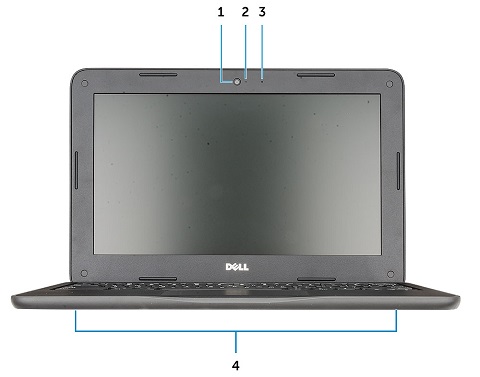

(Fig.1 Front View)
| 1 | Camera | 2 | Camera Status LED |
| 3 | Microphone | 4 | Speakers |
Top View
(Fig.2 Top View)
| 1 | Power Button | 2 | Touchpad |
Left View

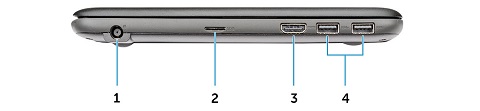

(Fig.3 Left-Hand Side View)
| 1 | DC Power Connector | 2 | microSD card reader slot |
| 3 | HDMI connector | 4 | USB 3.1 Gen 1 connector |
Right View

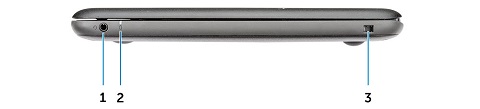

(Fig.4 Right-Hand Side View)
| 1 | Universal Audio Jack | 2 | Battery Status LED |
| 3 | Noble Wedge Lock Slot |
AC Adapter View
(Fig.5 65W AC Adapter)
| Type 65W E4 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
Cause
Not applicable
Resolution
Not applicable
Additional Information
Links to Manuals
- This link directs you to the Chromebook 11 3180 Online Manual's a Documents Page
- This link directs you to the Inspiron Chromebook 11 3181 Online Manual's and Documents Page
- This link directs you to the Inspiron Chromebook 11 3181 2-In-1 Online Manual's and Documents Page
Note: The external ports and features of the Chromebook 11 3180, Inspiron Chromebook 11 3181, and Inspiron Chromebook 11 3181 2-In-1 laptop are the same.
Affected Products
Chromebook 11 3180, Inspiron Chromebook 11 3181, Inspiron Chromebook 11 3181 2-in-1Article Properties
Article Number: 000123772
Article Type: Solution
Last Modified: 05 May 2025
Version: 6
